DHW Outlet (Ot) Temperature Sensor (8100P-016)
HX (Ht) Temperature Sensor (8100P-014)
Temperature (
o
F) Resistance (Ω)
-4 61353
5 48126
14 37979
23 30153
32 24085
41 19354
50 15645
59 12721
68 10403
77 8555
86 7075
95 5882
104 4915
113 4129
122 3485
131 2956
140 2518
149 2155
158 1852
167 1599
176 1385
185 1205
194 1052
203 921
212 847

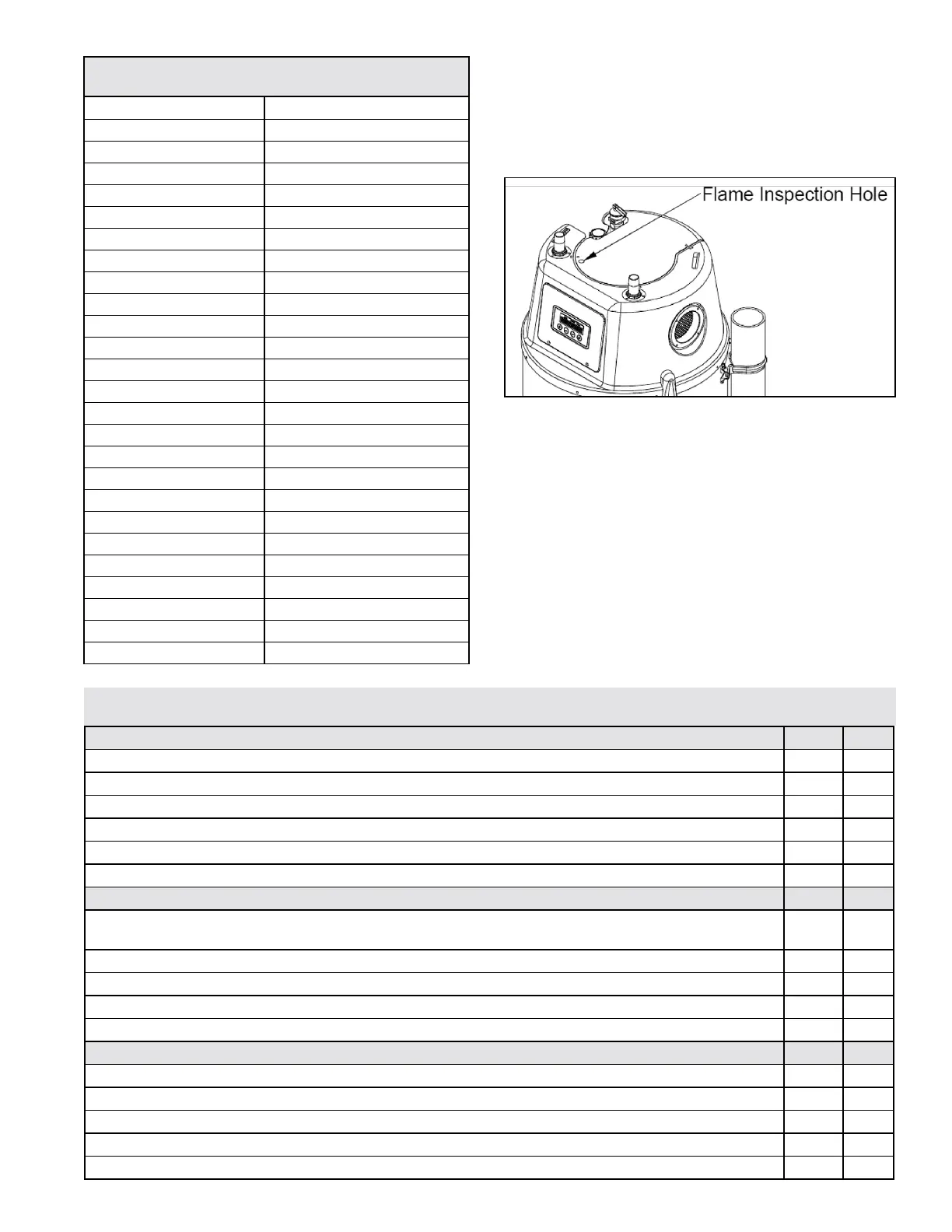

Table 30 - Temperature Sensor Resistance
Figure 47 - Flame Sight Glass
Part 11 - Installation Checklist
Before Installing Yes No
Is there enough space to ensure proper installation?
Does installation location allow for proper service clearances?
Are water and gas lines properly sized and set at proper pressures for the installation?
Is water heater location as near the exhaust vent / intake pipe terminations as possible?
Have combustible materials been cleared from the installation location?
Is there a drain close to the water heater?
Water Piping Yes No
Does water heater loop piping meet the minimum sizing requirements listed?
NOTE: Smaller piping will cause performance problems.
Has water chemistry been checked?
Does water chemistry meet requirements?
If water chemistry does not meet requirements, have treatment measures been put in place?
Has the system been cleaned and ushed?
Install Exhaust Vent and Intake Piping Yes No
Has the water heater been vented with the approved materials listed in this manual or to meet local codes?
Is air supply sucient for proper water heater operation?
Is total vent piping length within the maximum vent length restriction listed in this manual?
Have venting lengths been minimized?
Are terminations properly spaced from windows, doors, and other intake vents?
