LP-179 Rev. 6.7.16
30
LP-179-BB
R/R 001/000 11/26/14

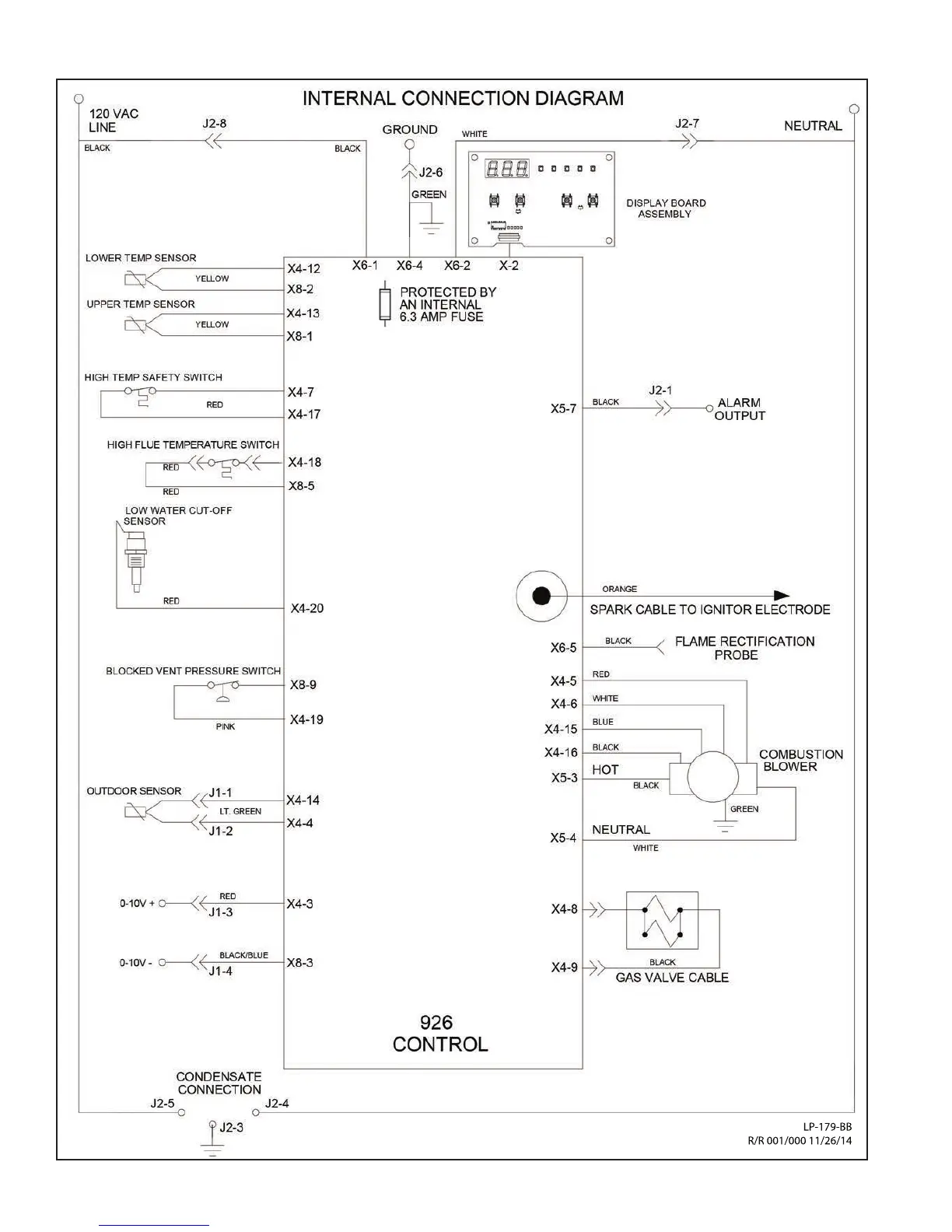

Figure 24 - Internal Wiring Diagram
F. Internal Wiring Diagram
