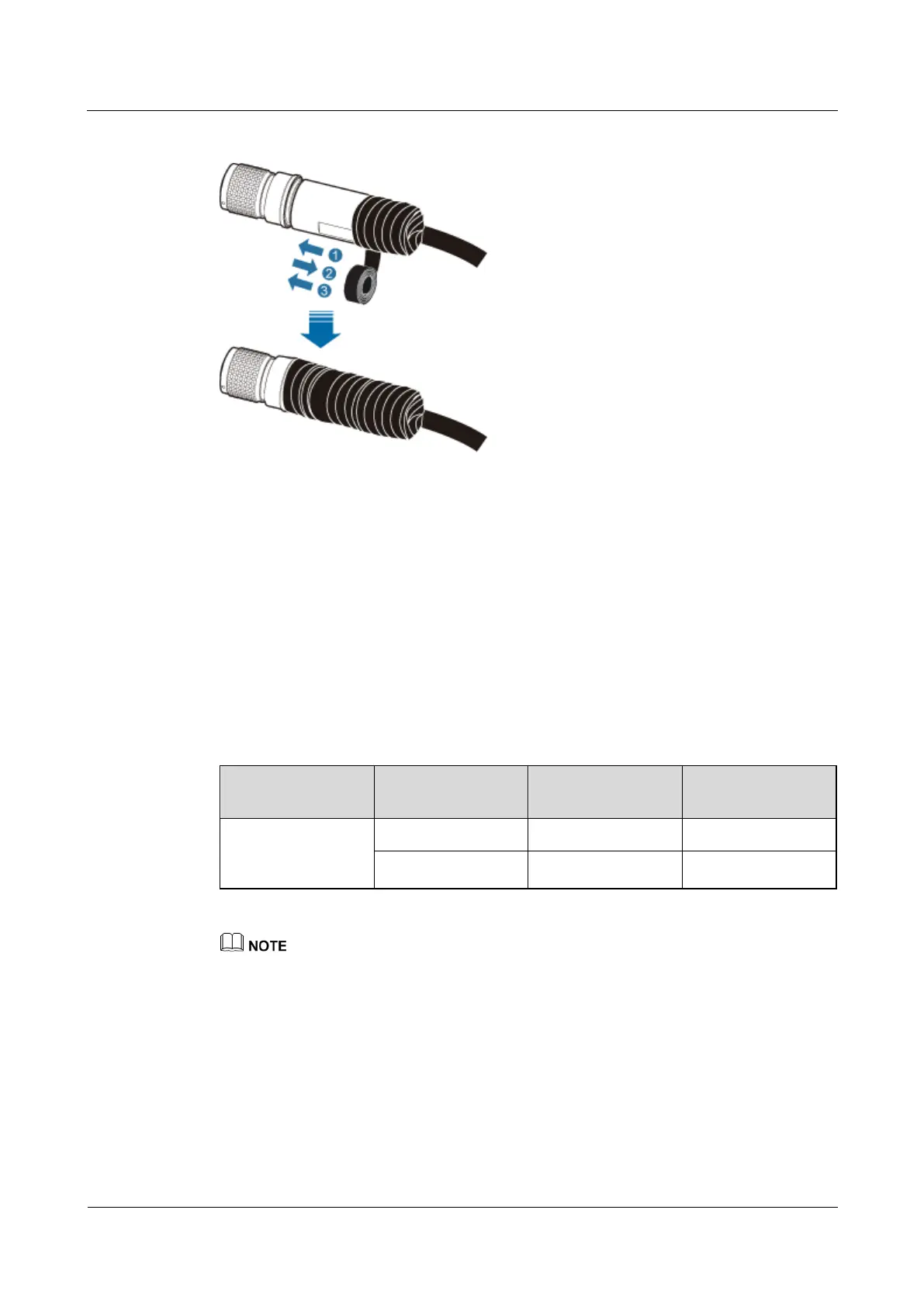

Figure 5-10 Wrapping PVC insulation tape
----End
5.1.2.2 Assembling a DC 2-Pin Round Connector (B)
This topic describes how to assemble a DC 2-pin round connector (B) and key operations.
Context
Table 5-1 lists power cables connected to the active antenna unit (AAU).
Table 5-1 AAU power cable
DC round
waterproof
connector
The color and appearance of cables in this topic are for reference only. The cable color and appearance
vary depending on countries and regions.
Figure 5-11 shows components of the DC round waterproof connector.
