5.1.2.3 Assembling the OT Terminal and Power Cable
Context

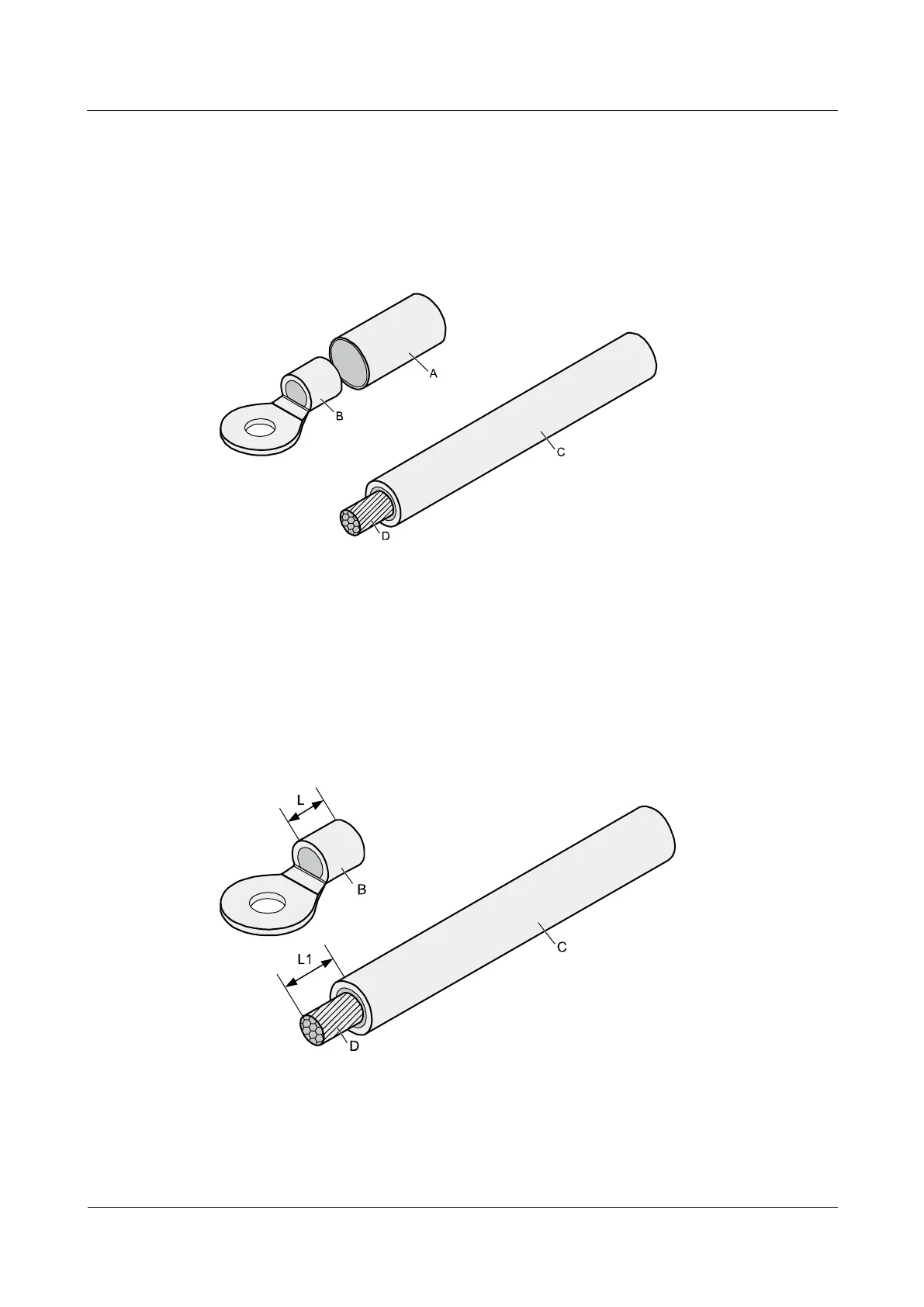

Figure 5-22 shows the components of an OT terminal and a power cable.
Figure 5-22 Components of an OT terminal and a power cable
A. Heat-shrinkable tubing
B. Bare crimping terminal
Procedure
Step 1 Based on the cross-sectional area of the cable conductor, strip a length of insulation coating C
to expose the conductor D of length L1, as shown in Figure 5-23. The recommended values of
L1 are listed in Table 5-2.
Figure 5-23 Stripping a power cable (OT terminal)
