3.1
RRU Exterior

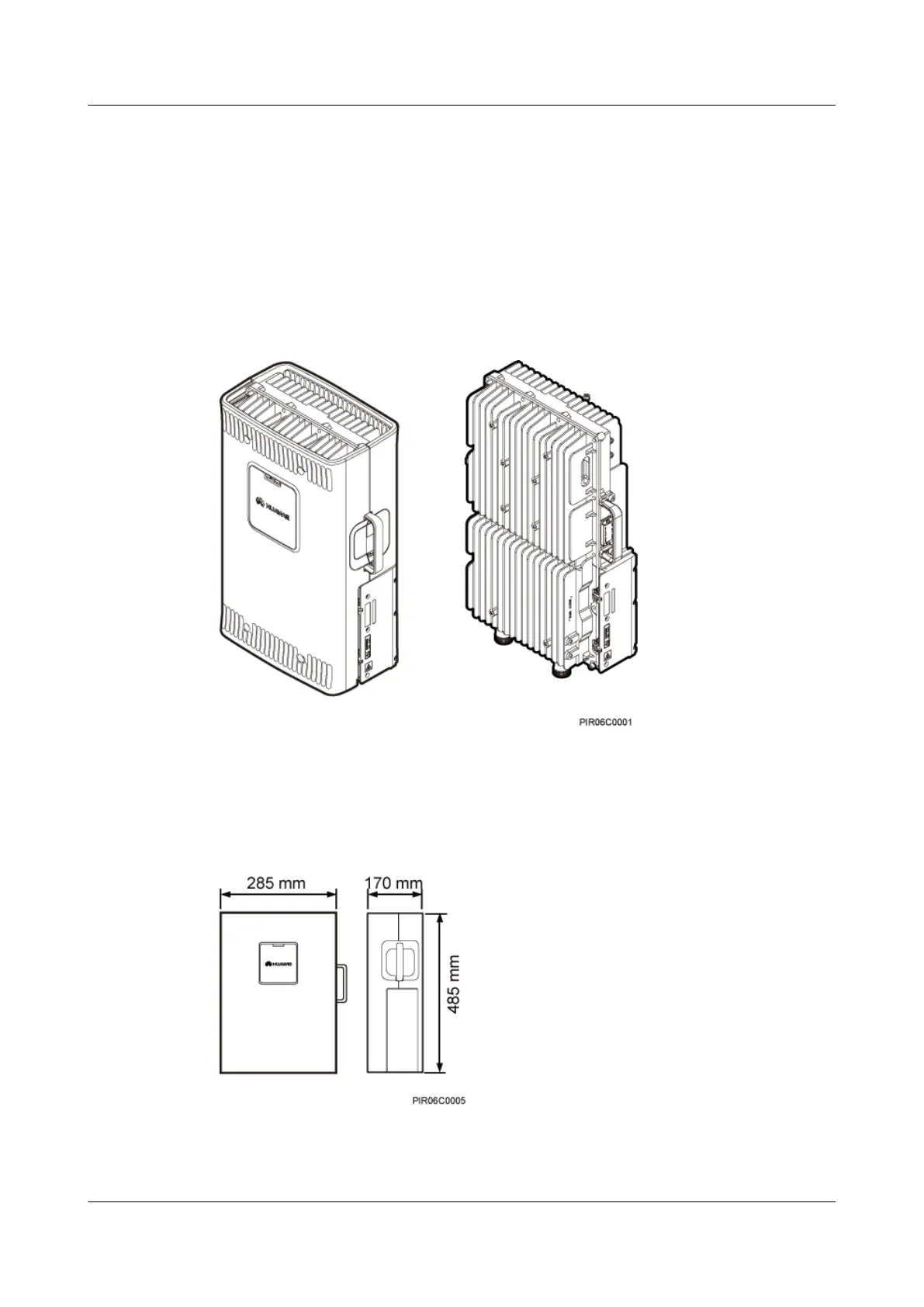

This section describes the exterior and dimensions of an RRU.
Figure 3-1
shows an RRU.
The RRU on the left has a housing, and the RRU on the right does not have a housing.
Figure 3-1
RRU exterior
Figure 3-2
shows RRU dimensions.
Figure 3-2
RRU dimensions
RRU3201
Installation Guide
3 Information About the Installation
Issue 06 (2012-04-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
15
17
Table of Contents
About this Document
3
Table of Contents
7
1 Changes in the RRU3201 Installation Guide
9
2 Installation Preparations
12
Reference Documents
13
Tools and Instruments
13
Skills and Requirements for Onsite Personnel
14
3 Information about the Installation
15
RRU Exterior
16
RRU Ports
17
RRU Indicators
18
Installation Options
20
Installation Clearance Requirements of an RRU
24
Installation Clearance for a Single RRU
25
Installation Clearance for Multiple Rrus
26
Installation Spacing between Rrus
29
4 Unpacking the Equipment
33
5 Installation Process
35
6 Hoisting an RRU and Related Cables Onto a Tower
36
Hoisting an RRU Onto a Tower
37
Hoisting Fiber Optic Cables Onto a Tower
40
Hoisting Power Cables Onto a Tower
43
7 Installing the RRU
45
Mounting Kits for an RRU
46
Installing the RRU on a Pole
46
Installing a Single RRU
49
Installing Two Rrus
51
Installing Multiple Rrus
54
Installing the RRU on U-Steel
57
Installing the RRU on Angle Steel
61
Installing the RRU on a Wall
64
8 Installing RRU Cables
69
Cabling Requirements
70
Cable Connections
75
Installation Process
76
RRU Cable List
77
Installing an RRU PGND Cable
78
Installing an RRU RF Jumper
79
Installing an RRU AISG Multi-Wire Cable and AISG Extension Cable
82
Opening the Cover Plate of an RRU Cabling Cavity
84
Installing an RRU Power Cable
86
Installing a CPRI Fiber Optic Cable
88
Closing the Cover Plate of an RRU Cabling Cavity
90
9 Checking the RRU Hardware Installation
92
10 Powering on an RRU
93
11 Appendix
94
Adding OT Terminals to the RRU Power Cable on the RRU Side
95
Other manuals for Huawei RRU3201
