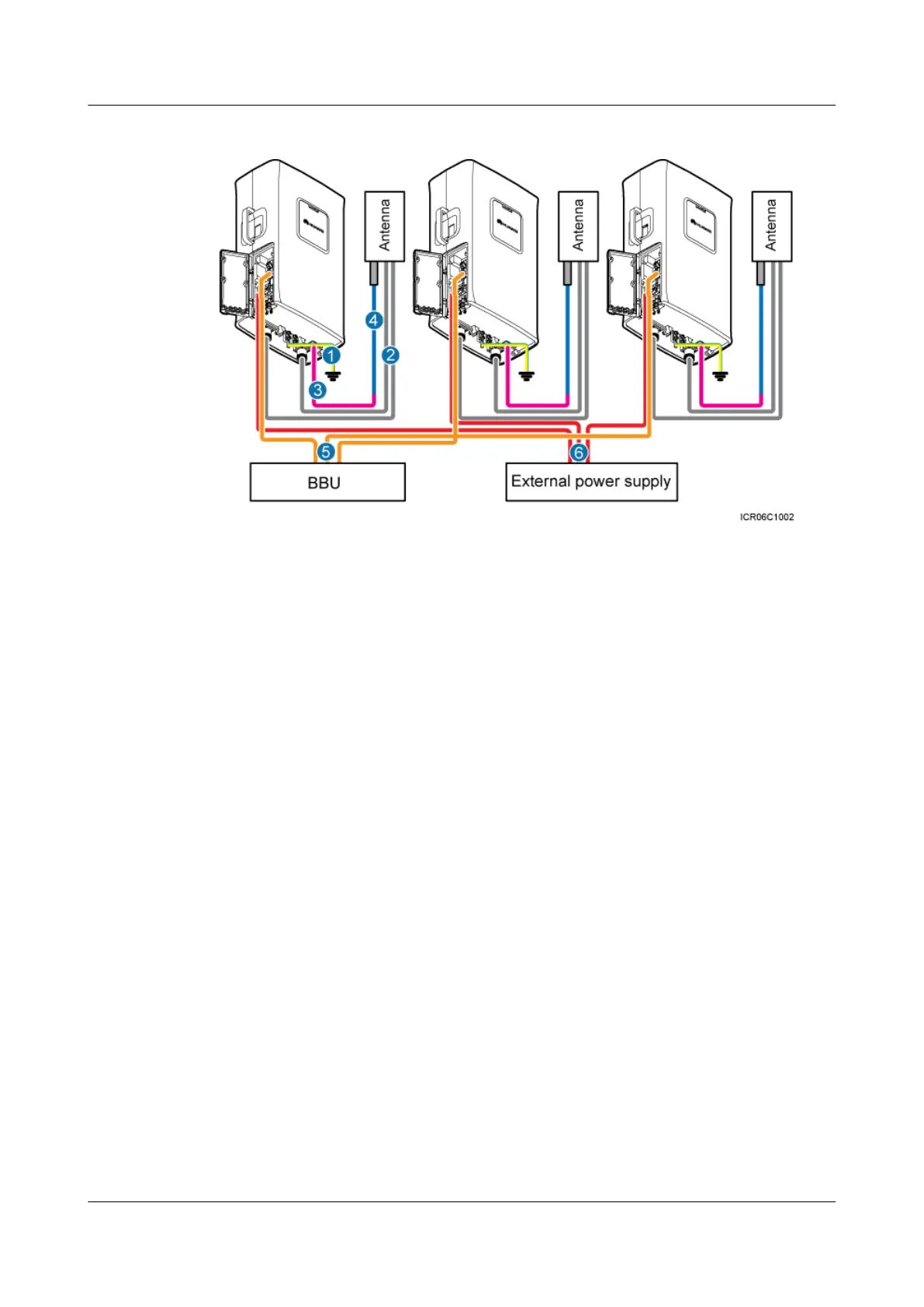

Figure 8-4 Cable connections for multiple RRUs
(1) PGND cable (2) RRU RF jumper (3) RRU AISG multi-wire cable
(4) RRU AISG extension cable (5) CPRI fiber optic cable (6) RRU power cable
8.3 Installation Process
This section describes the process of installing RRU cables.
Figure 8-5 shows the process of installing RRU cables.
RRU3201
Installation Guide 8 Installing RRU Cables
