11.1 Adding OT Terminals to the RRU Power Cable on the
RRU Side
This section describes the procedure for adding OT terminals to the RRU power cable on the
RRU side.
Context

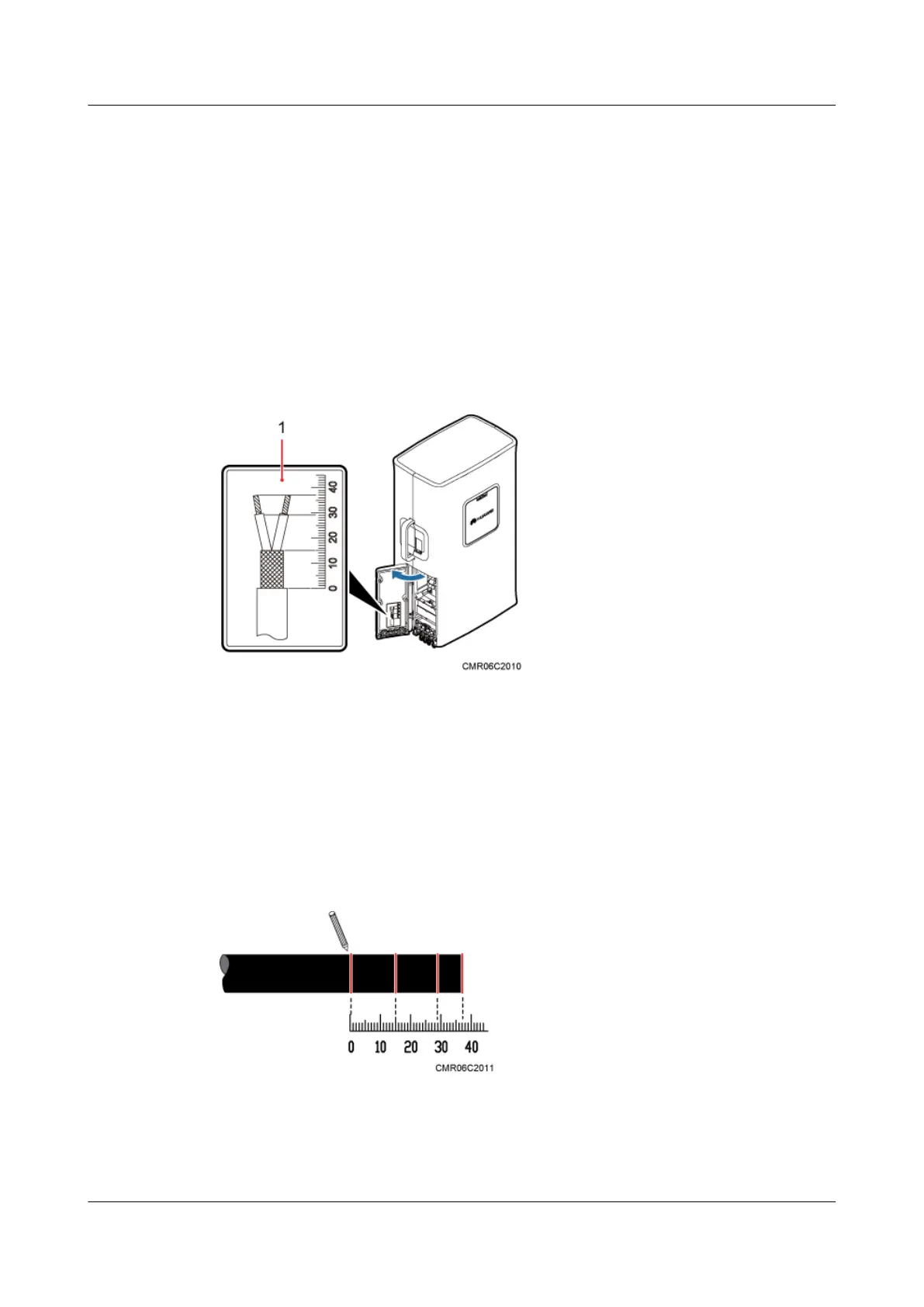

Figure 11-1 shows the cable diagram on labels.
Figure 11-1 Cable diagram on labels
(1) Cable diagram on labels
Procedure
Step 1 Determine the length of the power cable for different operations based on the labels, as shown
in Figure 11-2.
Figure 11-2 Determining the length of the power cable
Step 2 Strip the specified length of the sheath and shield layer off the power cable, as shown in Figure
11-3.
RRU3201
Installation Guide 11 Appendix
Issue 06 (2012-04-16) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
87
