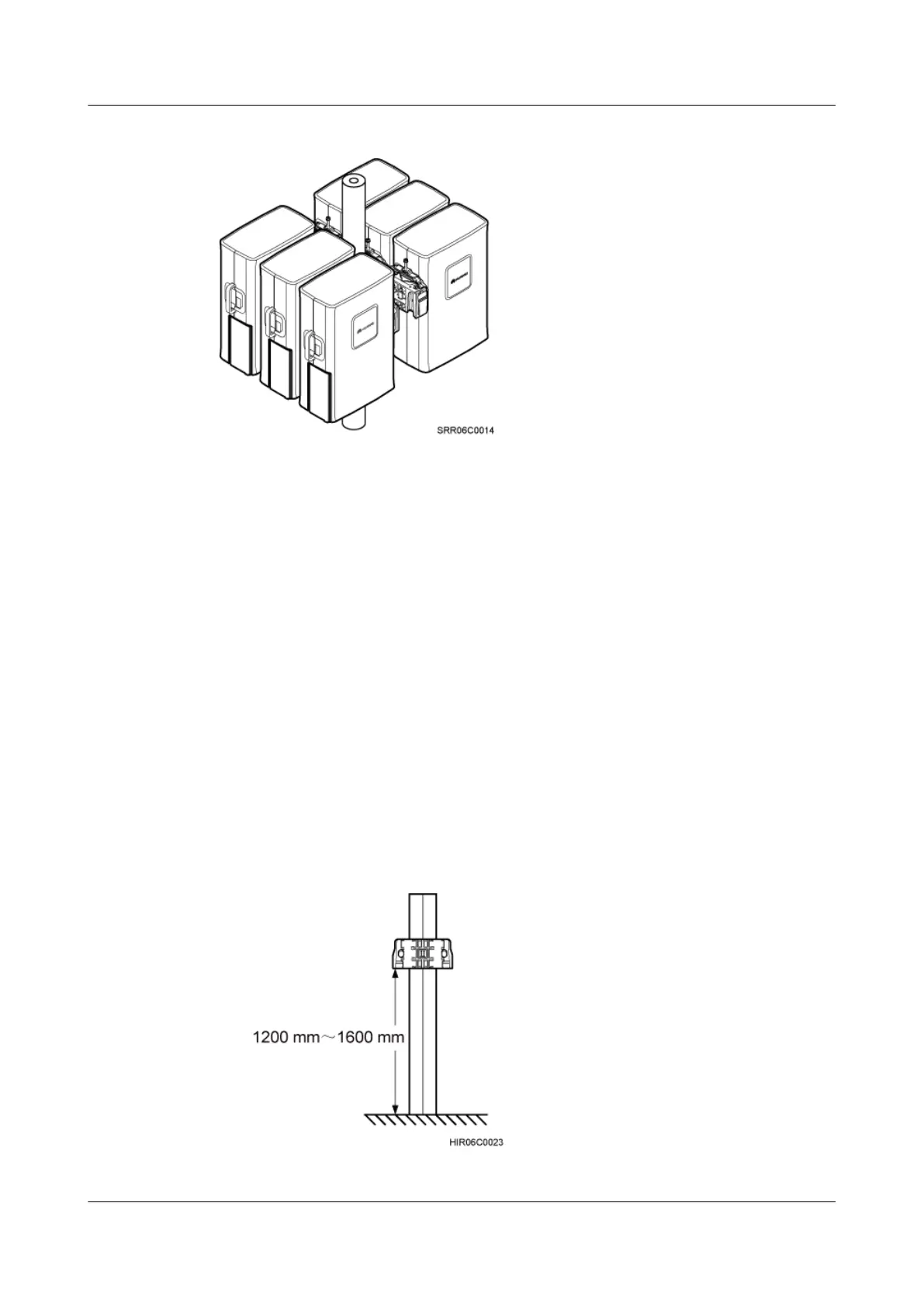

Figure 7-7 Six RRUs installed on a pole in centralized mode
7.2.1 Installing a Single RRU
This section describes the procedure for installing a single RRU on a pole and the precautions
that must be taken during the installation.
Prerequisites
Before you install an RRU on a tower, the RRU and mounting kits are hoisted onto the tower.
For details, see 6.1 Hoisting an RRU onto a Tower.
The hoist clamp on the main mounting bracket is secured properly.
Procedure
Step 1 Determine a position for installing the main mounting bracket.
l If the RRU must be installed on a tower, see 3.5.1 Installation Clearance for a Single
RRU to determine a position.
l If the RRU must be installed on the ground, see Figure 7-8 to determine a position.
Figure 7-8 Distance between the main mounting bracket and the ground
RRU3201
Installation Guide 7 Installing the RRU
