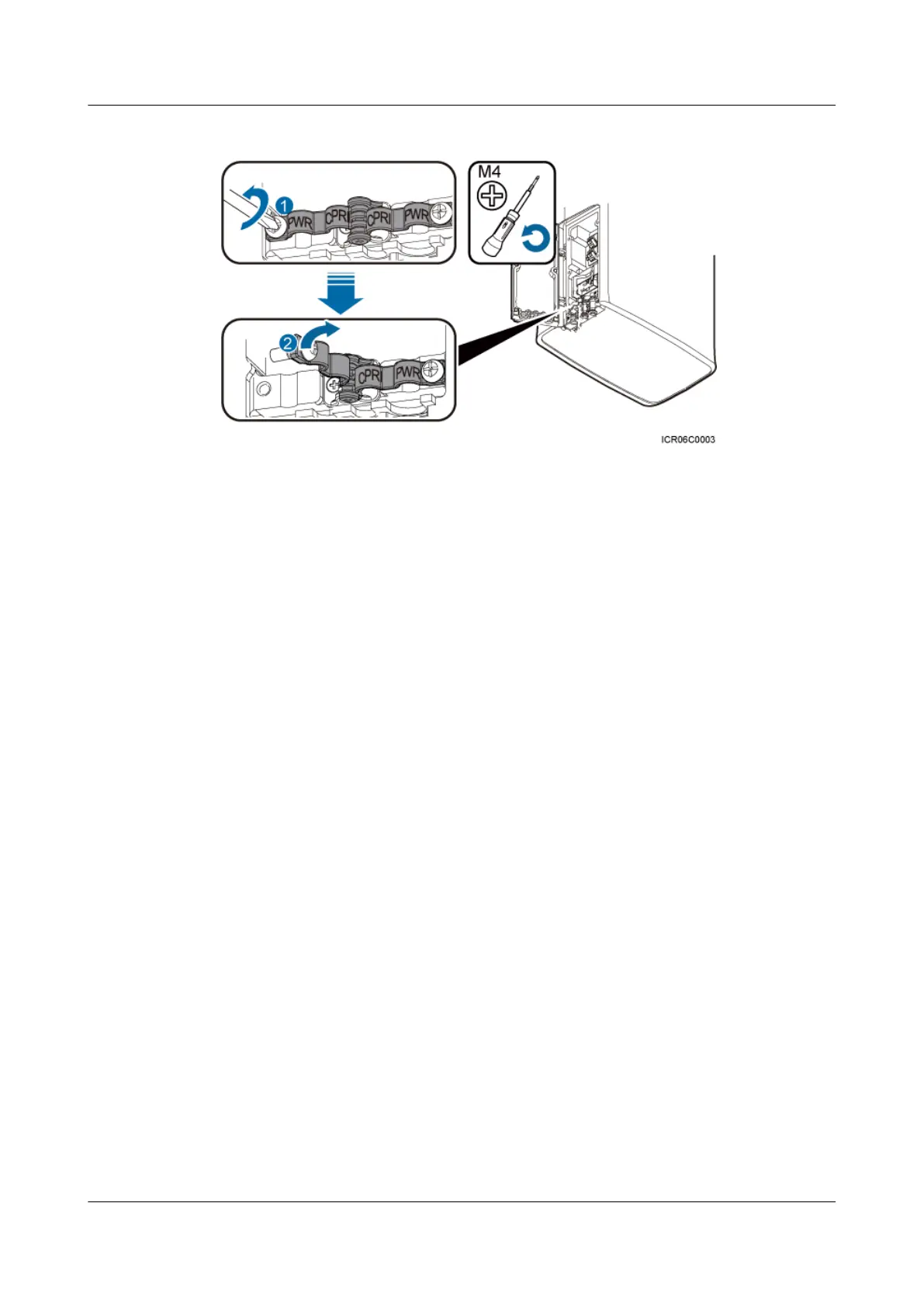

Figure 8-16 Opening clips
----End
8.9 Installing an RRU power cable
This section describes the procedure for installing an RRU power cable.
Prerequisites
l OT terminals are added to the RRU power cable on the RRU side. For details, see 11.1
Adding OT Terminals to the RRU Power Cable on the RRU Side.
l A connector or OT terminals are added to the RRU power cable on the power device side.
For details, see the DBS3900 Installation Guide.
Context
There are two types of RRU power cables in terms of cross-sectional areas: 3.3 mm
2
(0.005 in.
2
) (12 AWG) complying with North American standards and 4 mm
2
(0.006 in.
2
) complying with
European standards.
Procedure
l Install an RRU power cable that feeds power to an RRU from a DCDU when the DCDU
is configured.
1. Connect the OT terminals of the blue and black/brown core wires at one end of the
RRU power cable to the NEG(-) and RTN(+) wiring terminals on the RRU cabling
cavity respectively, as shown in Figure 8-17.
RRU3201
Installation Guide 8 Installing RRU Cables
Issue 06 (2012-04-16) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
78
