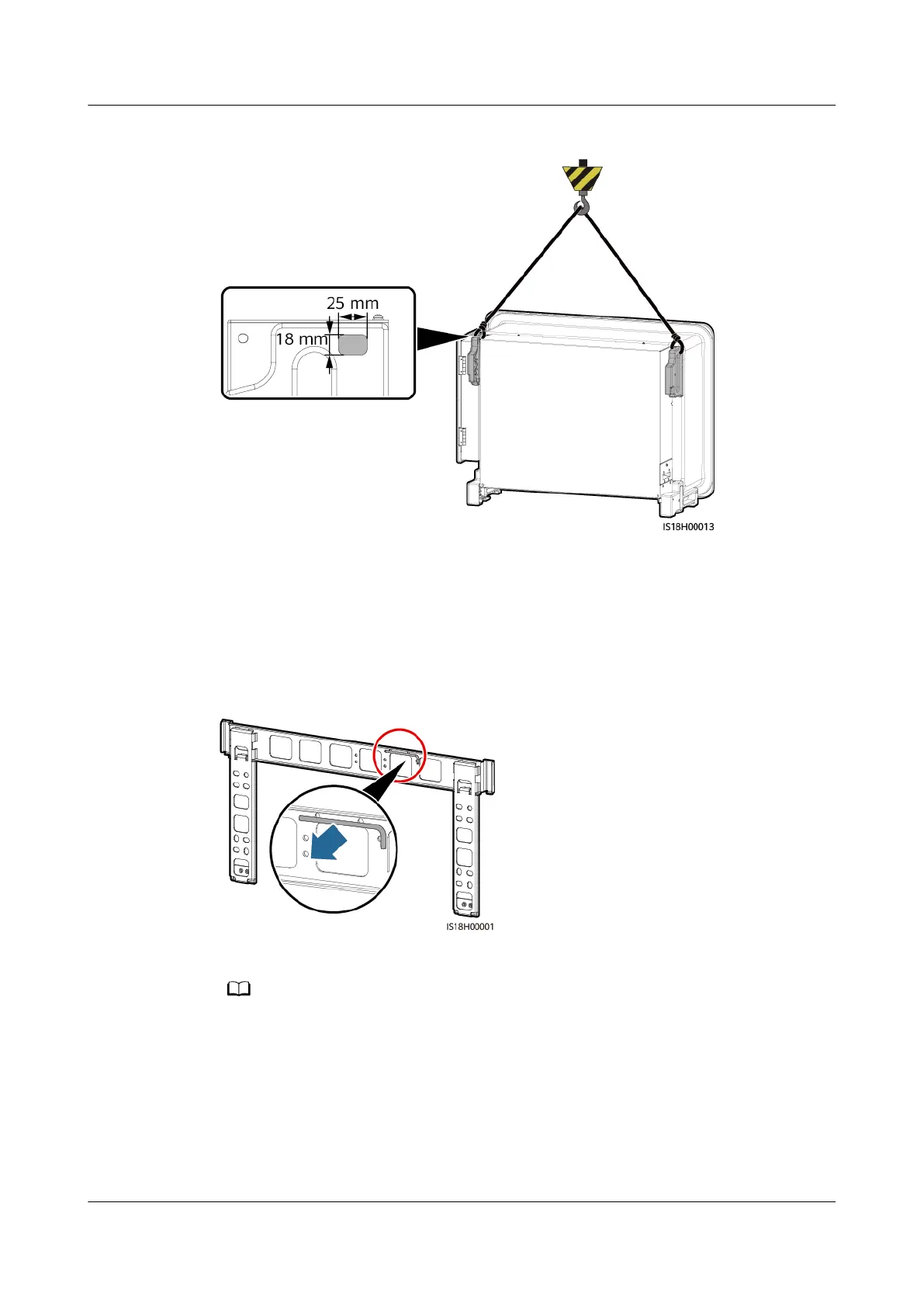

Figure 4-12 Hoisting
----End
4.6 Installing the SUN2000 on a Support
Step 1 Remove the torx key and store it properly.
Figure 4-13 Removing the torx key
Step 2 Secure the mounting bracket.
● The mounting bracket of the SUN2000 has four groups of tapped holes, each group
containing four tapped holes. Mark any hole in each group based on site requirements
and mark four holes in total. The two round holes are recommended.
● M12x40 bolt assemblies are delivered with the SUN2000 and bound to the mounting
bracket. If the bolt length does not meet the installation requirements, prepare M12
bolt assemblies by yourself and use them together with the delivered M12 nuts.
SUN2000-(250KTL, 280KTL, 300KTL, 330KTL) Series
User Manual 4 Installation
Issue 07 (2023-06-30) Copyright © Huawei Technologies Co., Ltd. 38
