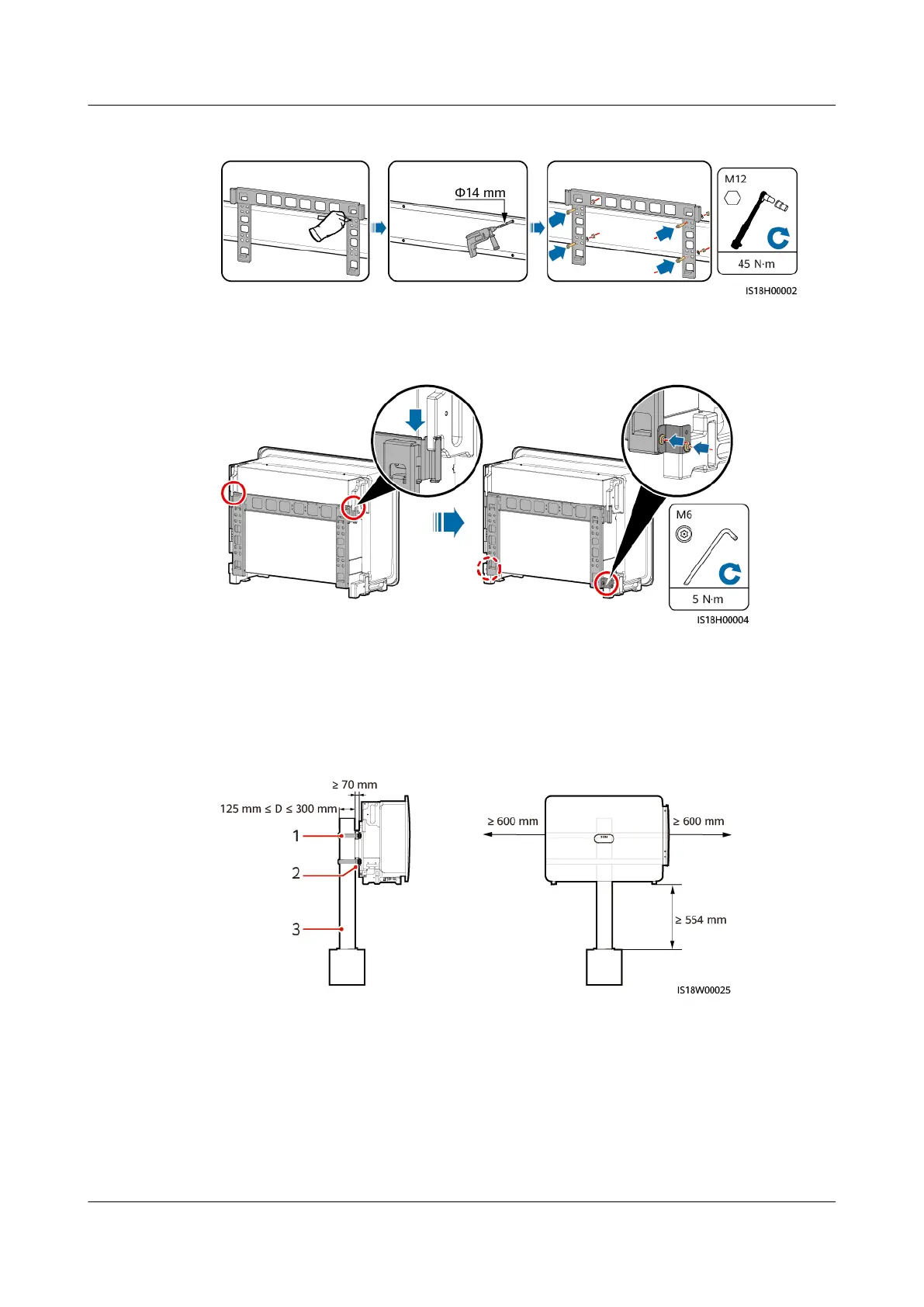

Figure 4-14 Installing the mounting bracket
Step 3 Secure the SUN2000.
Figure 4-15 Securing the SUN2000
----End
4.7 Installing the SUN2000 on a Pole Clamp
Figure 4-16 Pole-clamp installation
(1) Square bolt clamp
(2) Inverter mounting beam (3) Vertical pole
SUN2000-(250KTL, 280KTL, 300KTL, 330KTL) Series
User Manual 4 Installation
Issue 07 (2023-06-30) Copyright © Huawei Technologies Co., Ltd. 39
