● It is recommended that the SUN2000 be connected to a nearby ground point.
For a system with multiple SUN2000s connected in parallel, connect the
ground points of all SUN2000s to ensure equipotential connections to PE
cables.
Procedure
Step 1 Connect the PE cable to the ground point. To enhance the corrosion resistance of a
ground terminal, apply silicone grease or paint on it after connecting the PE cable.

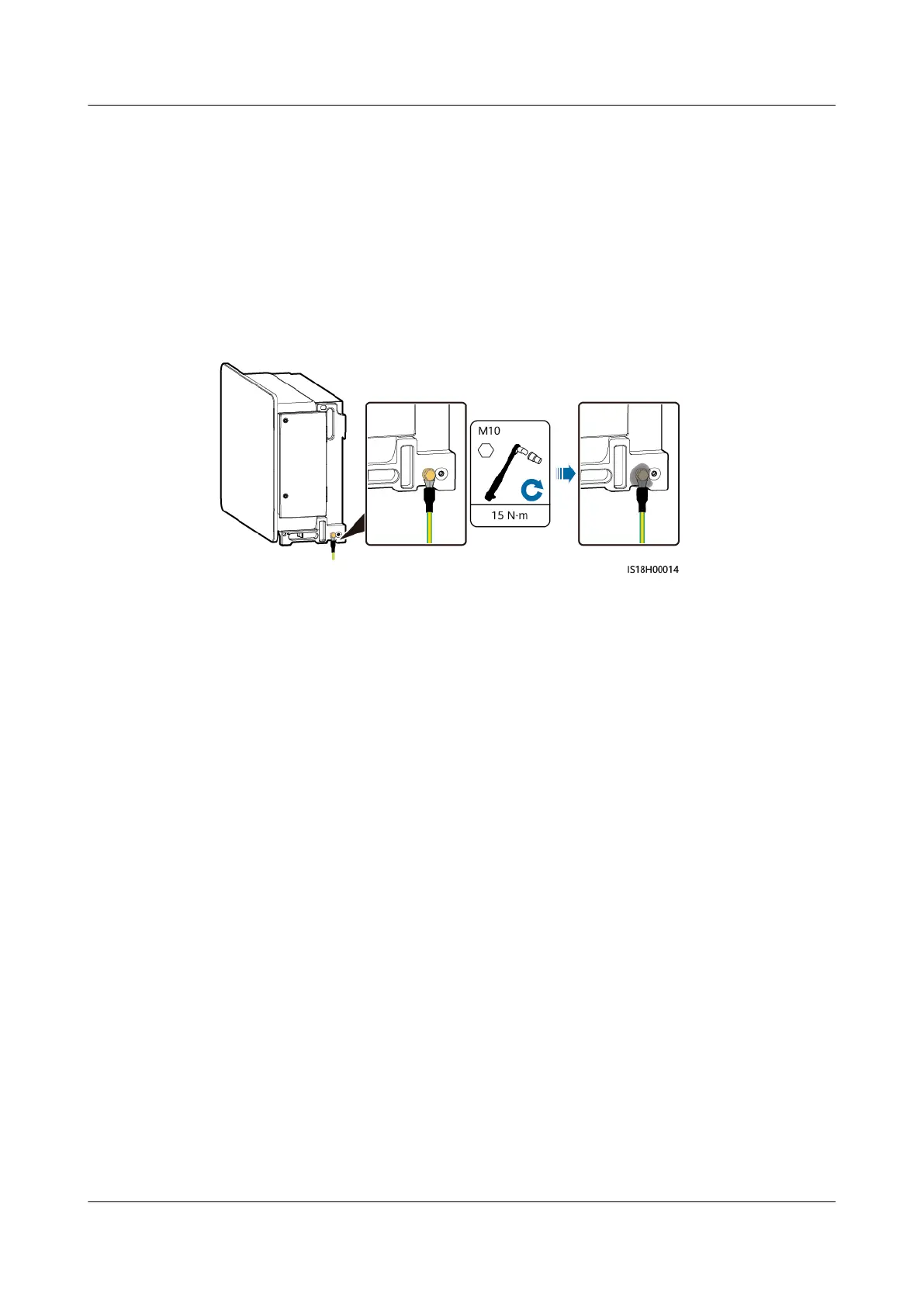

Figure 5-2 Connecting a PE cable to the ground point (on the enclosure)
----End
5.4 Connecting an AC Output Power Cable
Precautions
● A three-phase AC switch should be installed on the AC side of the SUN2000.
To ensure that the SUN2000 can safely disconnect itself from the power grid
when an exception occurs, select a proper overcurrent protection device in
compliance with local power distribution regulations.
● The SUN2000 is integrated with a comprehensive residual current detection
unit to distinguish fault current from residual current. Upon detecting that the
residual current exceeds the threshold, the SUN2000 immediately disconnects
from the power grid.
SUN2000-(250KTL, 280KTL, 300KTL, 330KTL) Series
User Manual 5 Electrical Connections
Issue 07 (2023-06-30) Copyright © Huawei Technologies Co., Ltd. 45
To Next Page
