Huawei SUN2000-40KTL-M3 User Manual

E NS Protection
Connecting the Inverter to the NS Protection Signal Cable
NO TE
● The NS protection function applies to areas in compliance with the VDE4105 standard,
and the grid code needs to be set to VDE-AR-N-4105.
● The NS protection switch is connected to GND (pin 13) at one end and to DIN5 (pin 15)
at the other end. The switch is turned o by default. When the switch is turned on, NS
protection is triggered.
● Rapid shutdown and NS protection use the same pins, which are GND (pin 13) and
DIN5 (pin 15). Therefore, you can use only one of the functions.
● The NS protection switch connection is the same for a single inverter and for cascaded
inverters.
● Log in to the FusionSolar App as an installer, choose Me > Device Commissioning, and
connect to the WLAN hotspot of the SUN2000. Log in to the local commissioning
system as an installer user, choose Settings > Feature parameters > Dry contact
function, and set Dry contact function to NS protection.

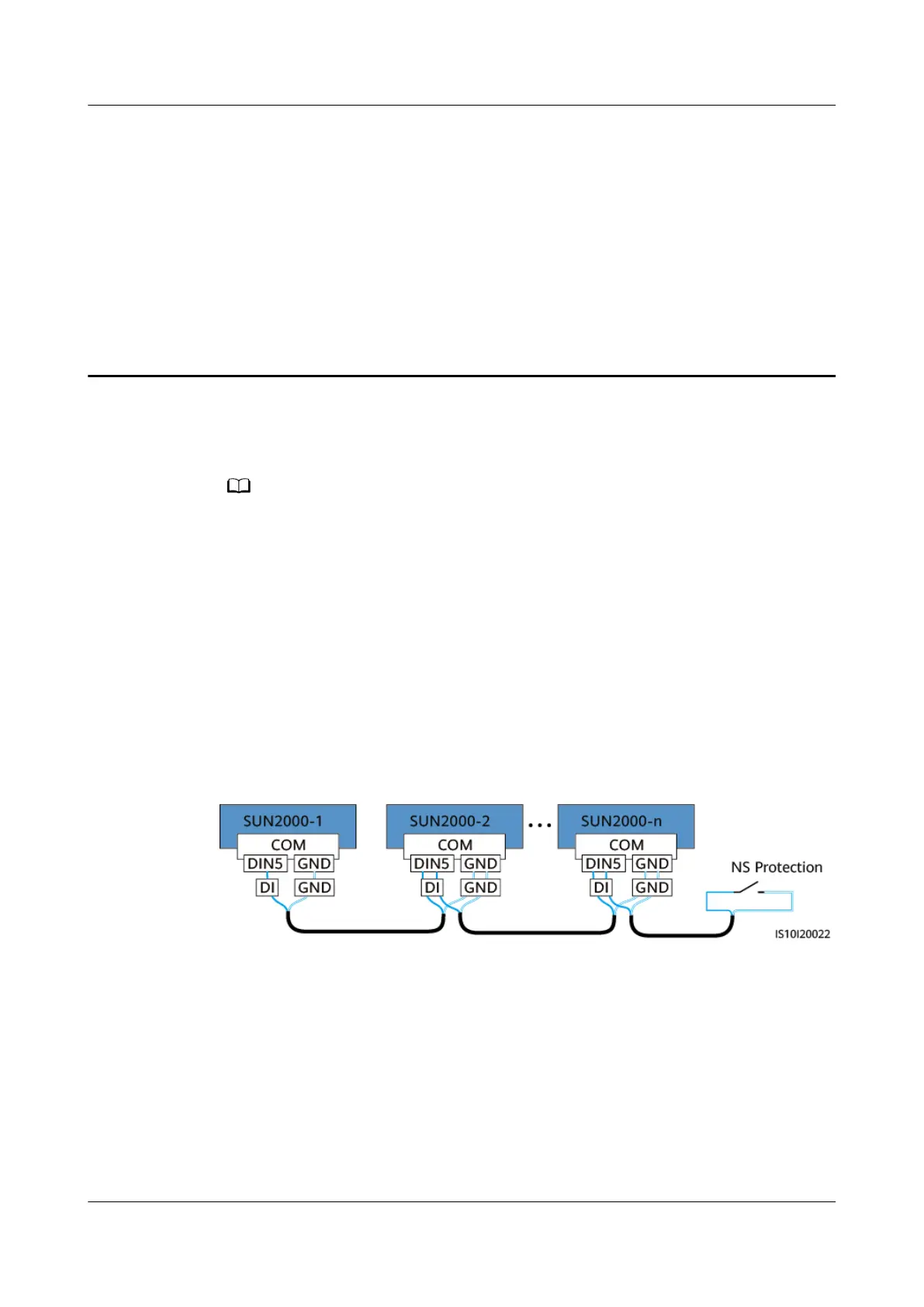

Figure E-1 Connecting cascaded inverters to the NS protection switch
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual E NS Protection
Issue 18 (2024-03-10) Copyright © Huawei Technologies Co., Ltd. 116

Huawei SUN2000-40KTL-M3 Specifications

General

Max. Efficiency	98.7%
European Efficiency	98.4%
Max. Input Voltage	1100 V
MPPT Operating Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of MPPTs	4
Rated Output Power	40000 W
Rated AC Voltage	400 V
Rated AC Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Reverse-Polarity Protection	Yes
AC Overcurrent Protection	Yes
DC Surge Protection	Type II
AC Surge Protection	Type II
Insulation Monitoring	Yes
Residual Current Monitoring	Yes
DC Switch	Yes
Protection Class	IP66
Operating Temperature Range	-25°C to +60°C
Relative Humidity (Operating)	0% - 100%
Cooling	Natural Convection
Max. Apparent AC Power	44000 VA
AC Voltage Range	320 V - 480 V
Operating Altitude	4000 m
Display	LED Indicators
Communication	RS485, WLAN
Weight	43 kg
Max. DC Power	60000 W
