Huawei UPS2000-A Series - Working Principle; Conceptual Diagram

UPS2000-A-(6 kVA-10 kVA)
User Manual
2 Overview
Issue 05 (2019-12-19)
Copyright © Huawei Technologies Co., Ltd.
16
Model
Represented By
Remarks
UPS2000-A-10KTTL-P
10 kVA
professional
version with long
backup time

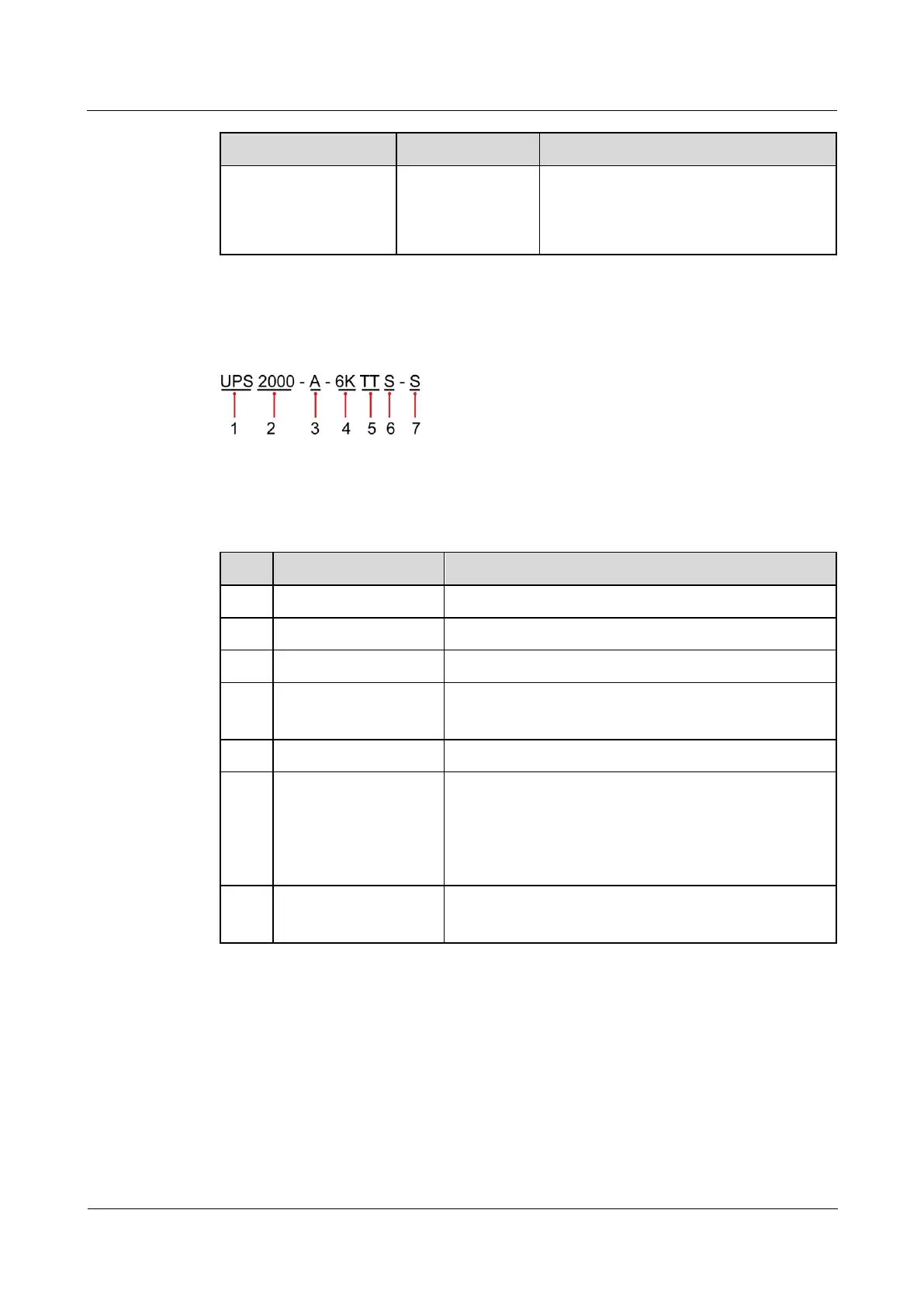

Figure 2-1 shows a UPS model number.
Figure 2-1 UPS model number
Table 2-1 describes the UPS model number.
Table 2-1 UPS model number details
No.
Meaning
Description
1
Product category
UPS, short for uninterruptible power system
2
Product series
2000
3
UPS subcategory
A series
4
Output capacity
Unit: VA

6K: 6 kVA

10K: 10 kVA
5
UPS type
TT: tower-mounted UPS
6
Standard/Long backup
time model

S: standard backup time model, using built-in
batteries that provide standard backup time.

L: long backup time model, using external
large-capacity batteries that provide long backup
time.
7
Standard/Professional
standard

S: standard version

P: professional version
2.2 Working Principle
2.2.1 Conceptual Diagram
Figure 2-2 shows the UPS conceptual diagram.
