UPS2000-A-(6 kVA-10 kVA)
User Manual
Copyright © Huawei Technologies Co., Ltd.

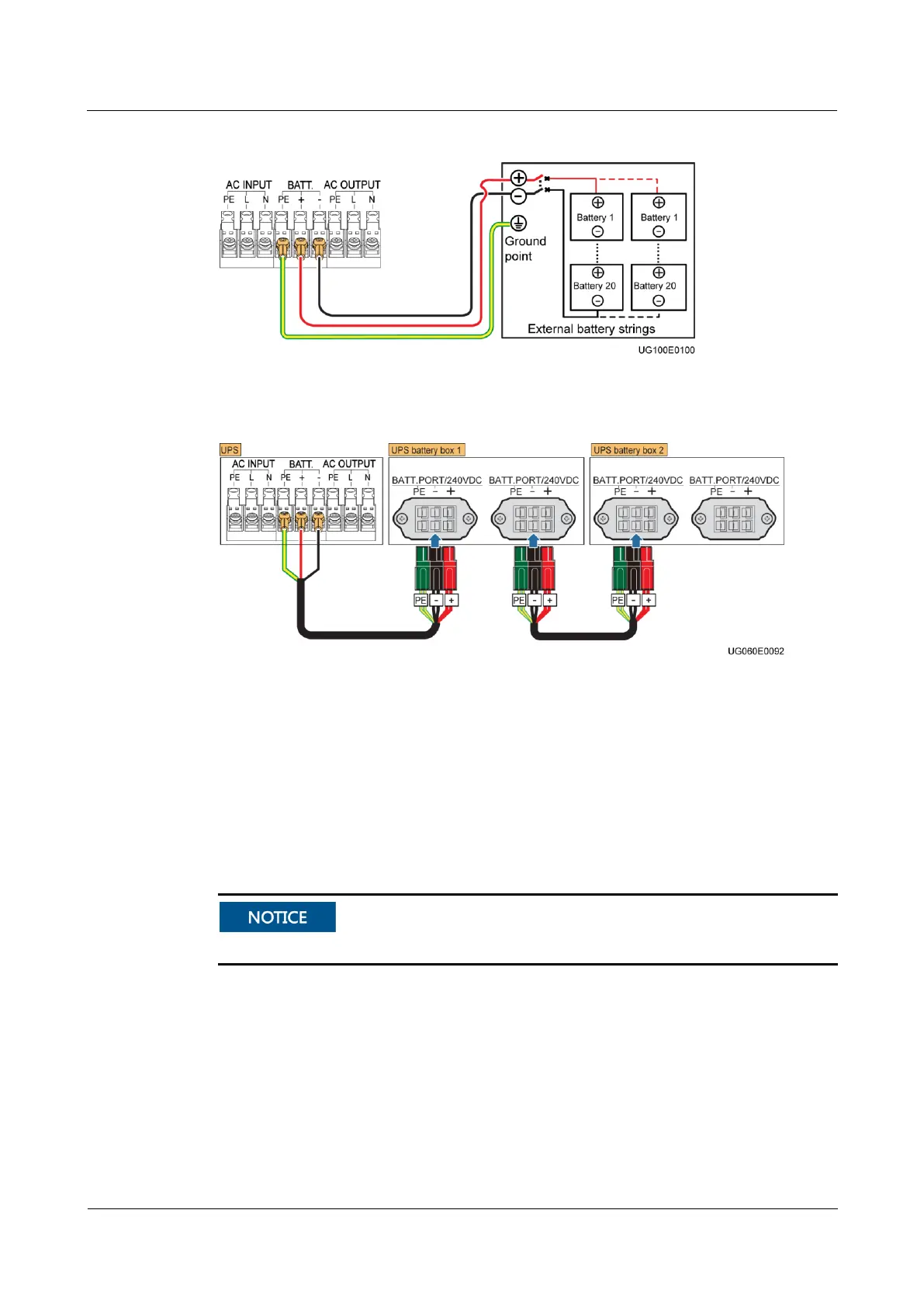

Figure 3-17 Connecting cables to external battery strings
Figure 3-18 Connecting cables to external battery boxes
Step 6 Reinstall the AC input, output, and battery wiring cover on the UPS.
----End
3.3 Parallel System Installation
Only UPSs of the professional version support the parallel feature.
3.3.1 Routing Cables
Determine the installation positions and route cables. Battery boxes can be configured for a
UPS with long backup time. Figure 3-19 and Figure 3-20 use a UPS professional version with
long backup time as an example to illustrate how to route cables. Route cables in other
scenarios similarly.
