UPS2000-A-(6 kVA-10 kVA)
User Manual
Copyright © Huawei Technologies Co., Ltd.

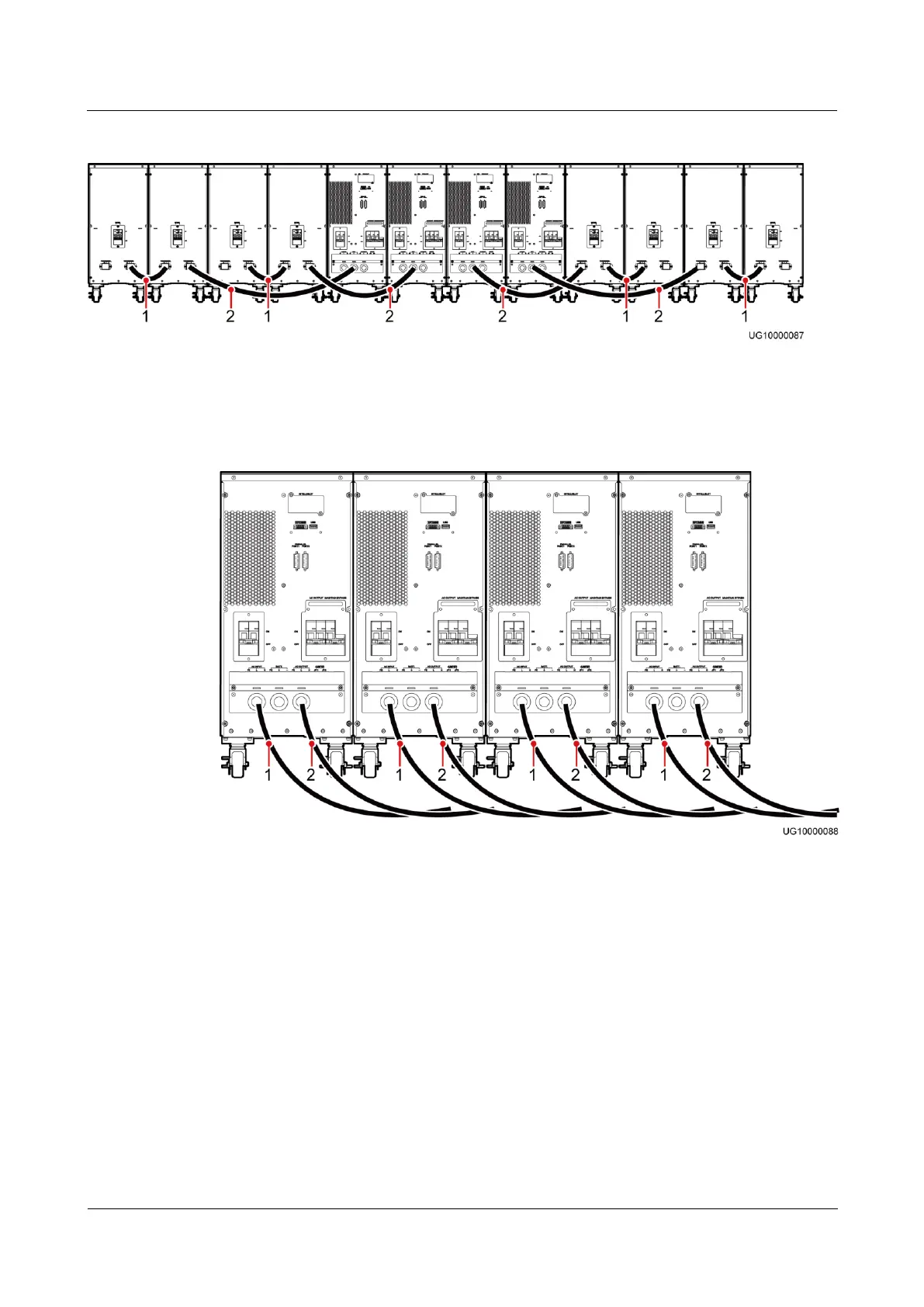

Figure 3-19 Routing battery cables
(1) Cable between battery boxes
(2) Cable between the battery box and the UPS
Figure 3-20 Routing input and output cables
(2) AC output power cable
3.3.2 Securing UPSs in a Parallel System
Procedure
Step 1 Secure each UPS in a parallel system by following the instructions provided in 3.2.2 Securing
a UPS.
----End
