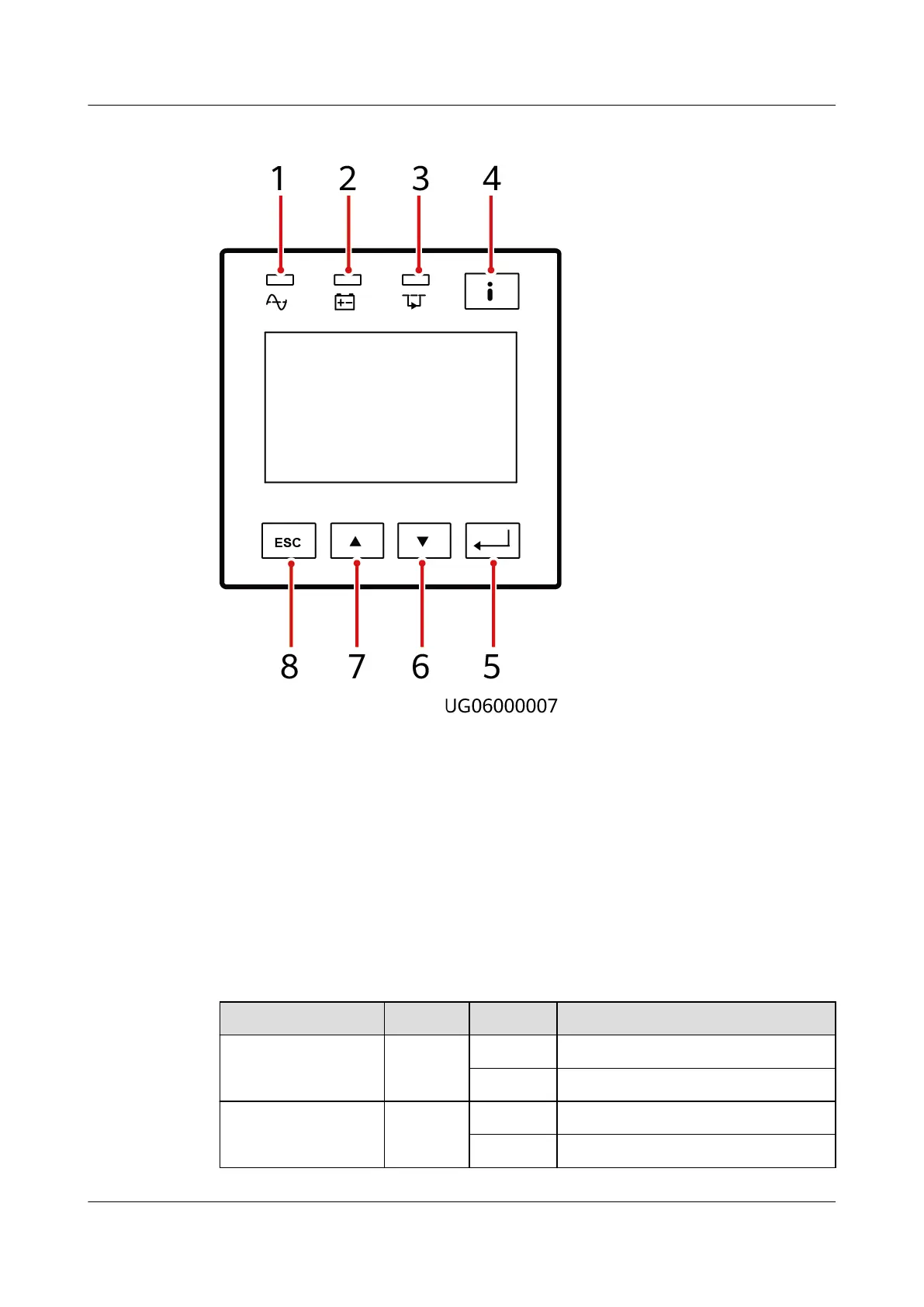

Figure 4-1 Control panel
(1) Mains indicator (2) Battery indicator (3) Bypass indicator (4) Fault indicator/
INFO button
(5) Startup/Enter/
Battery Self-Check/
Mute button
(6) Down button (7) Up button (8) Shutdown/Back
button
4.2 Indicators
Table 4-1 describes the indicators on the control panel.
Table 4-1 Indicator description
Indicator
Color Status Meaning
Mains indicator Green On The UPS is in normal mode.
O The UPS is not in normal mode.
Battery indicator Yellow On The UPS is in battery mode.
O The UPS is not in battery mode.
UPS2000-G- (6 kVA-20 kVA)
User Manual 4 Control Panel
Issue 18 (2021-07-16) Copyright © Huawei Technologies Co., Ltd. 42
