6 Repair instructions
This chapter describes how to repair and change spare
parts. Refer to the Illustrated parts list (IPL) at the
manufacturer's support website.
6.1 Product overview
6.1.1 The body system
The body system is structured mechanically around the
modules that follow:
Note: The body system is different between the models.
All of the models do not have all of the parts in the list.
1. Body
2. Rear bumper
3. Top cover
4. Ultrasonic sensors (not for 430X/430XH/520)
5. Headlights
6. Front bumper

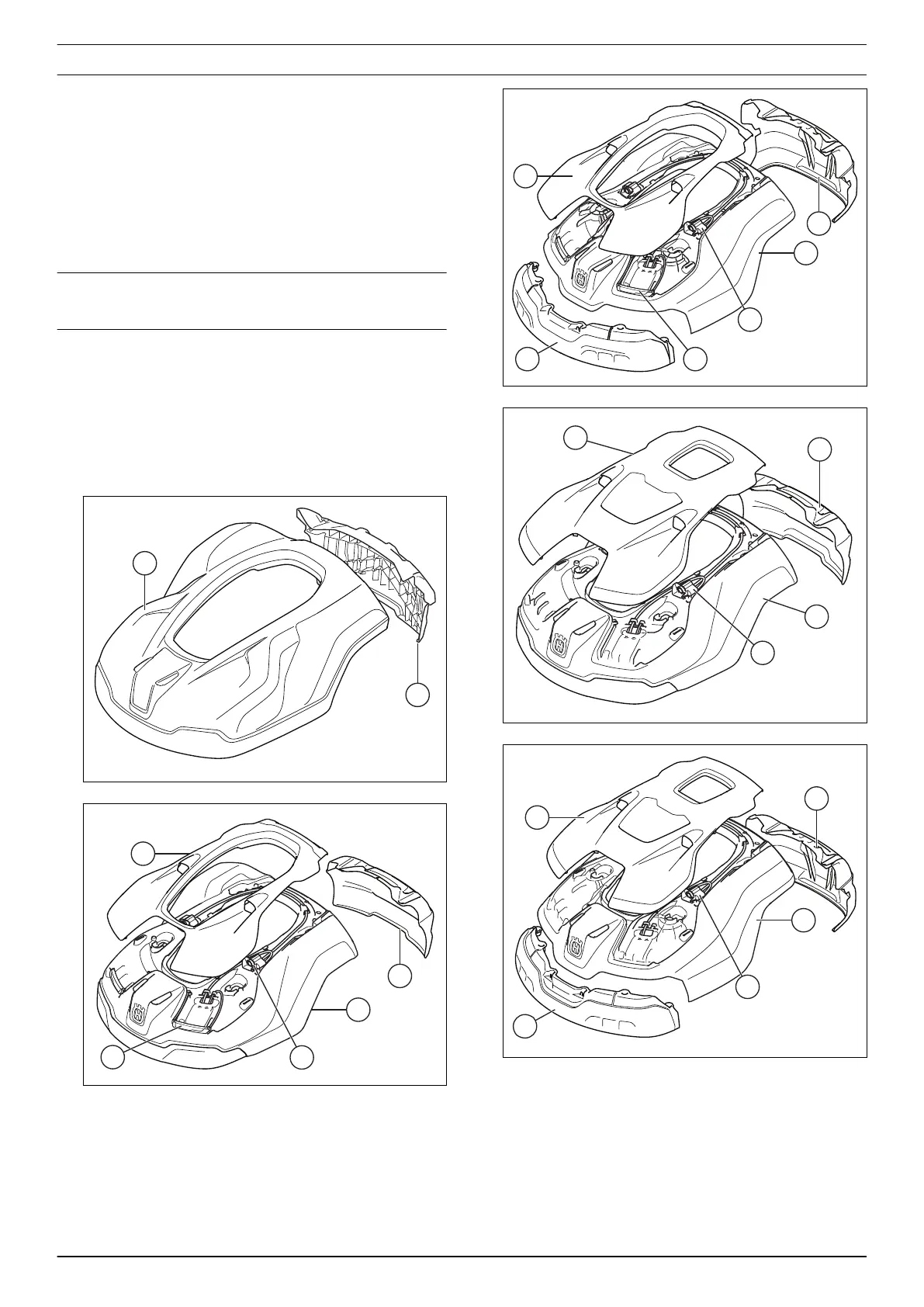

• The body system - 420/440
1
2
• The body system - 430X/450X
1
4
5
3
2
• The body system - 430XH/450XH
1
5
4
6
3
2
• The body system - 520/550
1
4
3
2
• The body system - 550H
1
4
6
3
2
6.1.2 The center console
The center console is structured mechanically around
the modules that follow:
• The center console 420/430X/430XH/440/450X/
450XH:
18 - Repair instructions 1191 - 001 -
