3-18 powermax1650 Operator Manual
+
–
+
–
2

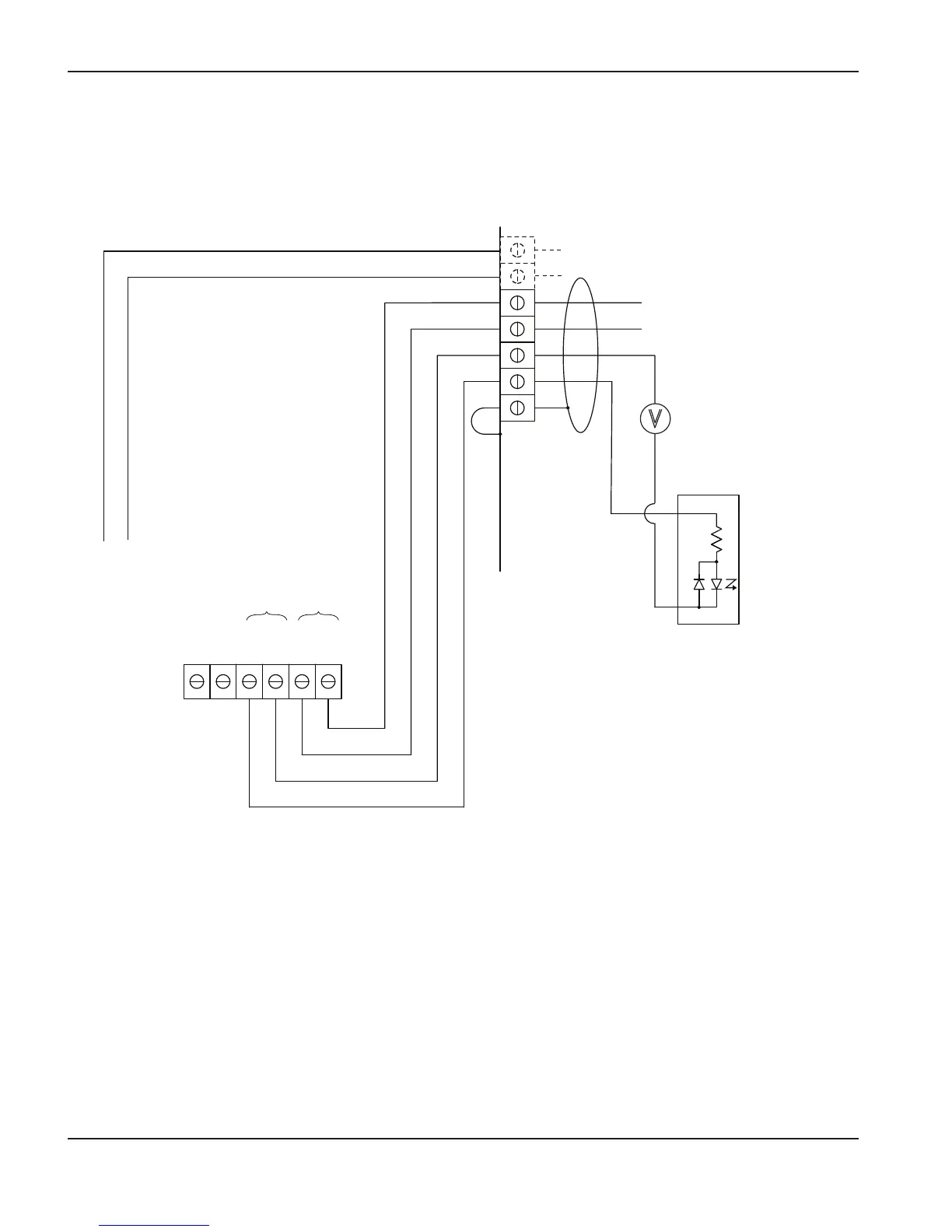

Driving an industrial isolated input module with an external power source
Notes:
1. Customer-supplied
isolated input module.
2. Customer-supplied
24 VDC power source.
3. Pins 5 and 6 are used only
on systems that include the
PowermaxEDGE cable
with voltage divider.
J16 J15
J19
GND
24VDC
BLK
YEL
RED
WHT
XFER START
Start
signal
5
V-div –
6
V-div +
4
3
14
12
13
Shield
24 VDC
Isolated input
module
