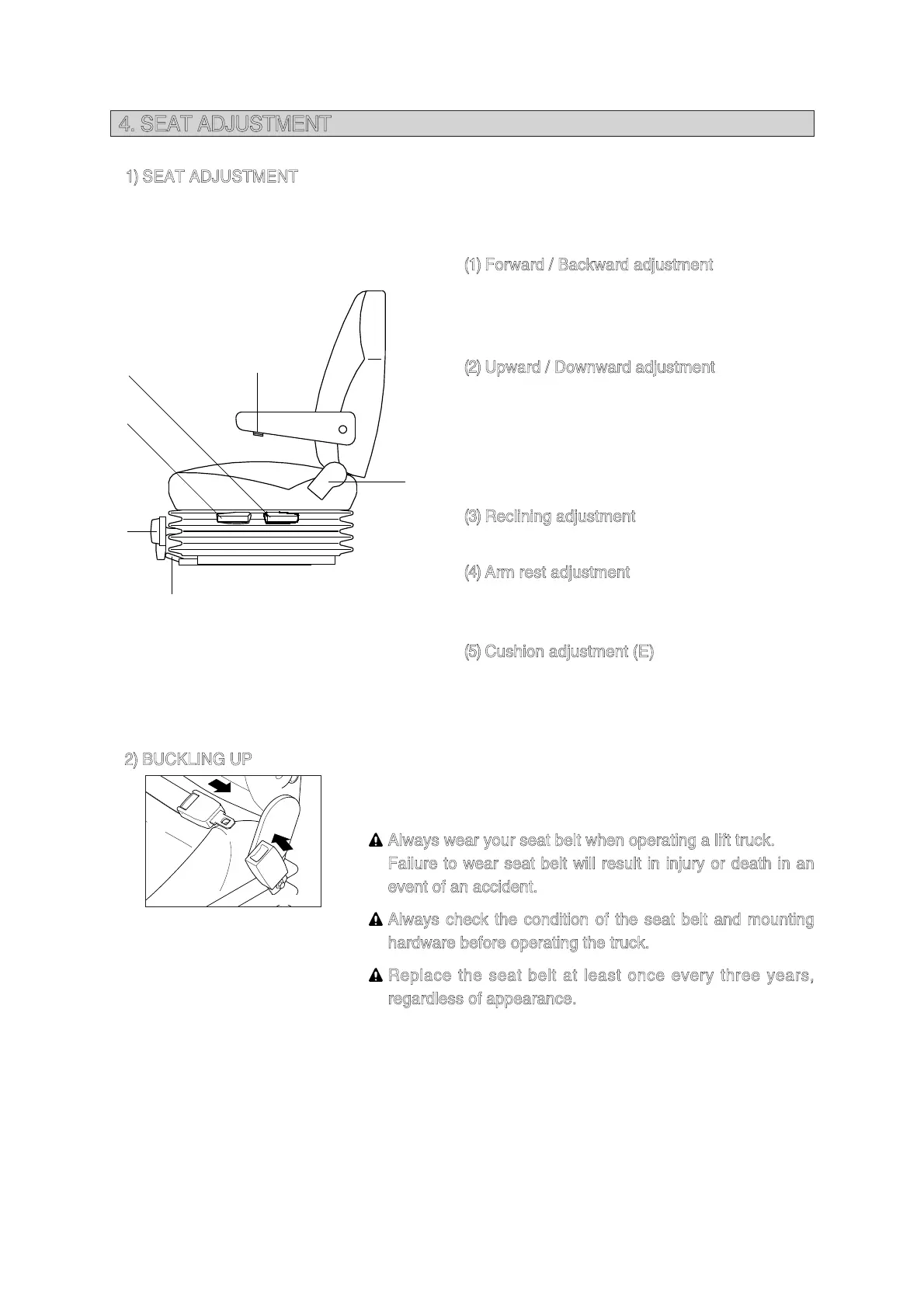

4. SEAT ADJUSTMENT
BUCKLING UP
2)
Be sure that you put on the seat belt. Connect and adjust the
seat belt strap to a snug, comfortable position.
Always wear your seat belt when operating a lift truck.
Failure to wear seat belt will result in injury or death in an
event of an accident.
Always check the condition of the seat belt and mounting
hardware before operating the truck.
Replace the seat belt at least once every three years,
regardless of appearance.
(1)
SEAT ADJUSTMENT
The seat is adjustable to fit the contours of the operator's body. It will reduce operator fatigue due
to long work hours and enhance work efficiency.
Forward / Backward adjustment
Pull lever A to adjust seat forward or backw-ard.
The seat can be moved forward and backw-
ard over 200
mm
(8
in
) in 10 steps.
Upward / Downward adjustment
Pull lever B and C to adjust seat upward or
downward.
Forward or backward side adjustment only
can be made, tilting to one side, by moving
lever B or C, respectively.
Reclining adjustment
Pull lever D to adjust seat back rest.
Arm rest adjustment
This can be adjusted by turning the handle F to
right and left.
Cushion adjustment (E)
Adjusting handle to the operator's weight.
Η
Θ
F
E
B
C
D
A
1)
(1)
(2)
(3)
(4)
(5)
73033CD50
Η
Θ
160D7OM11
5-8
