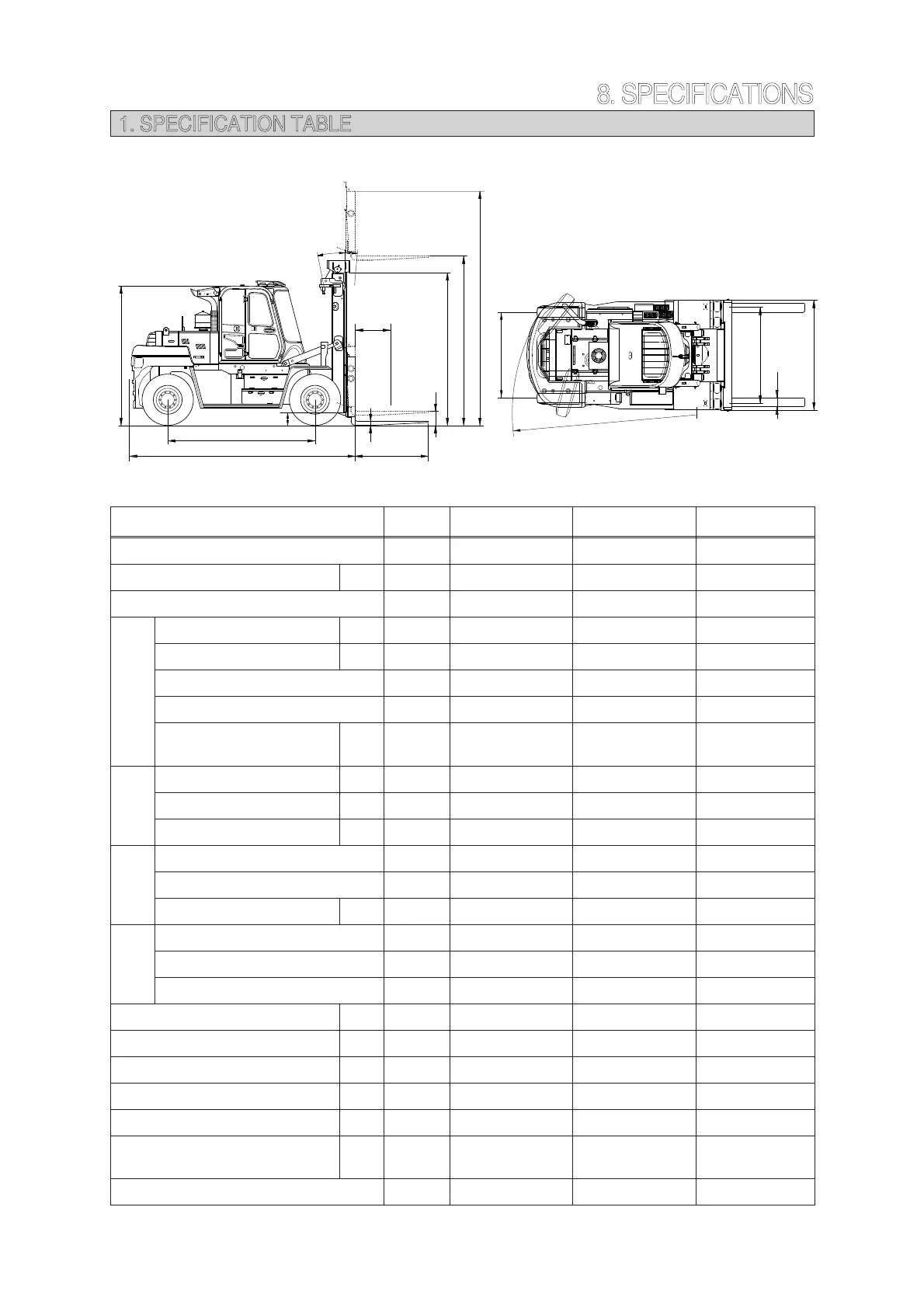

Hyundai 160D-9 User Manual

8-1
1. SPECIFICATION TABLE
8. SPECIFICATIONS
I
J
K
G L
T
B
E
A
D
C'
C
M'
F
M
W
H
R
110D9SP011
Model Unit 110D-9 130D-9 160D-9
Capacity
kg (lb) 11,000 (25000) 13,000 (29000) 16,000 (36000)
Load center R mm (in) 600 (24")
ą ą
Weight(Unloaded) kg 16274 (35880) 16991 (37460) 19842 (43740)
Fork
Lifting height A
mm (ft · in) 3005 (9' 10") 3000 (9' 10") 3010 (9' 11")
Free lift B mm (in) 0
ą ą
Lifting speed (Unload/Load) mm/sec 510/440 510/430 450/350
Lowering speed (Unload/Load) mm/sec 460/510
ą
410/430
LÝWÝT L,W,T mm (in)
1350Ý200Ý75
(53.1Ý7.9Ý3.0)
1350Ý200Ý85
(53.1Ý7.9Ý3.3)
1350Ý200Ý90
(53.1Ý7.9Ý3.5)
Mast
Tilt angle (forward/backward)
C/C’
degree 15/12
ą ą
Max height D mm (ft · in) 4465 (14' 8")
ą
4710 (15' 5")
Min height E mm (ft · in) 3000 (9' 10")
ą
3250 (10' 0")
Body
Travel speed (Unload)
km/h 39.5
ą
33.3
Gradeability (Load) % 45.3 41.0 40.2
Min turning radius (Outside) F
mm (ft · in) 4350 (14' 3")
ą
4895 (16' 1")
ETC
Max hydraulic pressure
kgf/cm
2
210
ą ą
Hydraulic oil tank ˶ (USgal) 115 (30.4)
ą
124.3 (32.8)
Fuel tank ˶ (USgal) 195 (51.5)
ą
260 (68.7)
Overall length G mm (ft · in) 4570 (15' 0") 4580 (15' 0") 5080 (16' 8")
Overall width H
mm (ft · in) 2777 (9' 1")
ą
2497 (8' 2")
Cabin height I mm (ft · in) 2890 (9' 6")
ą
2930 (9' 7")
Ground clearance J mm (in) 250 (9.8")
ą ą
Wheel base K mm (ft · in) 3050 (10' 0")
ą
3450 (11' 4")
Wheel tread front/rear M/M' mm (ft · in)
1842 / 1910
(6' 1" / 6' 3")
ą
1842 / 1960
(6' 1" / 6' 5")
Drawbar pull kg (lb) 12356 (27240) 12500 (27560) 13243 (29200)
