3-5

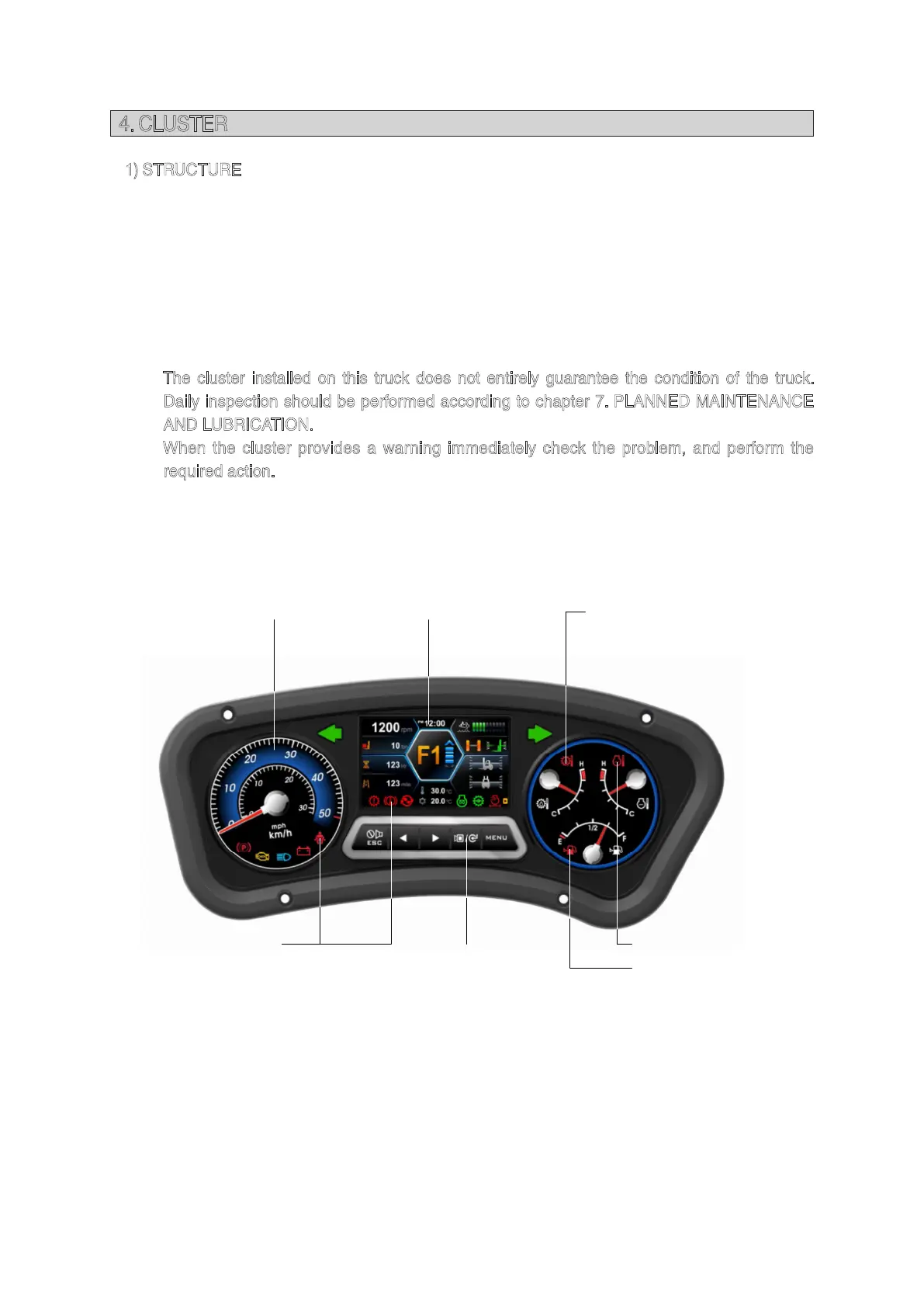

4. CLUSTER
LCD (page 3-16)Speed meter
Button
T/M oil temperature gauge
Fuel gauge
Engine coolant temp gauge
Warning lamps (page 3-7)
Pilot lamps (page 3-11)
The cluster consists of gauges, lamps, buttons and LCD as shown below, to warn the operator in
case of abnormal truck operation or conditions for the appropriate operation and inspection.
·
Gauges : Indicate operating status of the truck.
·
Warning lamps : Indicate abnormality of the truck.
·
Pilot lamps : Indicate operating status of the truck.
·
LCD : Display the truck model, error code and engine speed etc.
·
Buttons : Select the truck model, error code and engine speed etc and stop the buzzer
sound.
※
The cluster installed on this truck does not entirely guarantee the condition of the truck.
Daily inspection should be performed according to chapter 7. PLANNED MAINTENANCE
AND LUBRICATION.
※
When the cluster provides a warning immediately check the problem, and perform the
required action.
300D9CD03
STRUCTURE
1)
