DO-IT-YOURSELF MAINTENANCE
6-14
G180A01A-AAT
CHECKING BRAKE PEDAL
CLEARANCE
G190A01A-AAT
CHECKING DRIVE BELTS
G200A01A-AAT
CHECKING AND REPLACING
FUSES
Replacing a Fusible Link
SSA6180A
2.95 in. (75 mm)

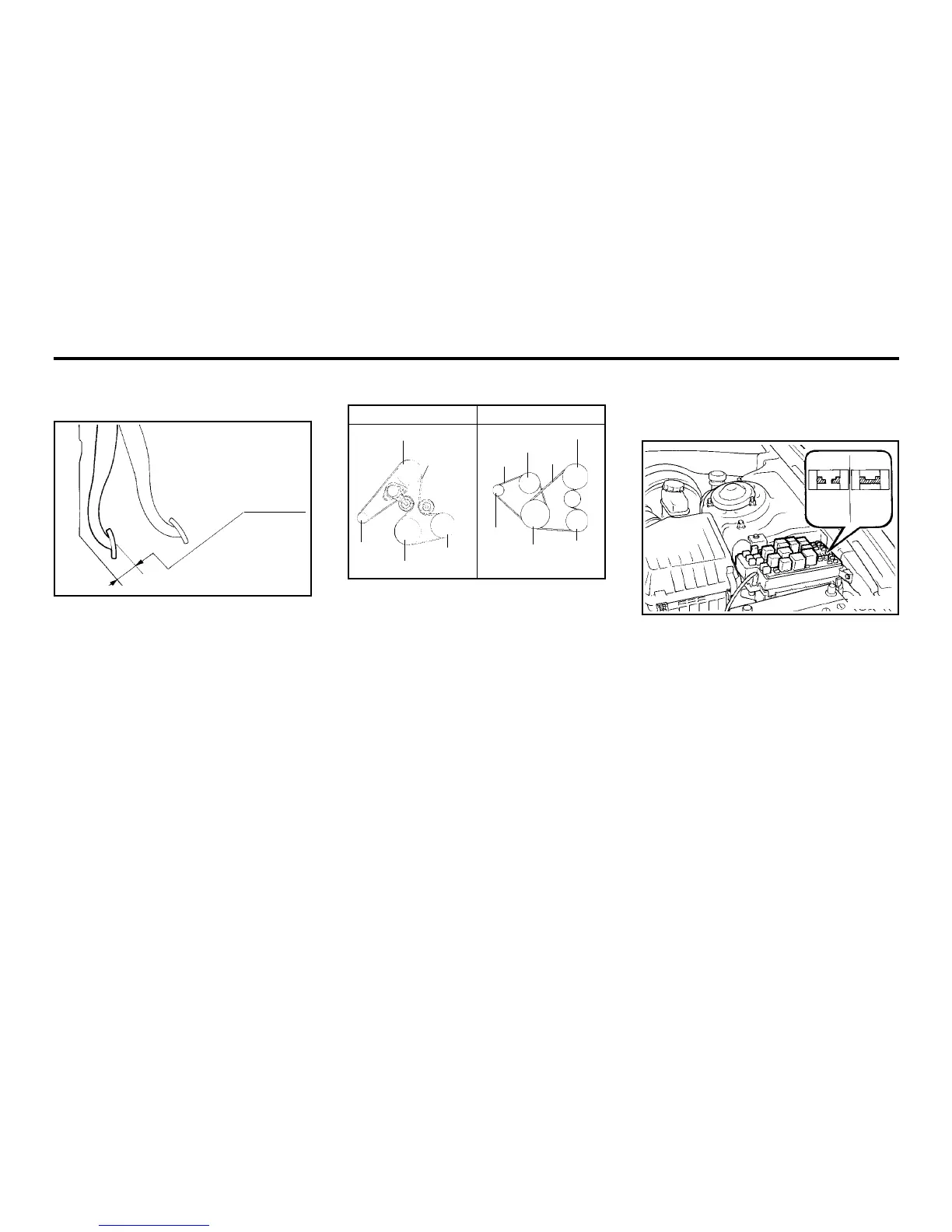

You need a helper to check the brake pedal
clearance. With the engine running, have your
helper press down on the brake pedal several
times and then hold it down with a force of about
110 lbs (50 kg, 490 N). The brake pedal clear-
ance is the distance from the top surface of the
brake pedal to the asphalt sheeting under the
floor mat.
If the brake pedal clearance is not within the
limits specified in the illustration, have it in-
spected by your Hyundai dealer and adjusted
or repaired if necessary.
G140D01Y/G140D02Y
V6 DOHC
Power steering
Auto
tensioner
Generator
Eng.pulley
COMP
Power steering
COMP
Eng.pulley
Generator
Eng.coolant
0.30 ~ 0.48 in.
0.24~0.35 in.
Drive belts should be checked periodically for
proper tension and adjusted if necessary. At the
same time, belts should be examined for cracks,
wear, fraying or other evidence of deterioration
and replaced if necessary.
Belt routing should also be checked to be sure
there is no interference between the belts and
other parts of the engine. After a belt is re-
placed, the new belt should be adjusted again
after two or three weeks to eliminate slack
resulting from initial stretching after use.
G200A01Y
Bad
Good
A fusible link will melt if the electrical circuits
from the battery are ever overloaded, thus pre-
venting damage to the entire wiring harness.
(This could be caused by a short in the system
drawing too much current.) If this ever happens,
have a Hyundai dealer determine the cause,
repair the system and replace the fusible link.
The fusible links are located in a relay box for
easy inspection.
CAUTION:
When replacing a fusible link, never use
anything but a new fusible link with the
same or lower amperage rating. Never use a
piece of wire or a higher-rated fusible link.
This could result in serious damage and
create a fire hazard.
