FEATURES OF YOUR HYUNDAI
1- 50
This is used to turn the heating system on and
off and to select the degree of heating desired.
B680A01Y-AAT

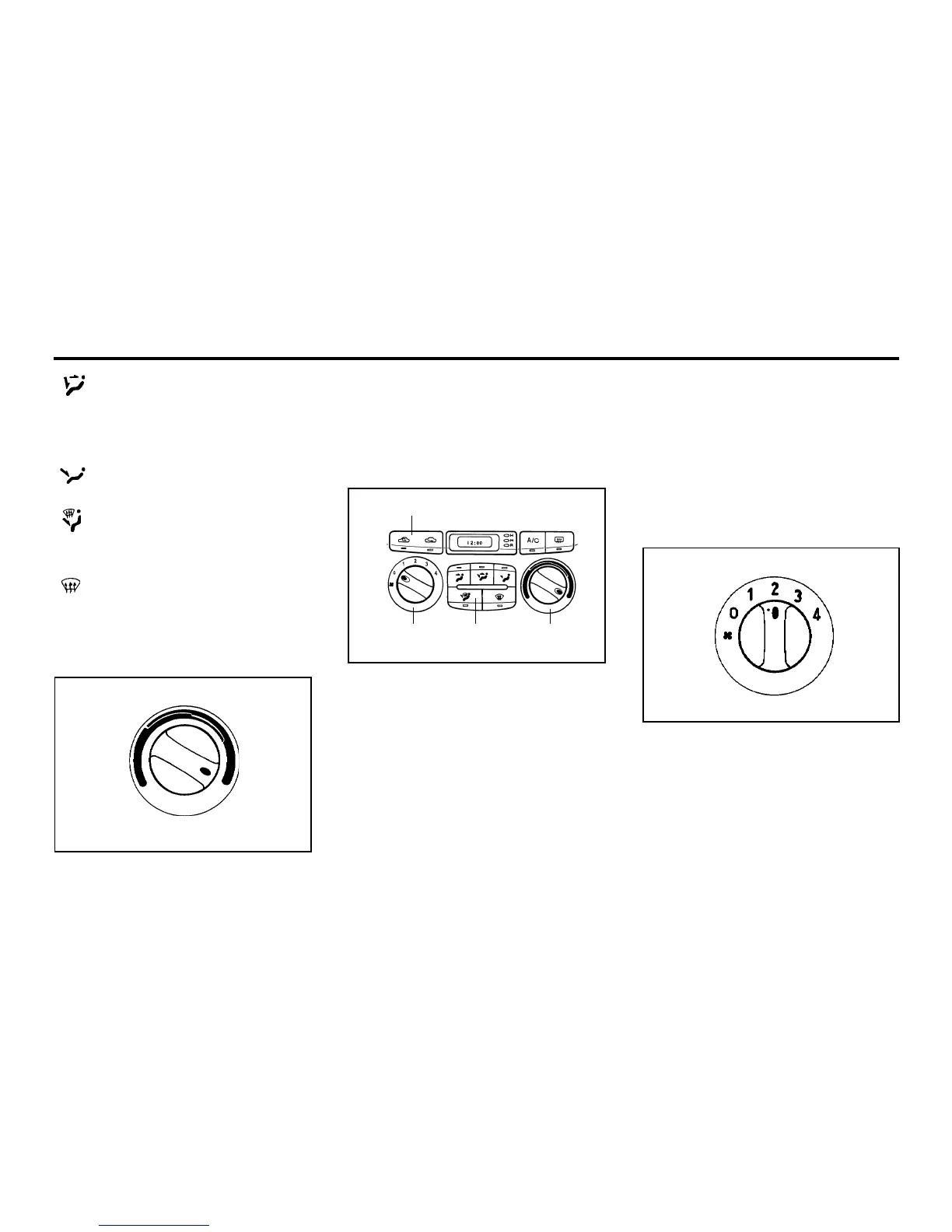

HEATING AND VENTILATION ROTA-
RY AND PUSH BUTTON TYPE
(If installed)
B700A01Y
3
12 4
There are four controls for the heating and
cooling system. They are:
1. Fan speed control.
This is used to turn the fan on and select the
fan speed.
2. Air flow control.
This is used to direct the flow of air. Air can
be directed to the floor, dashboard outlets,
or windshield. Five symbols are used to
represent Face, Bi-Level, Floor, Floor-De-
frost and Defrost air positions.
3. Air intake control.
This allows you to select fresh outside air or
recirculation inside air.
4. Temperature control.
This is used to turn the heating system on
and off and to select the degree of heating
desired.
B670B02Y-AAT
Fan Speed Control
(Blower Control)
B690A01Y
This is used to turn the blower fan on and off
and to select the fan speed.
The blower fan speed, and therefore the vol-
ume of air delivered from the system, may be
controlled manually by setting the blower con-
trol between the "1" and "4" position.
Bi-Level
Air is discharged through the face vents and the
floor vents. This makes it possible to have
cooler air from the dashboard vents and warmer
air from the floor outlets at the same time.
Floor-Level
Air is discharged through the floor vents.
Floor-Defrost Level
Air is discharged through the windshield defrost
vents and the floor vents.
Defrost-Level
Air is discharged through the windshield defrost
vents.
B690A01Y
Cool
Warm
B670E01A-AAT
Temperature Control
