8-19
08
1. Model Name
2. Maximum allowable load
3. When using the jack, set your parking
brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is
supported by a jack.
6. The designated locations under the
frame
7. When supporting the vehicle, the base
plate of jack must be vertical under
the lifting point.
8. Shift into Reverse gear on vehicles
with manual transmission or move the
shift lever to the N (Neutral) position
on vehicles with Automated manual
transmission
9. The jack should be used on firm level
ground.
10. Jack manufacture
11. Production date
12. Representative company and address

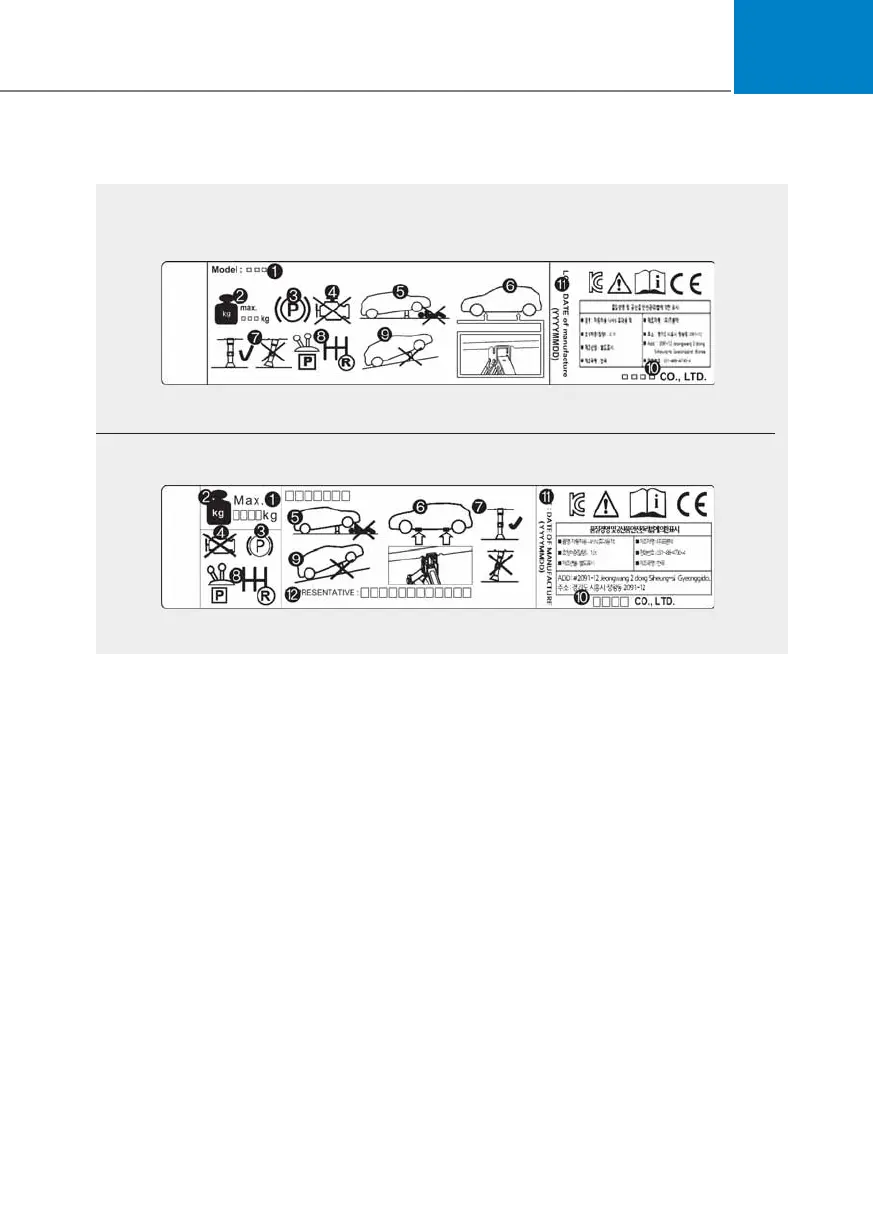

Jack label

îš„
Example
• Type B
• Type A
OHYK065011
OHYK065010
K The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
