9-109
09

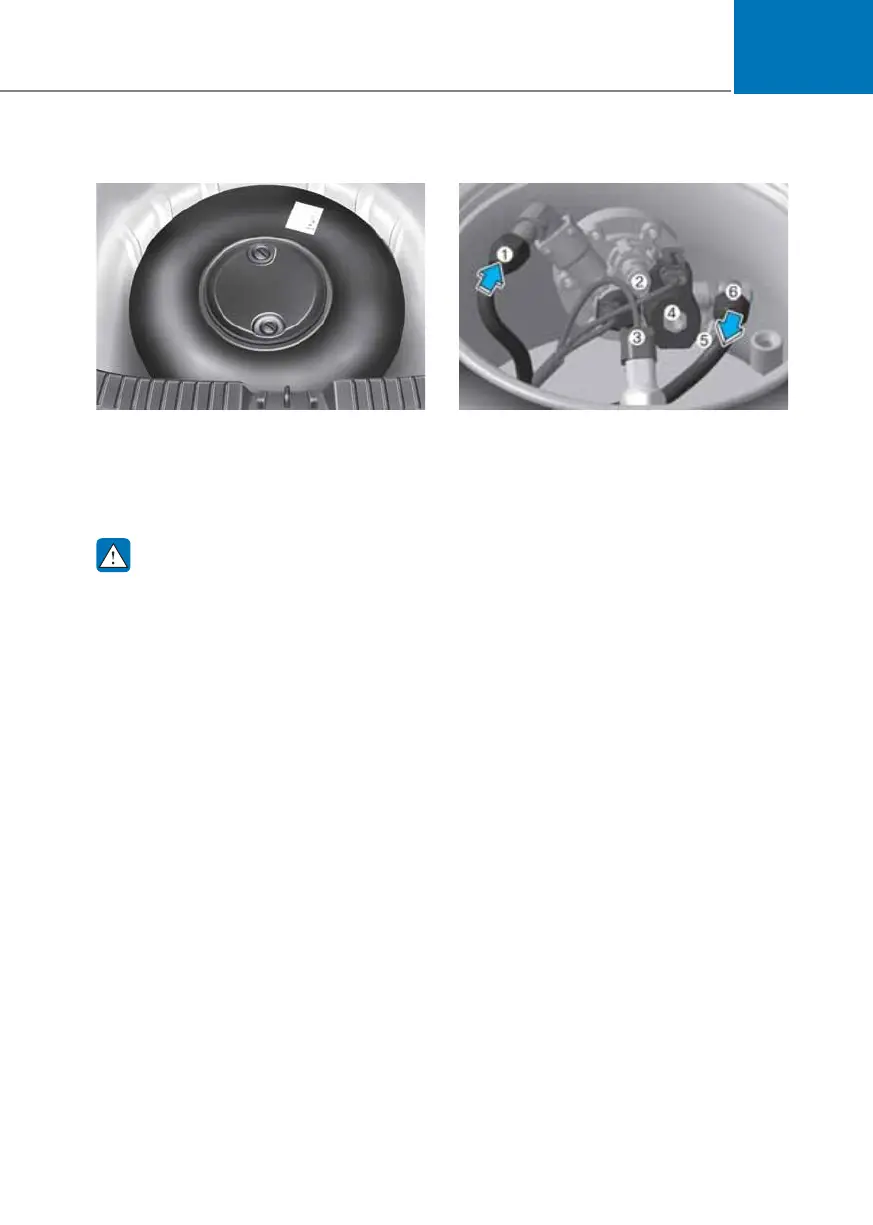

CNG tank
OPA042416
CNG tank is located in the trunk/boot
of your vehicle under the luggage mat
which is fastened to the trunk /boot
body wall ensuring better safety. CNG
tank is toroidal shaped for better layout.
WARNING
Do not tamper standard settings. It may
cause damage to CNG system. Do not
tamper with the tank by increasing or
decreasing tank capacity.
Multi valve assembly
OAI3069022
The tank is fitted with the multi valve
assembly.
The multi valve assembly has a fuel
gauge, shut off valve and a pressure
relief valve as shown in the illustration.
1. Inlet
2. Pressure relief valve
3. Capacity gauge
4. Solenoid
5. Manual shut off valve
6. Outlet
• The pressure relief valve operates
whenever the gas pressure in the tank
increases above a set pressure (in case
of accident).
• Manual shut off valve is a manually
operated safety valve. It is advisable
to understand opening and closing of
the manual shut off valve. This helps
in handling emergency situation with
ease.
CNG TANK AND MULTI VALVE ASSEMBLY
