9-77
09
6. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
7. Reinstall the light assembly to the
body of the vehicle.
Tail lamp (LED Type)
If the LED lamp does not operate, we
recommend that the vehicle be checked
by an authorized HYUNDAI dealer.

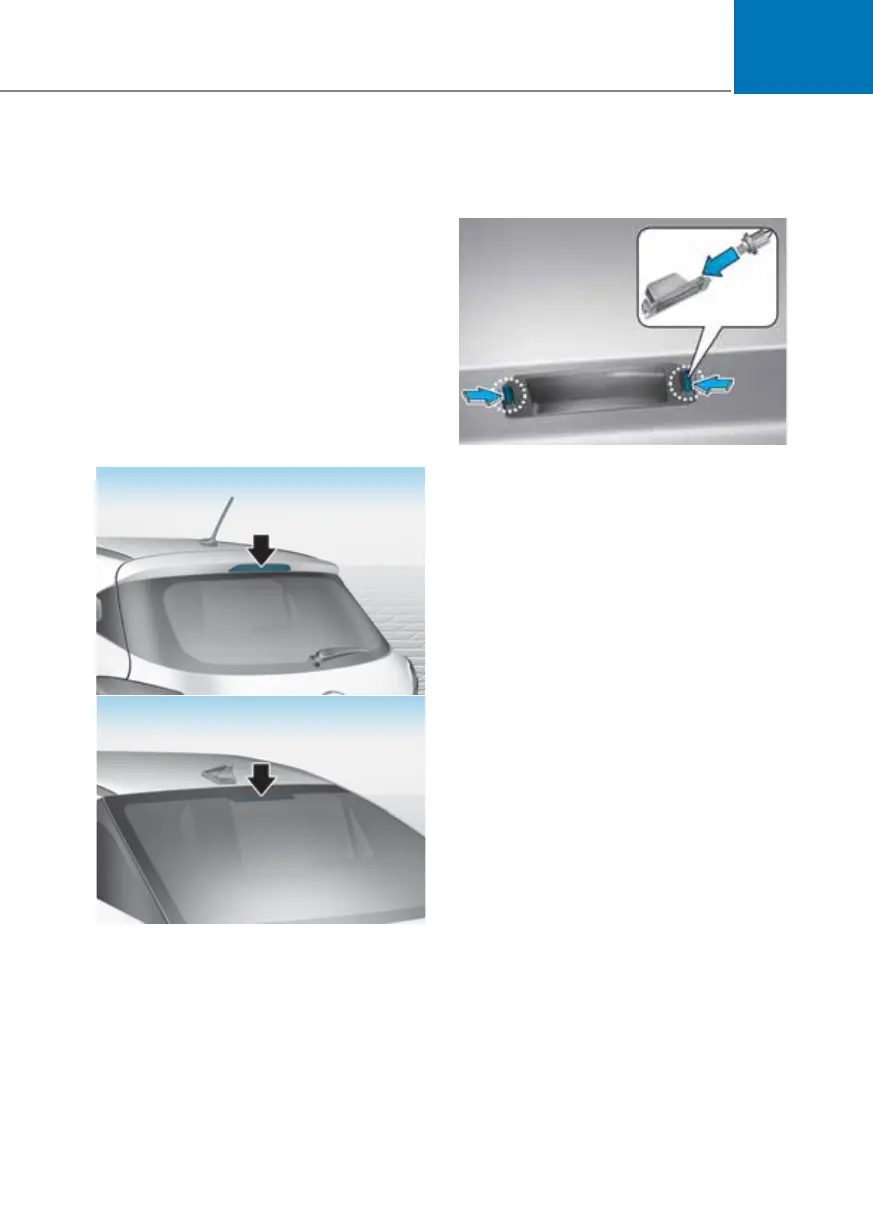

High mounted stop light
OAI3089031

îš„
5 Door

îš„
4 Door
OAI3089067
If the light does not operate, we
recommend that the vehicle be checked
by an authorized HYUNDAI dealer.
License plate light bulb
replacement
OAI3089029
1. Using a flat-blade screwdriver, remove
the light assembly from the body of
the vehicle by prying the housing and
pulling the assembly out.
2. Separate the socket and the
lens part by turning the socket
counterclockwise until the tabs on the
socket align with the slots on the lens
part.
3. Remove the bulb by pulling it straight
out.
4. Insert a new bulb in the socket.
5. Reassemble the socket and the
housing part.
6. Reinstall the light assembly to the
body of the vehicle.
