3.2.1.1 Anchoring the boiler
Boiler weight – without water and any effect of system piping and components – is approximately 500 lbs /
225 kg.
Use the brackets provided to secure the boiler to the floor.
3.3 Unpacking a boiler
The boiler is shipped bolted to a pallet with four (4) anchor brackets and 3/8" Hex head bolts. Once the
anchor brackets are removed they can be used to secure the boiler to the floor.

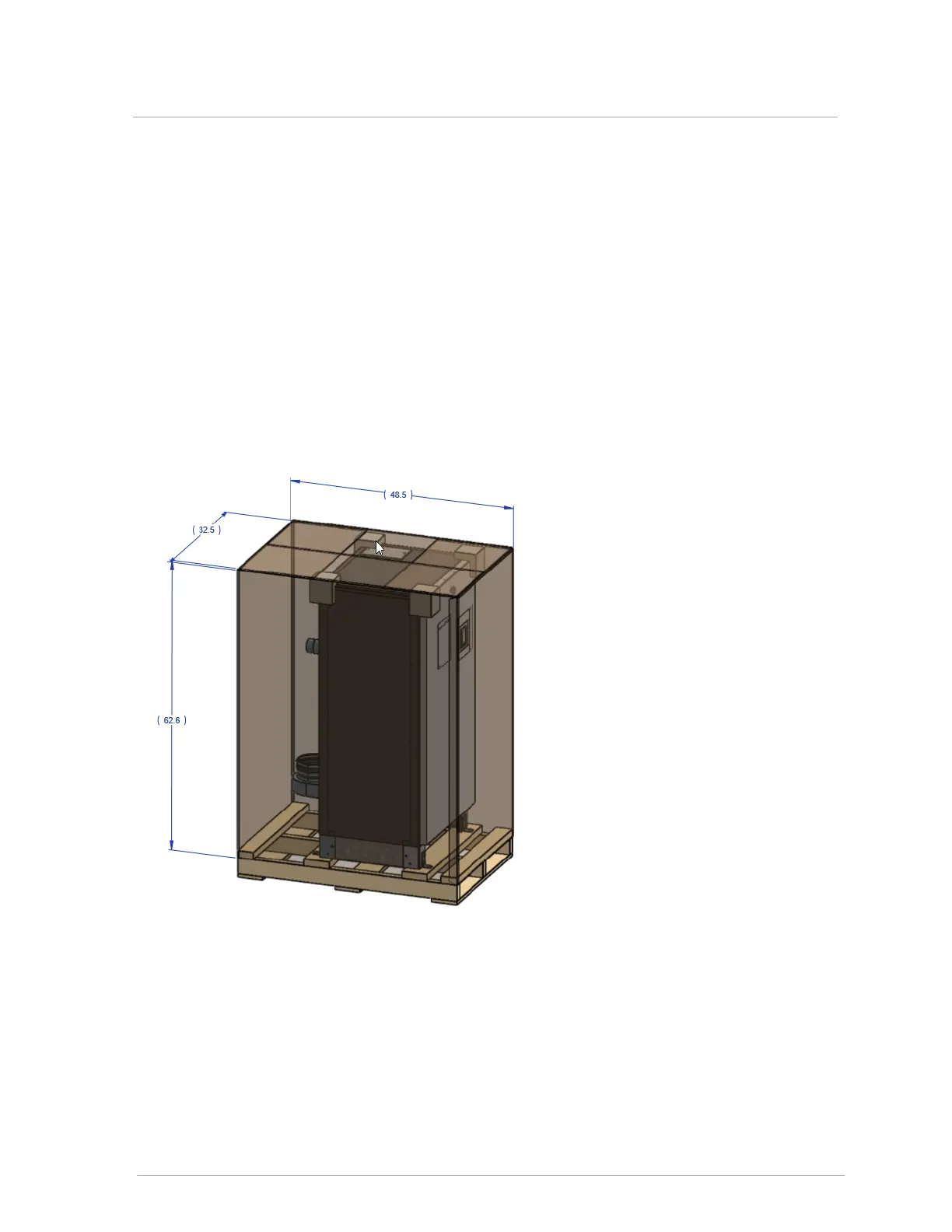

Figure 6 Boiler packaging dimensions (inches)
