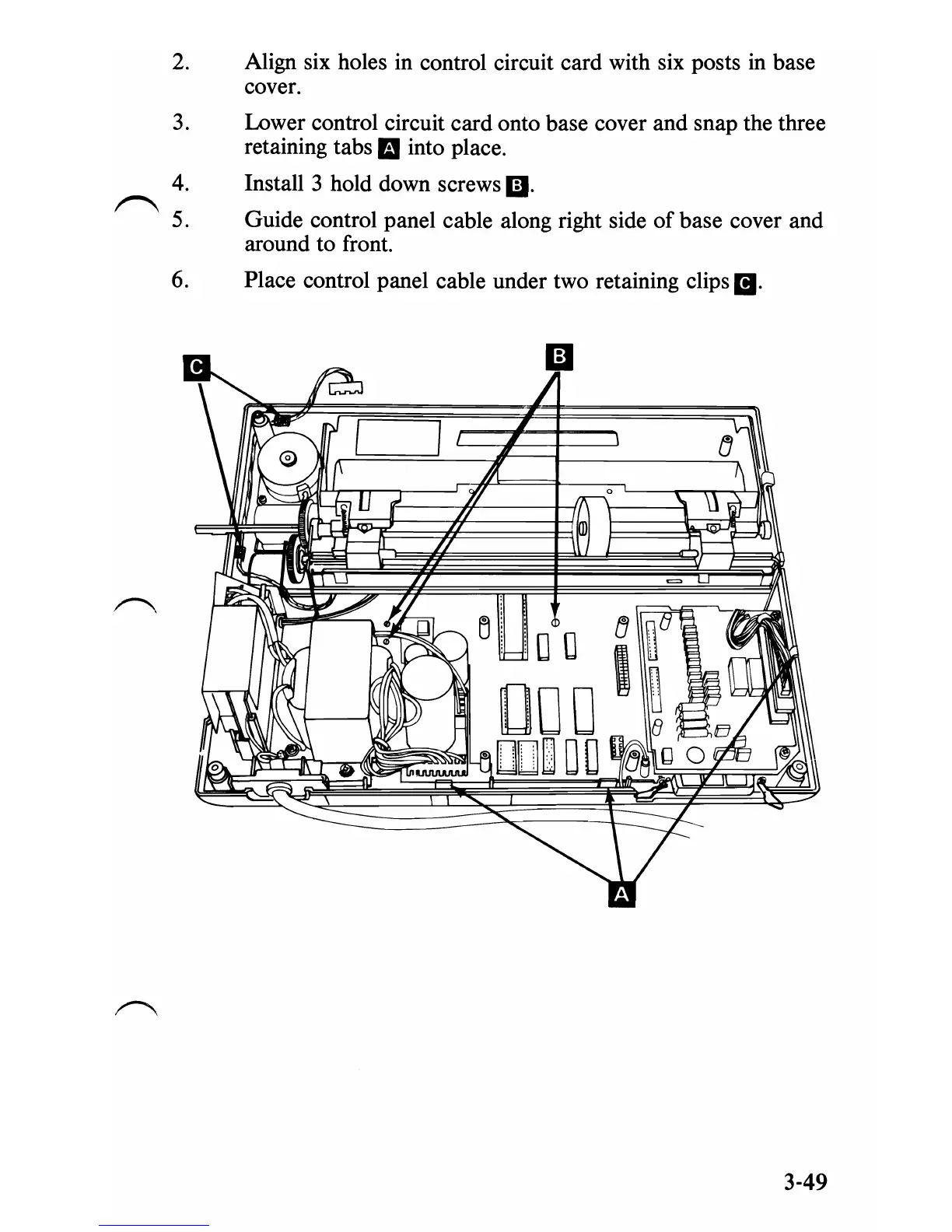

2. Align six holes in control circuit card with six posts in base
cover.
3.
4.
r"'\ 5.
6.
Lower control circuit card onto base cover and snap the three
retaining tabs
II into place.
Install 3 hold down screws
m.
Guide control panel cable along right side of base cover and
around to front.
Place control panel cable under two retaining clips
m.
3-49
