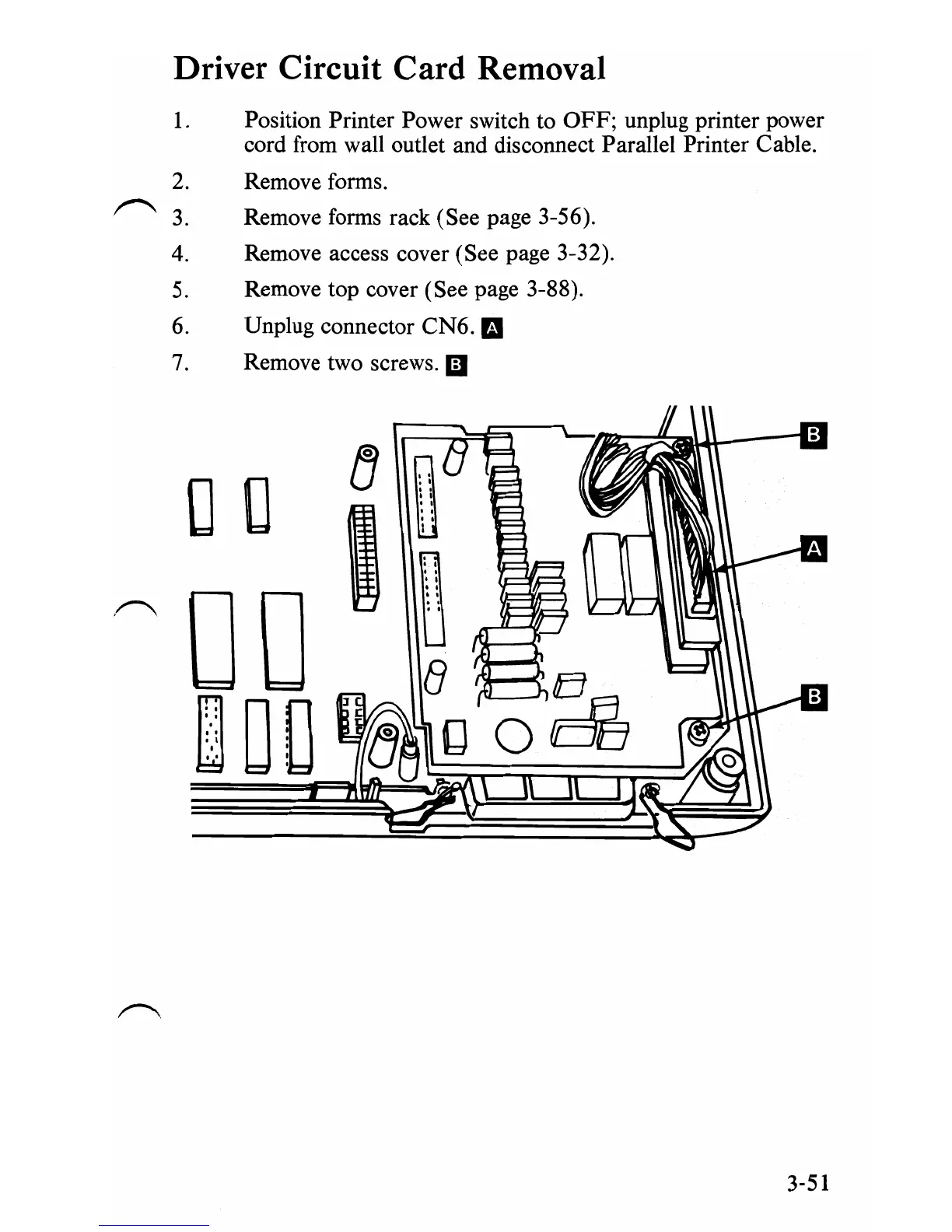

Driver Circuit Card Removal
1.
Position Printer Power switch to
OFF;
unplug printer power
cord from wall outlet and disconnect Parallel Printer Cable.
2.
Remove forms.
~
3.
Remove forms rack (See page 3-56).
4.
Remove access cover (See page 3-32).
5.
Remove top cover (See page 3-88).
6.
Unplug connector CN6.
m
7.
Remove two screws. iii
{j
o0
000
3-51
