Page #327 background image
19
14

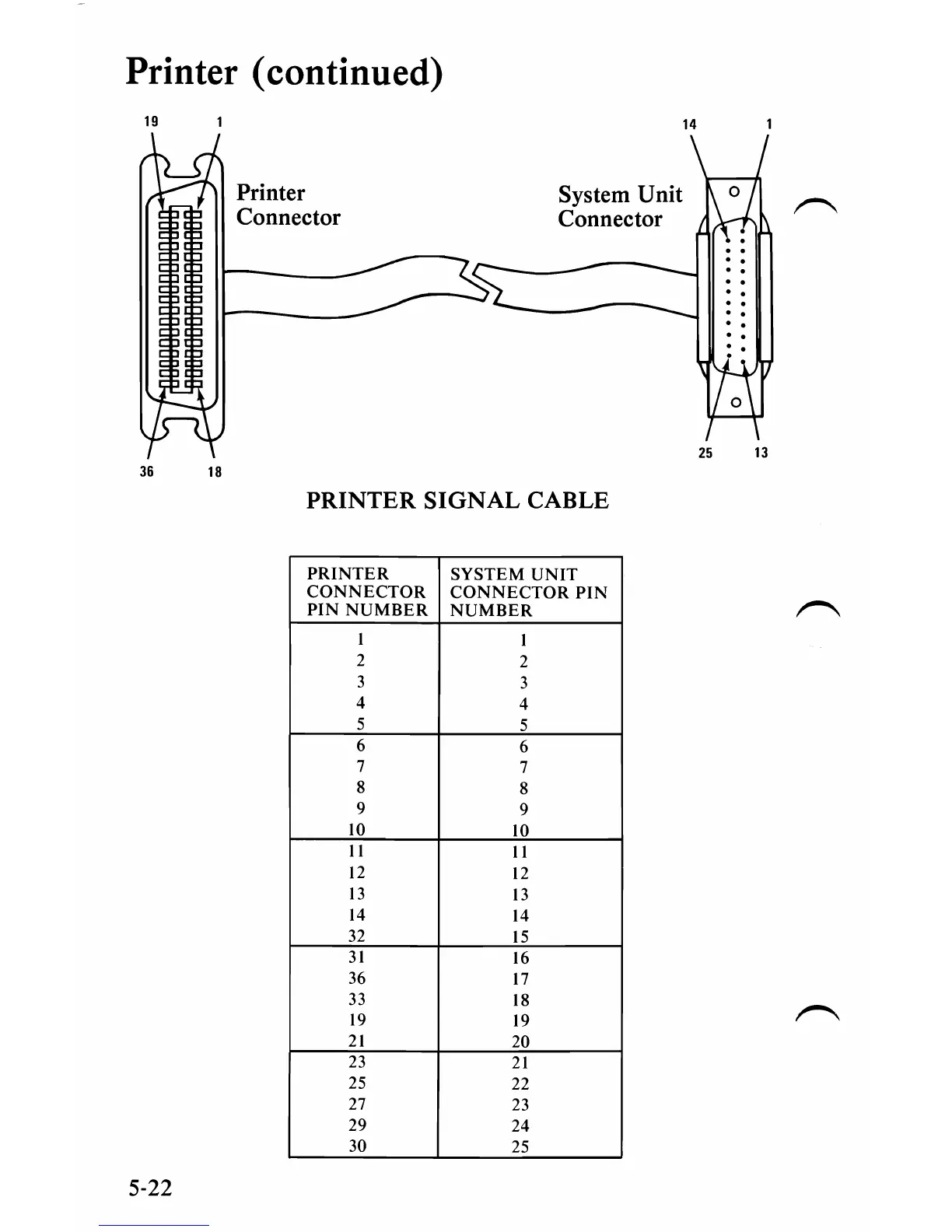

Printer (continued)
Printer
System Unit
Connector
Connector
36
18
PRINTER
SIGNAL
CABLE
PRINTER
SYSTEM
UNIT
CONNECTOR
CONNECTOR
PIN
PIN
NUMBER
NUMBER
I
I
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
II
II
12
12
13
13
14
14
32
15
31
16
36
17
33
18
19
19
21
20
23
21
25
22
27
23
29
24
30
25
25
13
5-22
