IBM Aptiva 2158 User Manual

86
AMD-K6 Processor (for 2158)
NOTE:
Determine the type of processor you are installing and make sure the
jumpers are set correctly. Run the Setup Utility after correctly installing
a processor.
CAUTION:
Processors are sensitive to static discharge.
•
Remove adapter cards if applicable.
•
Detach the heat sink cable from the fan connector.
•

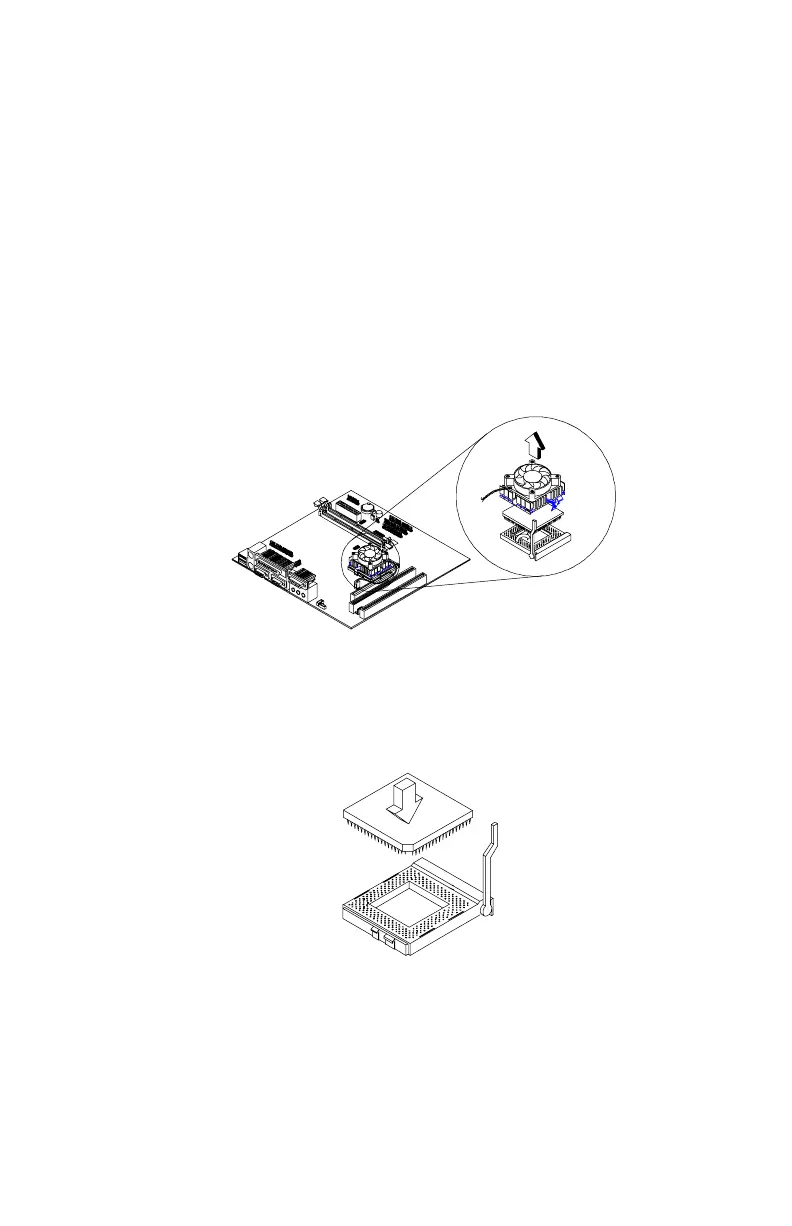

Remove the fan sink by pressing the release tab (rectangular end) and
lifting it up from the Processor.
•
Pull up the ZIF socket release lever.
•
Lift the processor out of the socket.
NOTE:
Installing the processor
•
Place the ZIF socket release lever to the release (up) position.
•
Insert the new processor, matching the notched corner of the processor with
the pin 1 indicator on the socket.
•
Push down the lever to lock the processor to the socket.
