IBM Aptiva 2158 User Manual

Parts/Test Point Locations 147

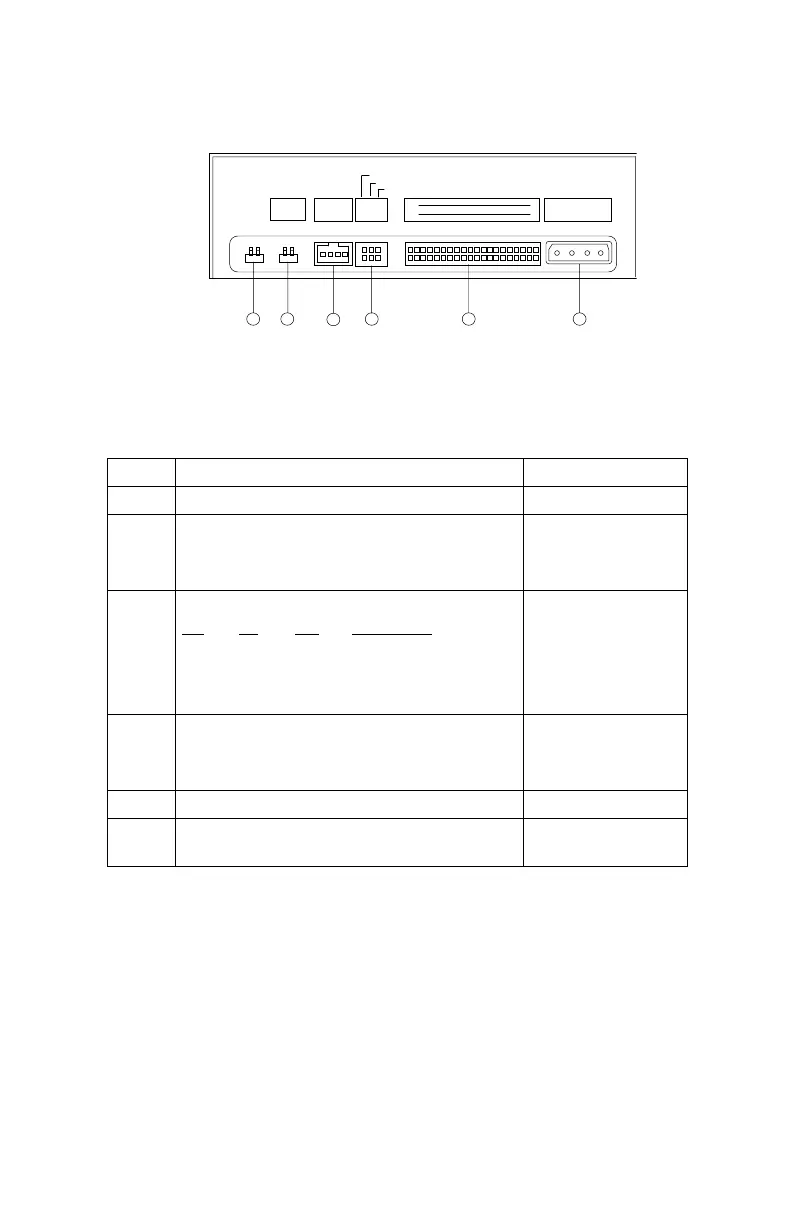

CD-ROM Drive Rear Panel Connectors and Jumpers
NOTE:
CD-ROM drives may come with no item 5 and 6 (digital audio output
and testing jumper) connectors.
.
CD-ROM Drive Rear Panel Connectors and Jumpers
Item Function Connect to...
1 Power supply connector Power supply
2 Interface connector System board
2158: CN10
2163/2164: CN10
3 Configuration jumper.
CS
SL MA Description
-- -- On Master(default).
-- On -- Slave.
On -- -- Cable select
--
4 Audio line out connector System board
2158: CN15
2163/2164: CN8
5 Digital audio output --
6 Testing jumper is reserved for manufacturer
internal testing purposes.
--
R G G L
AUDIO
C S M
S L A
CABLE SELECT
SLAVE
MASTER
39
40
1
2
IDE INTERFACE
5V 12VGG
DC INPUT
5
4
3
2
1
6
AUDIO
DIGITAL
D G
