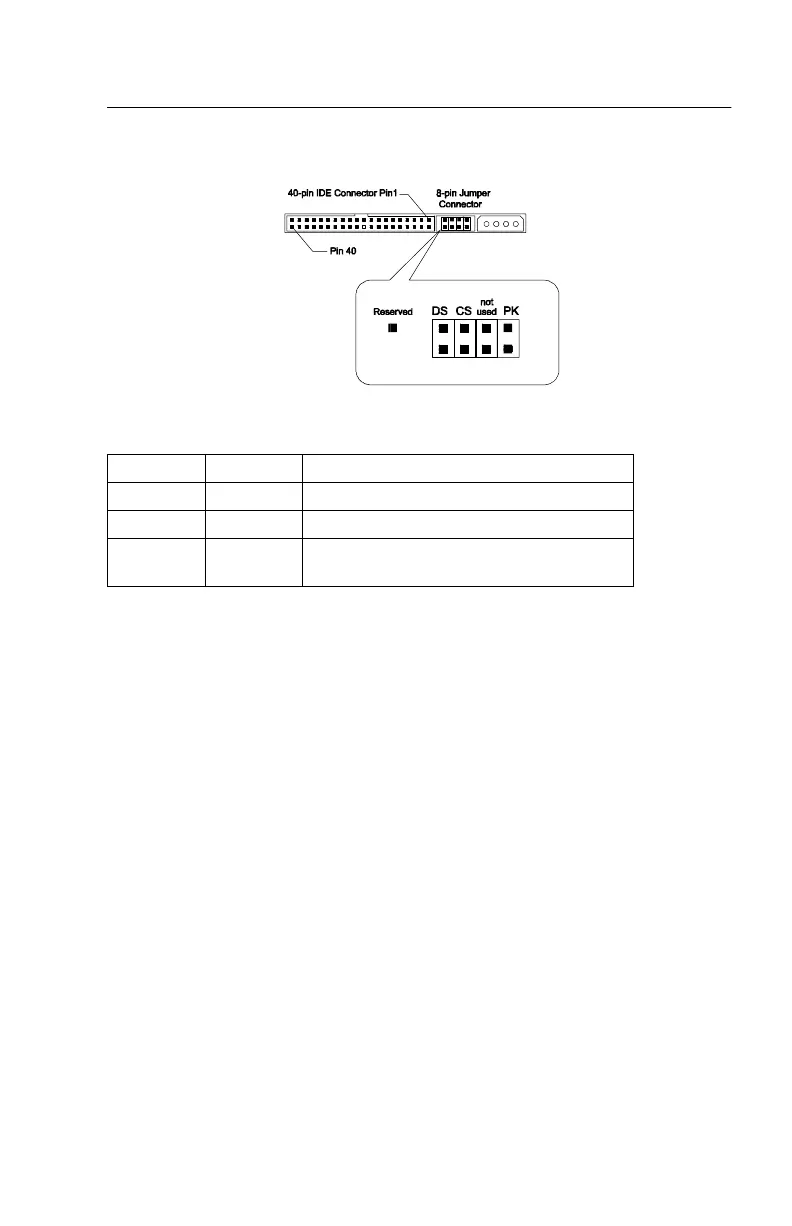

5.25-In. Hard Disk Drive Jumper Settings
The configuration of the following four jumpers controls the drive's mode of
operation:
• DS - Drive Select
• CS-Cable Select
• PARK - Park or Store position
5.25-In. Hard Disk Drive Jumper Settings
DS CS/SP Description
On Off Drive is configured as a Master.
Off Off Drive is configured as a Slave.
On On Drive is configured as a Master, with an
attached Slave that supports DASP
To Next Page
