Parts/Test Point Locations 141
3.5-In. Hard Disk Drive Jumper Settings
The configuration of the following jumpers controls the drive's mode of
operation:
• SP - Slave Present
• DS - Drive Select
• CS - Cable Select
• PK - Park, used as a place to store a jumper

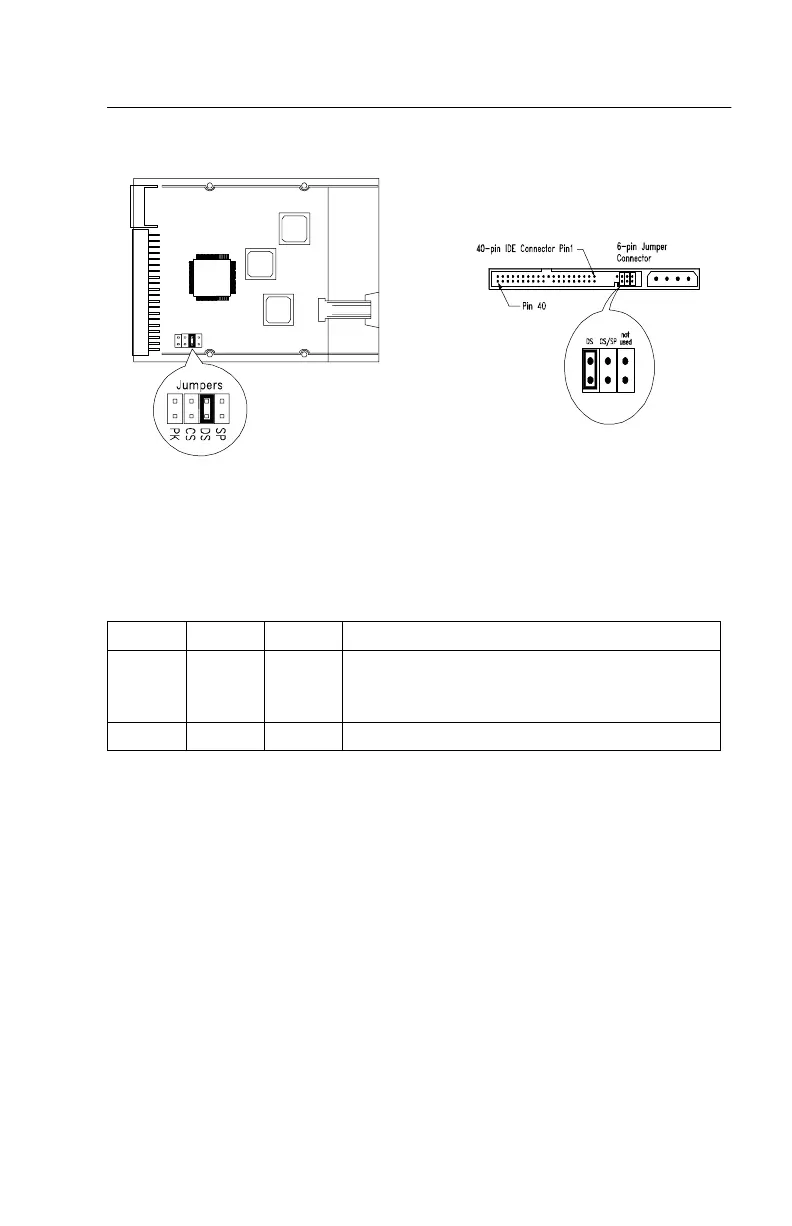

3.5-In Quantum Fireball TM Series
Hard Disk
3.5-In Quantum Fireball ST Series
Hard Disk
3.5-In Quantum Fireball TM and ST Series Hard Disk Drives Jumper Settings
DS CS SP Description
On Off -- Drive configured as a Master, or
Drive configured as a Master, with an attached
Slave
Off Off -- Drive configured as a Slave.
