CD-ROM Drive
Front Panel and Emergency-Exit
ATTENTION:
Either <option 1> or <option 2> CD-ROM drive may come with
your Aptiva machine. Their front panel buttons, indicators and
emergency eject method may be different.
ATTENTION:
Make sure to turn off the power before manual disc eject

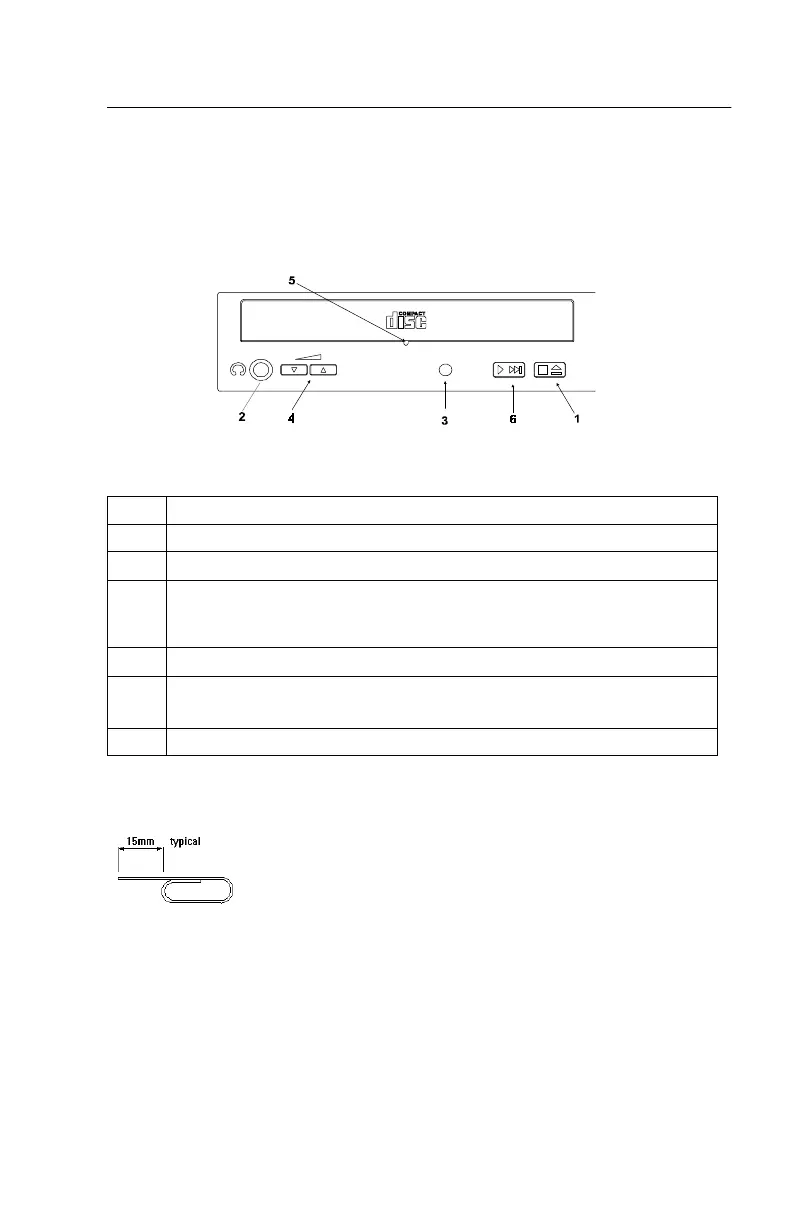

CD-ROM Front Panel Introduction <option 1>
Item Description
1 Load / eject button
2 Headphone jack
3 Power-on / busy indicator, lights up in green color while disc is set in ready
state; lights up and flashes in amber color during data read or seek
operation.
4 Headphone volume control
5 Emergency eject hole.
See CD-ROM Emergency-exit <option 1> below.
6 Audio Play
/
Skip track control button
CD-ROM Emergency-exit <option 1>
If for any reason the tray does not eject automatically, insert
and press an eject-bar inside the emergency eject hole to
manually eject the tray. A straightened paper clip with a
diameter of 1.2 mm (typical) can be used as an eject-bar.
