4. Lift up the front of the cover up and remove it from the system.
Installing the service access cover on a 7063-CR1 system
Learn how to install the service access cover on a rack-mounted IBM 7063-CR1 Hardware Management
Console system.
About this task
Attention: For safety, airflow purposes and thermal performance, the service access cover must be
installed and fully seated before you power on the system.
Procedure
1. Place the rear of the cover on the system. Pivot to front of the cover down until it rests on the system.
2. Slide the cover forwards until it latches into place as shown in Figure 68 on page 77.

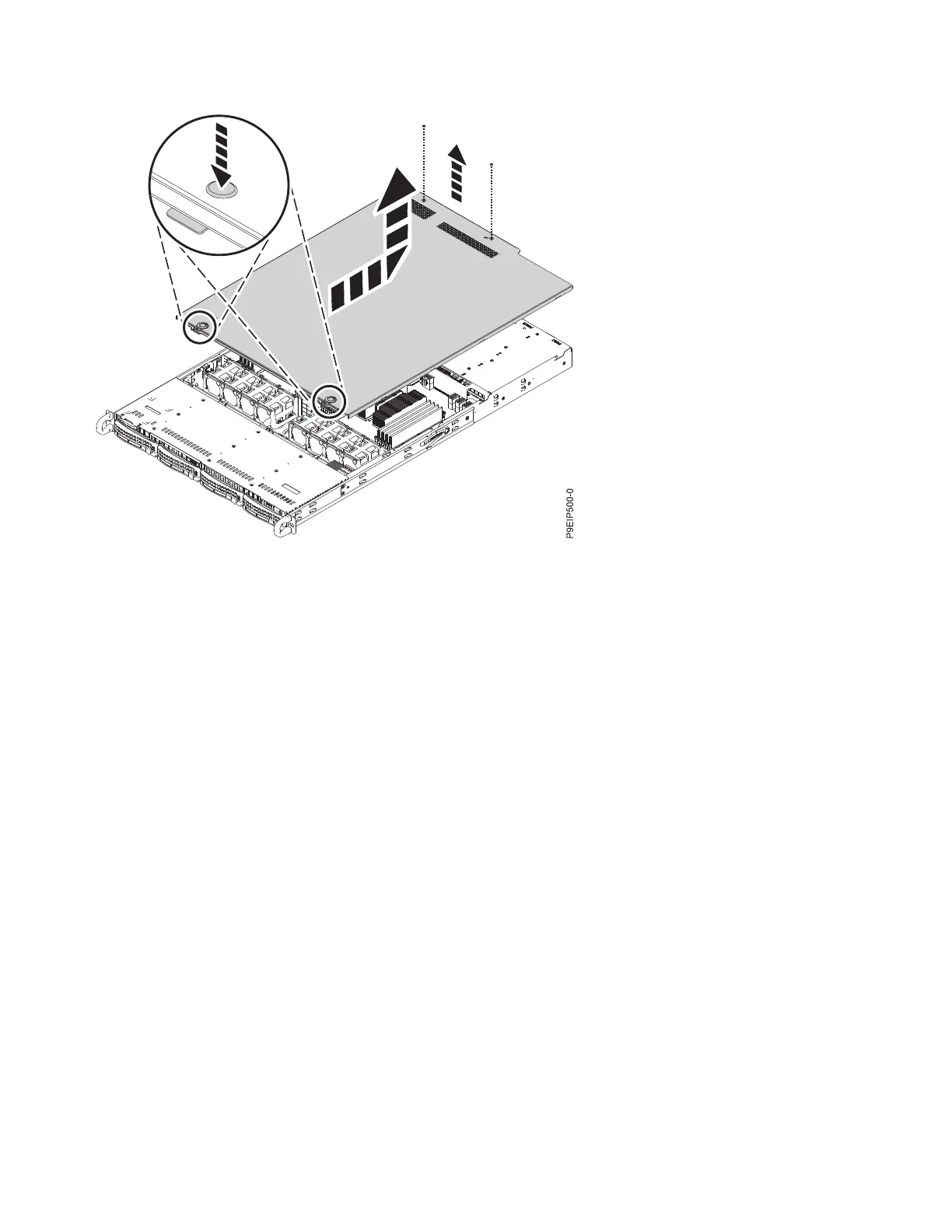

Figure 67. Releasing and opening the cover
76 Power Systems: Servicing the 7063-CR1 Hardware Management Console system

IBM Power Systems 7063-CR1 Specifications

General

Model	7063-CR1
Type	Server
Operating System	AIX, IBM i, Linux
RAID Levels	0, 1, 5, 6, 10
Memory Slots	16
Storage	SAS
Processor Cores	4 per processor
Disk Bays	8
Power Supply	Redundant
Form Factor	Rack-mountable
