11. Select the desired disk from the list on the screen and press Enter.

12. Remove the disk drive by placing the handle on the drive to the open position

(perpendicular to the drive) and pulling the hot-plug tray from the bay. The lit LED

on the disk drive will turn off when the disk drive is removed.

13. Press F10 to exit smitty.

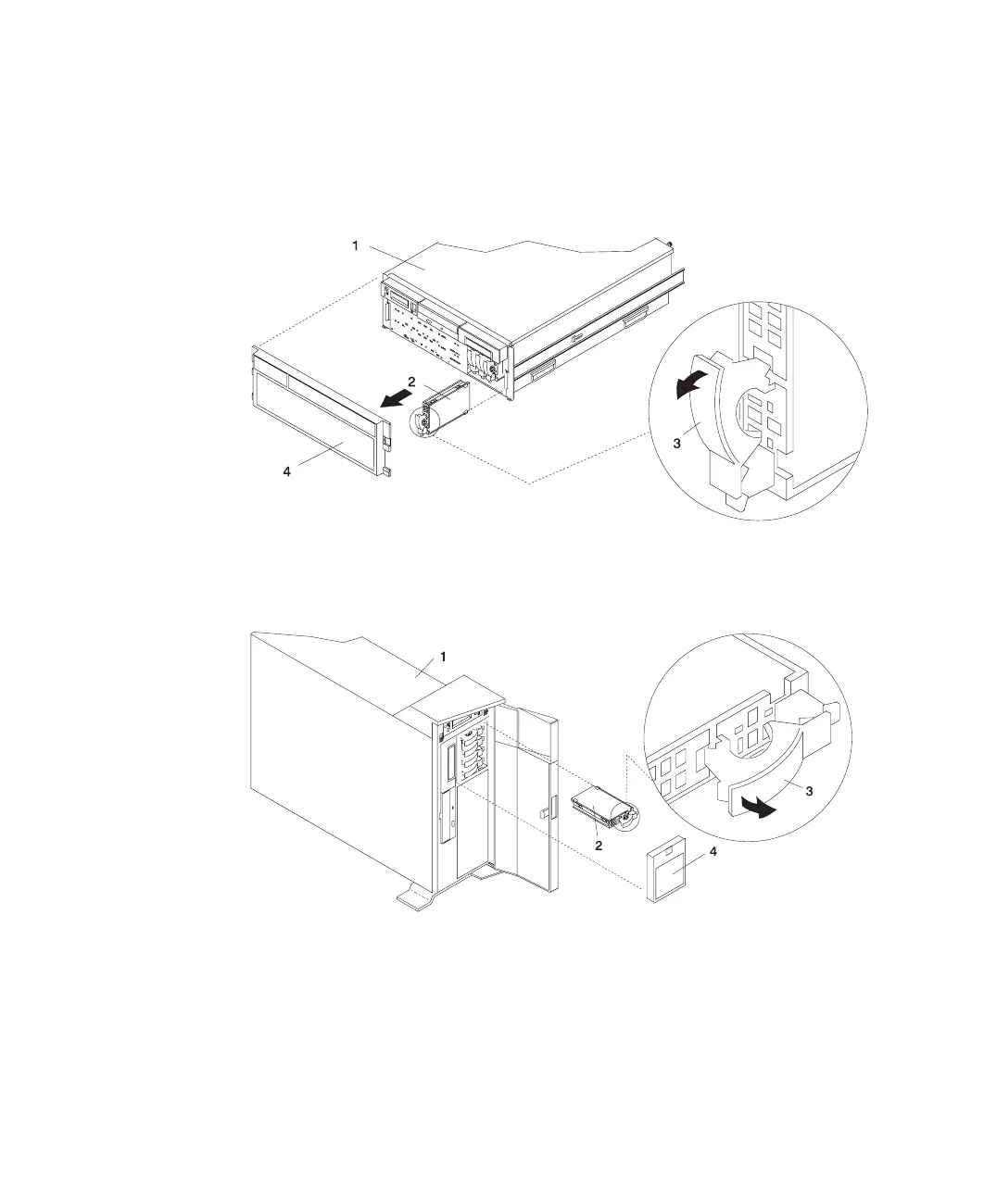

1 Model 6C4 3 Disk Drive Release Handle

2 Disk Drive 4 Front Bezel

1 Model 6E4 3 Disk Drive Release Handle

2 Disk Drive 4 Disk Drive Access Cover

106 Eserver

pSeries 630 Model 6C4 and Model 6E4 Installation Guide
