5. Tighten the screw to secure the rear hard disk drive kit to the chassis.
6. Lift the air duct and connect the mini-SAS HD (12Gb) and power cables to the
rear hot-swap backplane.
2.5-inch hot-swap
rear hard disk
drive kit
PCI riser-card
assembly 3
1
2

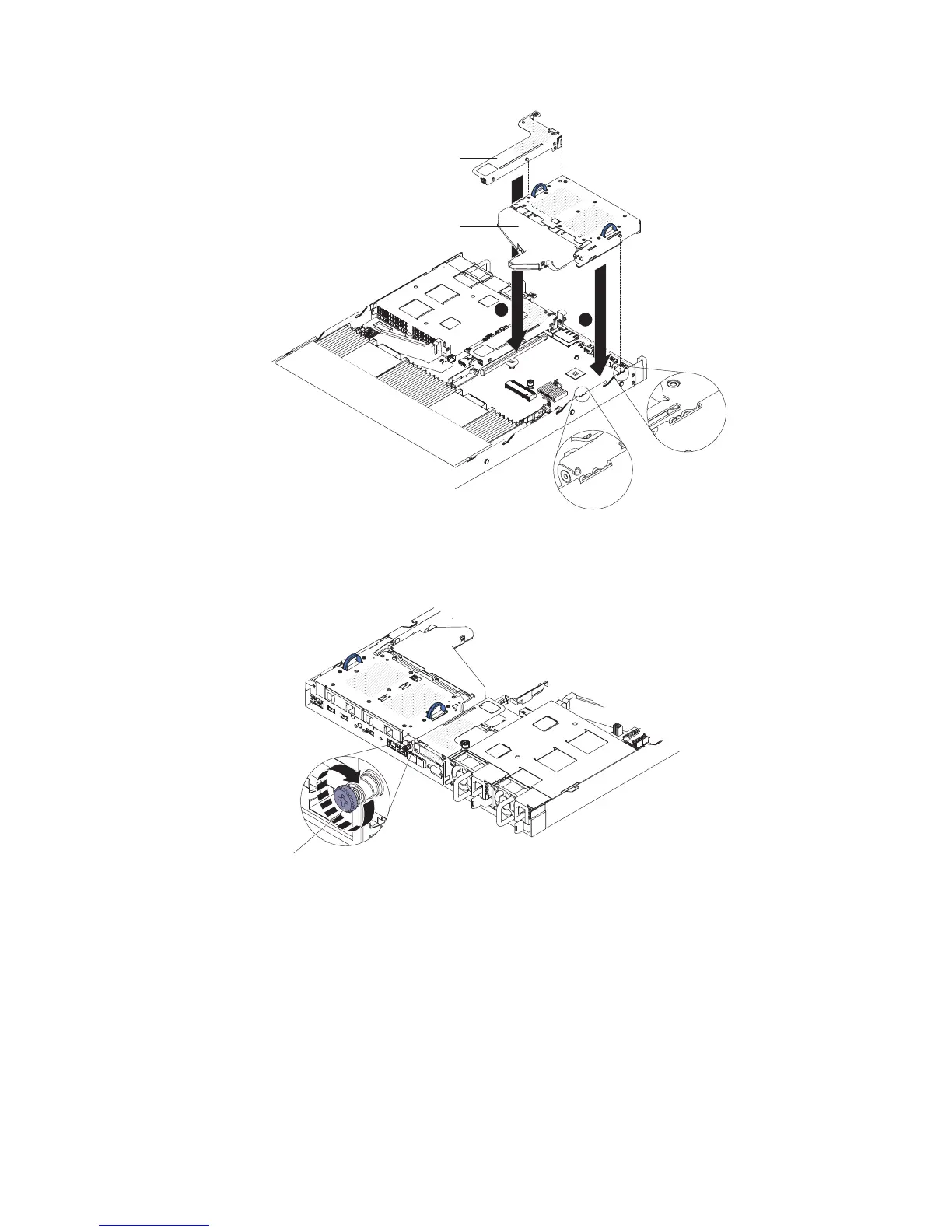

Figure 63. 2.5-inch hot-swap rear hard disk drive kit installation
Screw
Figure 64. Screw location
Chapter 5. Removing and replacing components 151
