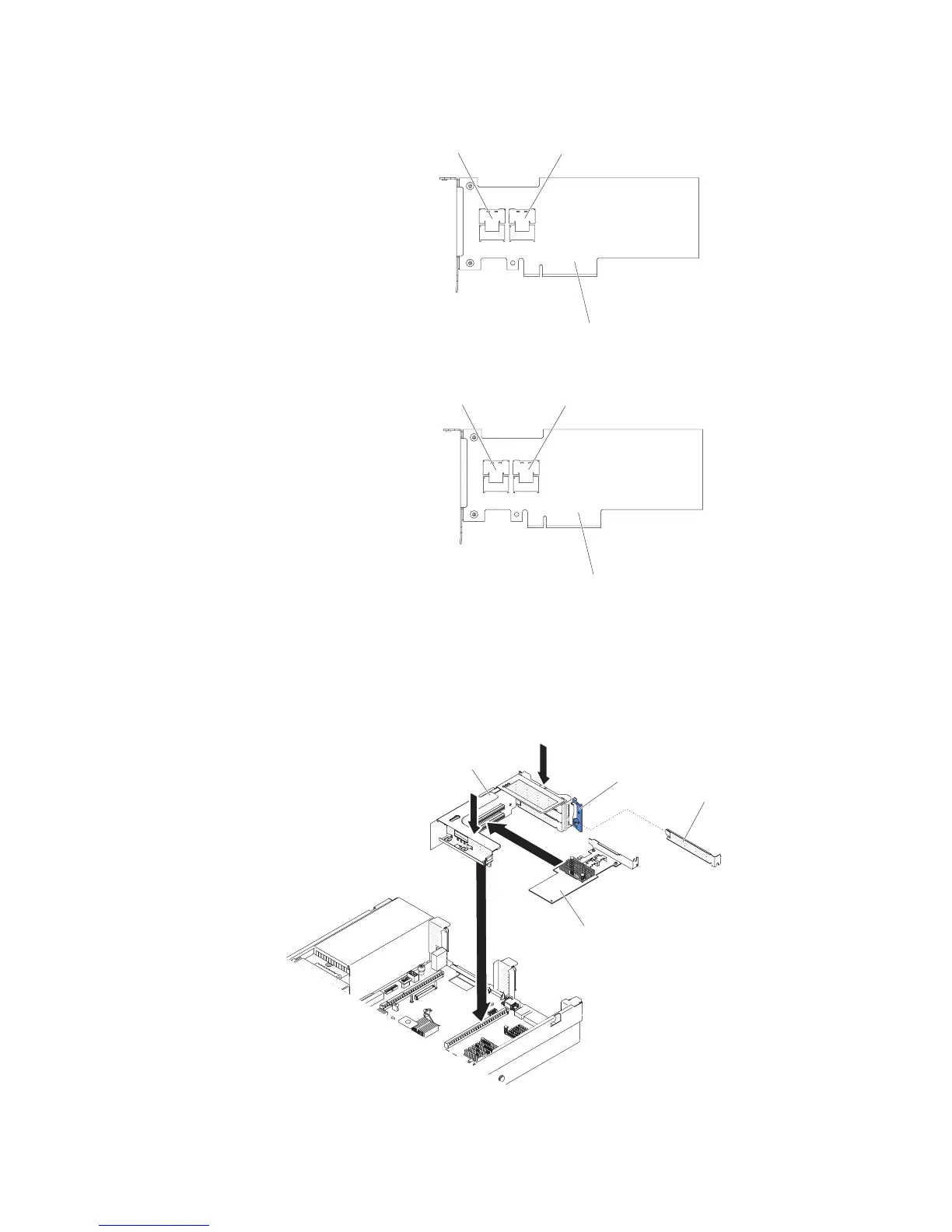

RAID adapter
Connector for
drive bays 8-11
signal cable
Connector for
drive bays 12-15
signal cable
RAID adapter
Connector for
drive bays 8-11
signal cable
Connector for
drive bays 12-15
signal cable
a. Connect a SAS signal cable that comes with the option kit to the RAID
adapter connector for drive bays 8-11.
b. Connect another SAS signal cable to the other SAS connector for drive
bays 12-15.
11. Align and install the PCI riser-card assembly in the server (see “Installing a
PCI riser-card assembly” on page 56).
Adapter
Expansion-slot
cover
Bracket
PCI riser-card
assembly
12. Route the cables underneath the cable retention (taking the RAID adapter, part
number 46M0912, as an example).
76 System x3650 M4 Type 7915: Installation and User’s Guide
