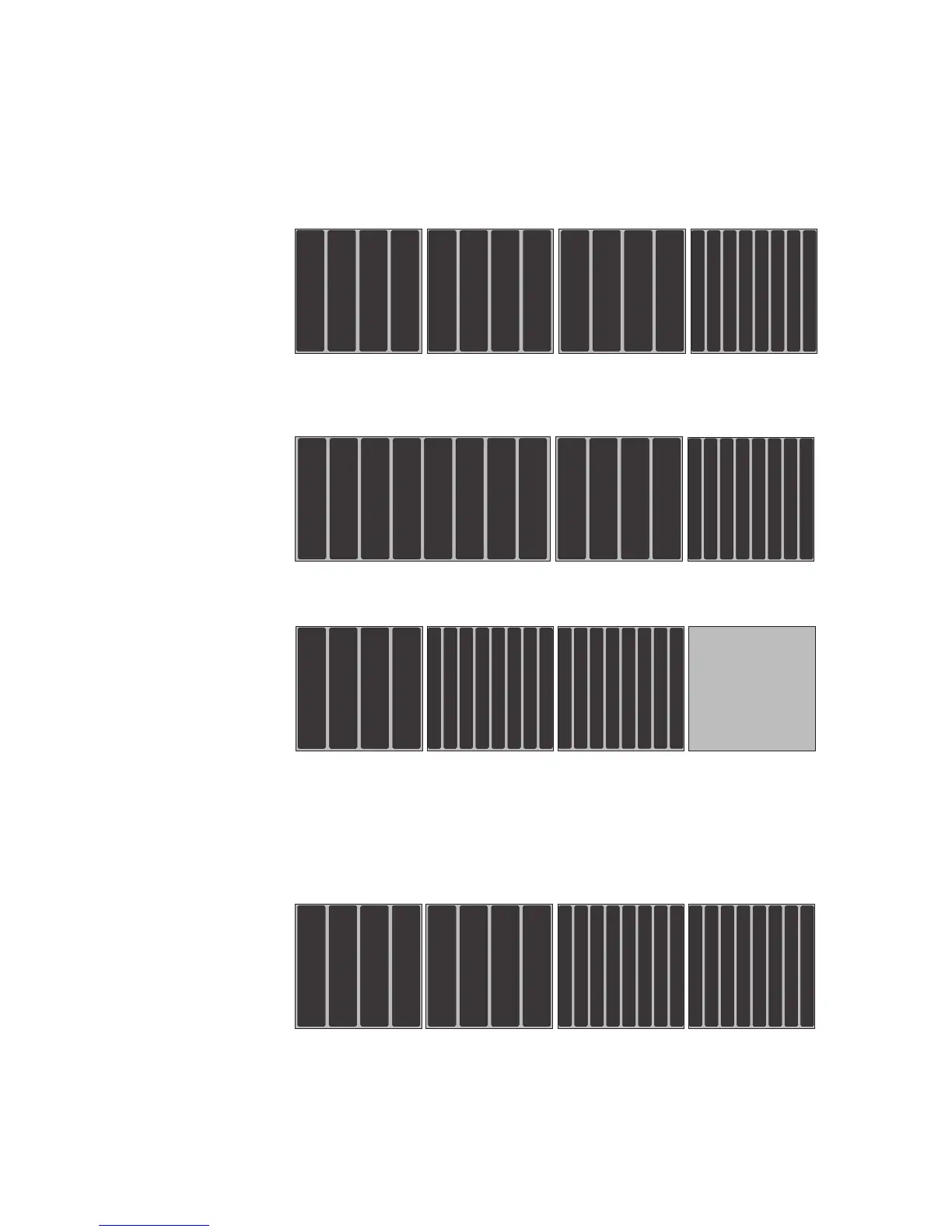

Backplane configurations for 20 drives

The following illustrations show the supported drive backplane configurations to

support 20 drives.

This configuration consists of three 4x2.5-inch drive backplanes and one

8x1.8-inch drive backplane and requires five SAS signal cables.

8 9 10 11

0123 4567

2.5” HDD/SSD

24 272625 28 29

1.8” SSD

30 31

This configuration consists of one 8x2.5-inch drive backplane, one 4x2.5-inch

drive backplane, and one 8x1.8-inch drive backplane and requires five SAS

signal cables.

8 9 10 11

01234567

2.5” HDD/SSD

24 272625 28 29

1.8” SSD

30 31

This configuration consists of one 4x2.5-inch drive backplane and two

8x1.8-inch drive backplanes and requires five SAS signal cables.

2.5” HDD/SSD

0123

Empty

2.5” HDD/SSD

16 191817 20 21

1.8” SSD

22 23

8 9 10 15

1.8” SSD

1112 13 14

Backplane configurations for 24 drives

The following illustrations show the supported backplane configurations to

support 24 drives.

This configuration consists of two 4x2.5-inch drive backplanes and two

8x1.8-inch drive backplanes and requires six SAS signal cables.

2.5” HDD/SSD

4567

2.5” HDD/SSD

0123

2.5” HDD/SSD

16 191817 20 21

1.8” SSD

22 23

24 272625 28 29

1.8” SSD

30 31

This configuration consists of one 8x2.5-inch drive backplane and two

8x1.8-inch drive backplanes and requires six SAS signal cables.

Chapter 2. Installing optional devices 59
