Removing the IBM Dual-port 10Gb-T (copper) Ethernet Adapter
or the IBM Dual-port 10Gb SFP+ (fibre) Ethernet Adapter
This information provides instructions on how to remove the IBM Dual-port
10Gb-T (copper) Ethernet Adapter or the IBM Dual-port 10Gb SFP+ (fibre) Ethernet
Adapter.
About this task
To remove the IBM Dual-port 10Gb SFP+ (fibre) Ethernet Adapter or the IBM
Dual-port 10Gb-T (copper) Ethernet Adapter, complete the following steps:
Procedure
1. Read the safety information and installation guidelines, see “Safety” on page vii
and “Installation guidelines” on page 35.
2. Turn off the server (see “Turning off the server” on page 22) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Remove the top cover (see “Removing the server top cover” on page 226).

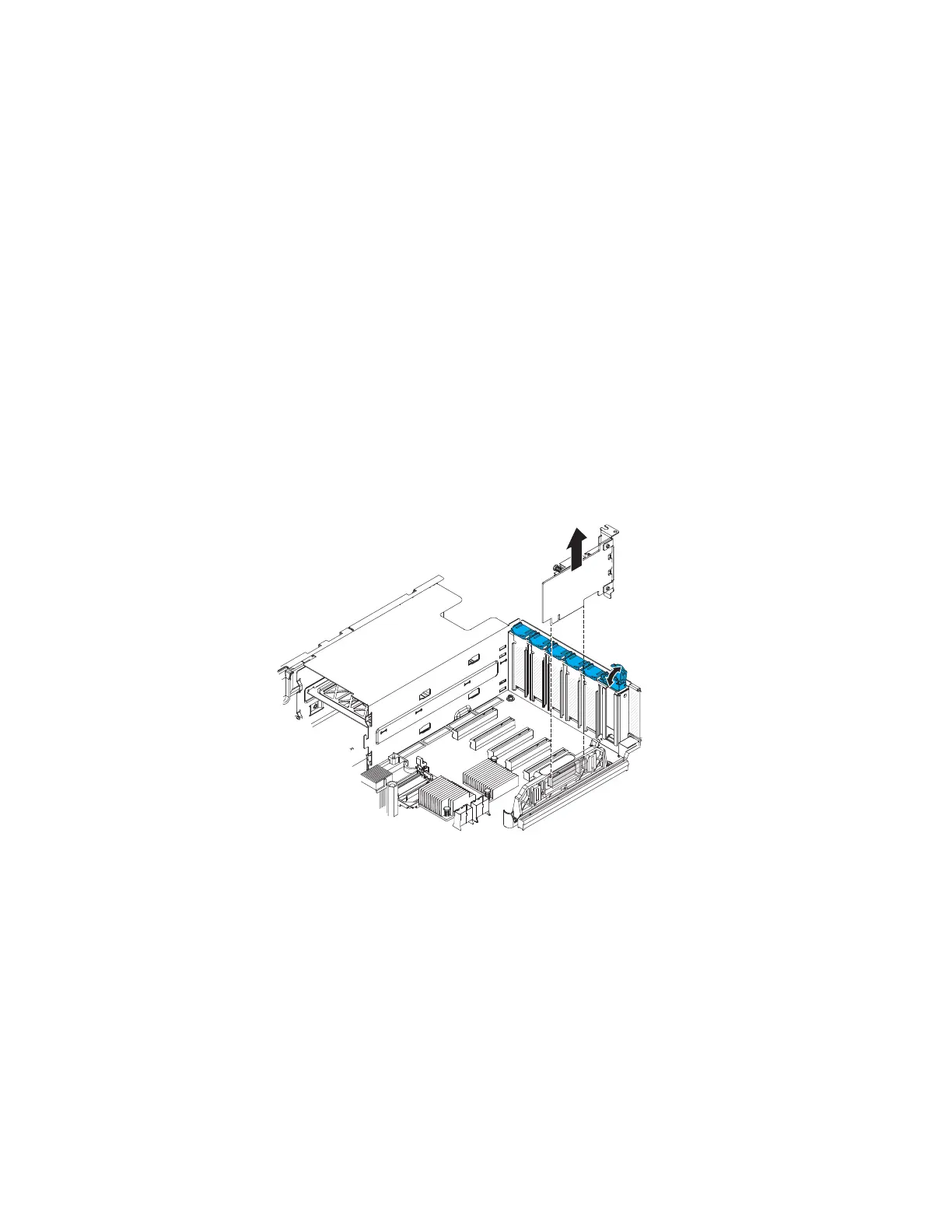

4. Open the adapter retention latch.
5. Carefully grasp the adapter and pull it out of the connector on the system
board.
6. If you are instructed to return the adapter, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
272 System x3750 M4 Types 8722 and 8733: Installation and Service Guide
