Installing a PCI riser-card assembly
To install a PCI riser-card assembly, complete the following steps.
Note: The illustrations in this document might differ slightly from your hardware.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 36.
2. Make sure that the server and all peripheral devices are turned off and that the
power cords and all external cables are disconnected.
3. Reinstall any adapters and reconnect any internal cables that you removed in
other procedures.

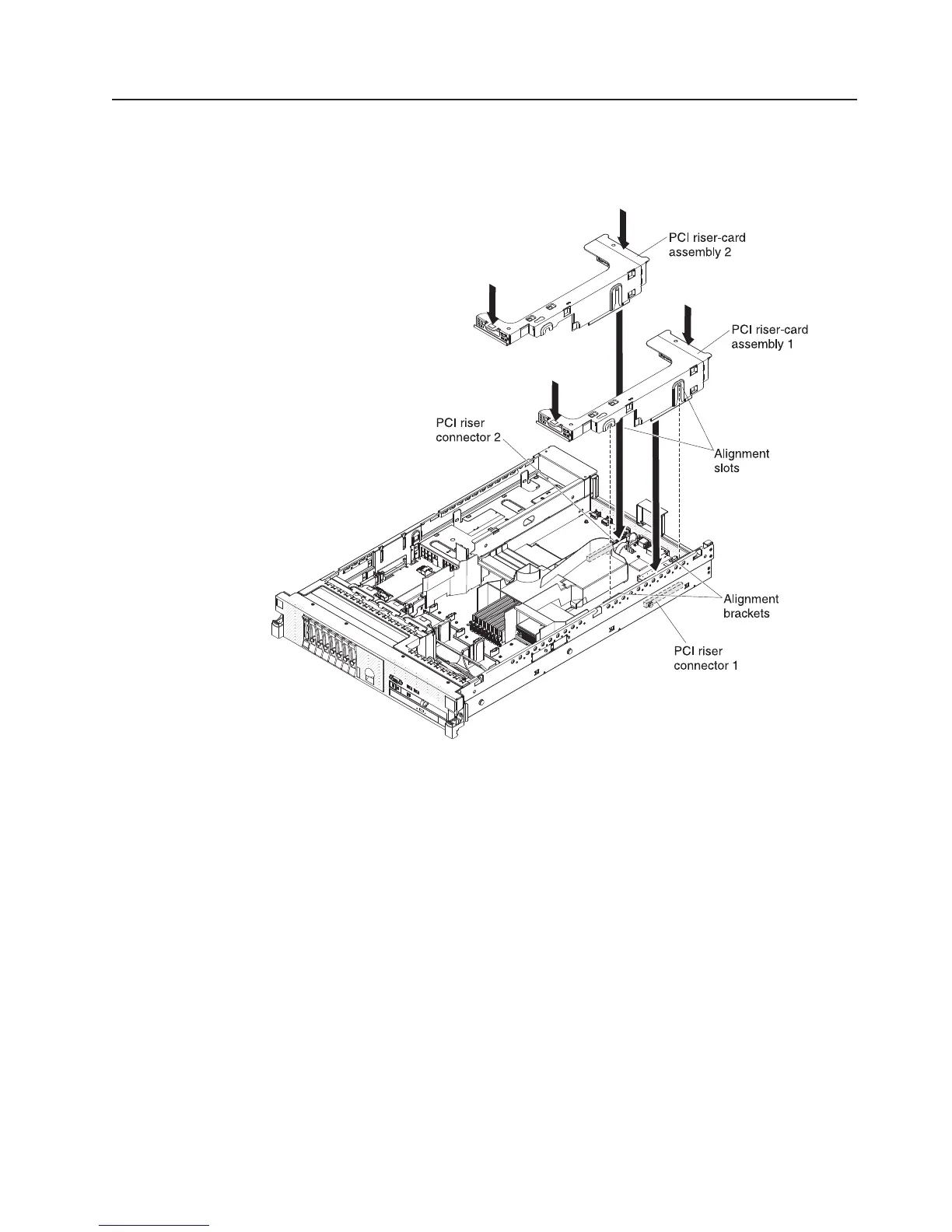

4. Align the PCI riser-card assembly with the selected PCI riser connector on the
system board:
v PCI riser connector 1: Carefully fit the two alignment slots on the side of the
assembly onto the two alignment brackets in the side of the chassis.
v PCI riser connector 2: Carefully align the bottom edge (the contact edge) of
the riser-card assembly with the PCI riser connector on the system board.
5. Press down on the assembly. Make sure that the riser-card assembly is fully
seated in the riser-card connector on the system board.
If you have other devices to install, do so now. Otherwise, go to “Completing the
installation” on page 106.
Chapter 2. Installing optional devices 45
