v PCI riser connector 1: Carefully fit the two alignment slots on the side of the
assembly onto the two alignment brackets in the side of the chassis; align
the rear of the assembly with the guides on the rear of the server.
v PCI riser connector 2: Carefully align the bottom edge (the contact edge) of
the riser-card assembly with the PCI riser-card connector on the system
board; align the rear of the assembly with the guides on the rear of the
server.
10. Press down on the assembly. Make sure that the riser-card assembly is fully
seated in the PCI riser-card connector on the system board.
11. Perform any configuration tasks that are required for the adapter.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 106.
Removing a PCI adapter

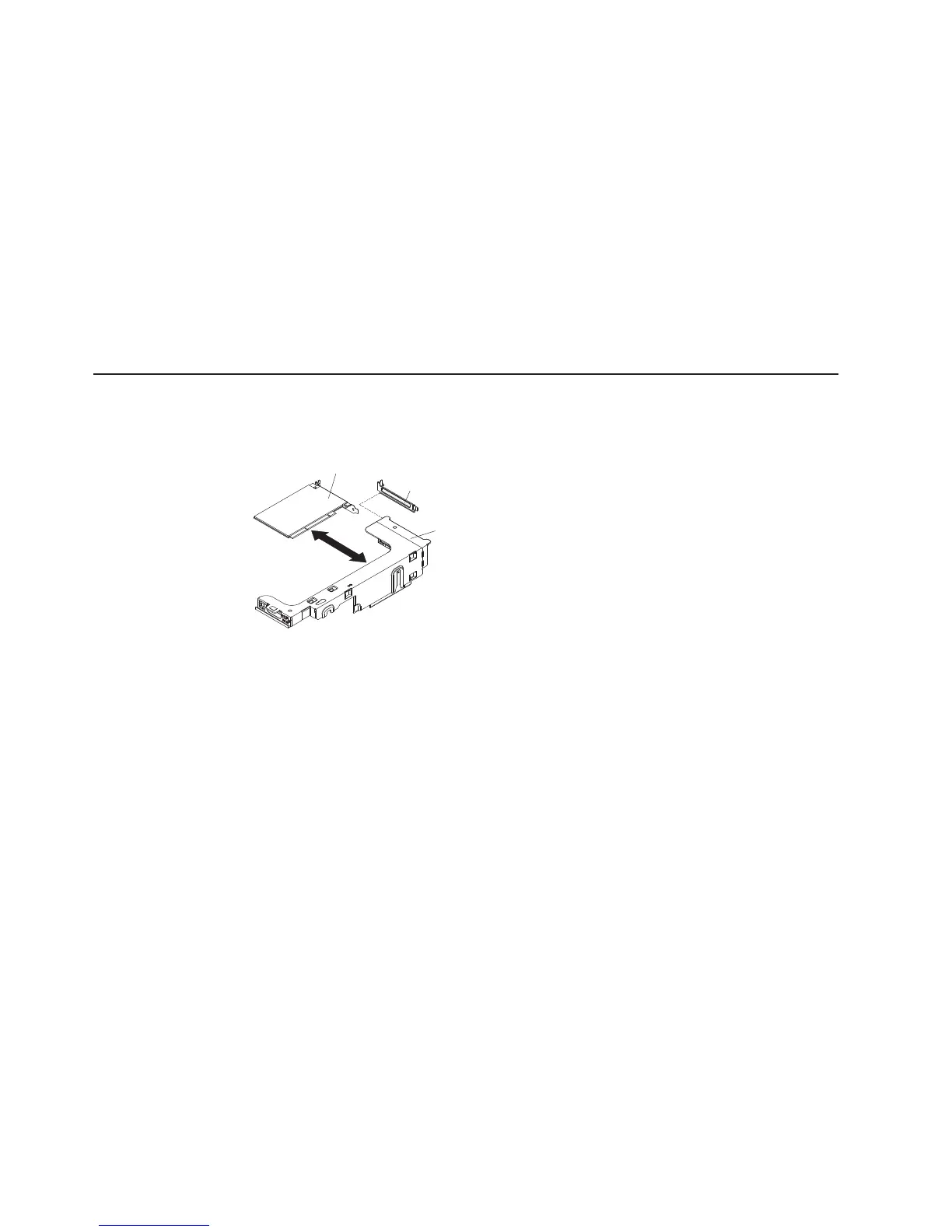

To remove an adapter from a PCI riser-card assembly, complete the following steps.
PCI
riser-card
assembly
Expansion-slot
cover
Adapter
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 36.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables (see “Turning off the server” on page 21).
3. Press down on the left and right side rack latches and slide the server out of the
rack enclosure until both slide rails lock; then, remove the cover (see “Removing
the cover” on page 43).
54 System x3650 M2 Type 7947: Installation and User’s Guide
