If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 106.
Installing a SAS/SATA 4 Pac HDD option
If the server is a 12-drive-capable model with eight hard disk drive bays installed,
you can install an IBM System x3650 M2 Hot-swap SAS/SATA 4 Pac HDD option.
See http://www.ibm.com/servers/eserver/serverproven/compat/us/ for a list of
supported optional devices. To order a SAS/SATA 4 Pac HDD option, contact your
IBM marketing representative or authorized reseller.
The SAS/SATA 4 Pac HDD option kit contains the following components:
v One 2.5-inch hard disk drive backplane
v Two SAS signal cables (one cable has a right-angle connector)
v One internal power cable
v One SAS expander card
v Four hard disk drive bay filler panels
v SAS controller front retention bracket
v Remote battery cable, interposer card, and screw
To install a 4-disk-drive optional expansion device in a 12-drive-capable server
model, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 36.
2. Turn off the server and disconnect all power cords and external cables (see
“Turning off the server” on page 21).
3. Remove the server cover (see “Removing the cover” on page 43).

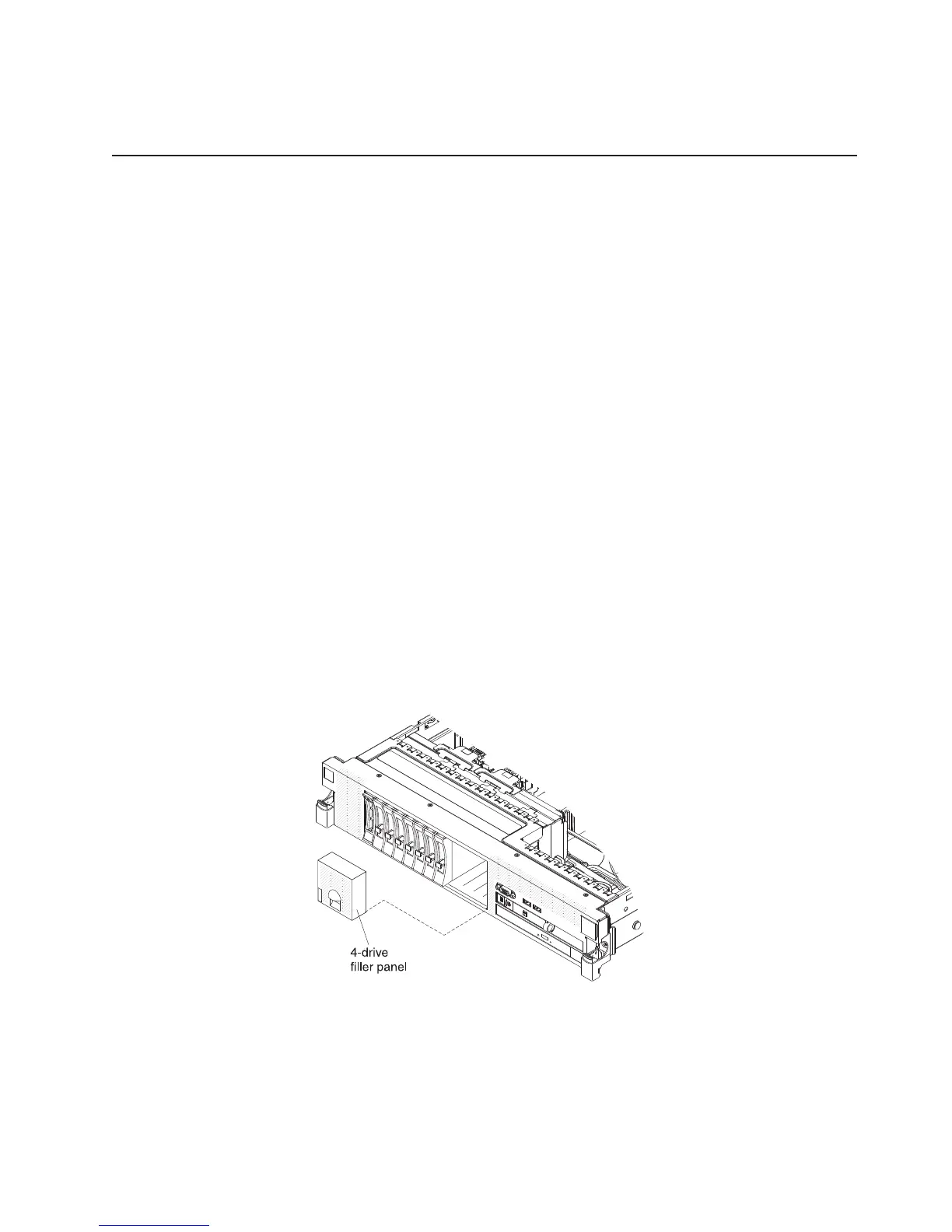

4. Remove the 4-drive filler panel that is to the right of drive bay 8, beneath the
IDs8-11onthefront bezel.
5. To obtain more working room, remove fans 2 and 3 (see “Removing a
hot-swap fan” on page 89).
6. Pull the hard disk drives or fillers out of the server slightly to disengage them
from the backplanes. For more information, see“Removing a hard disk drive”
on page 58.
Chapter 2. Installing optional devices 63
