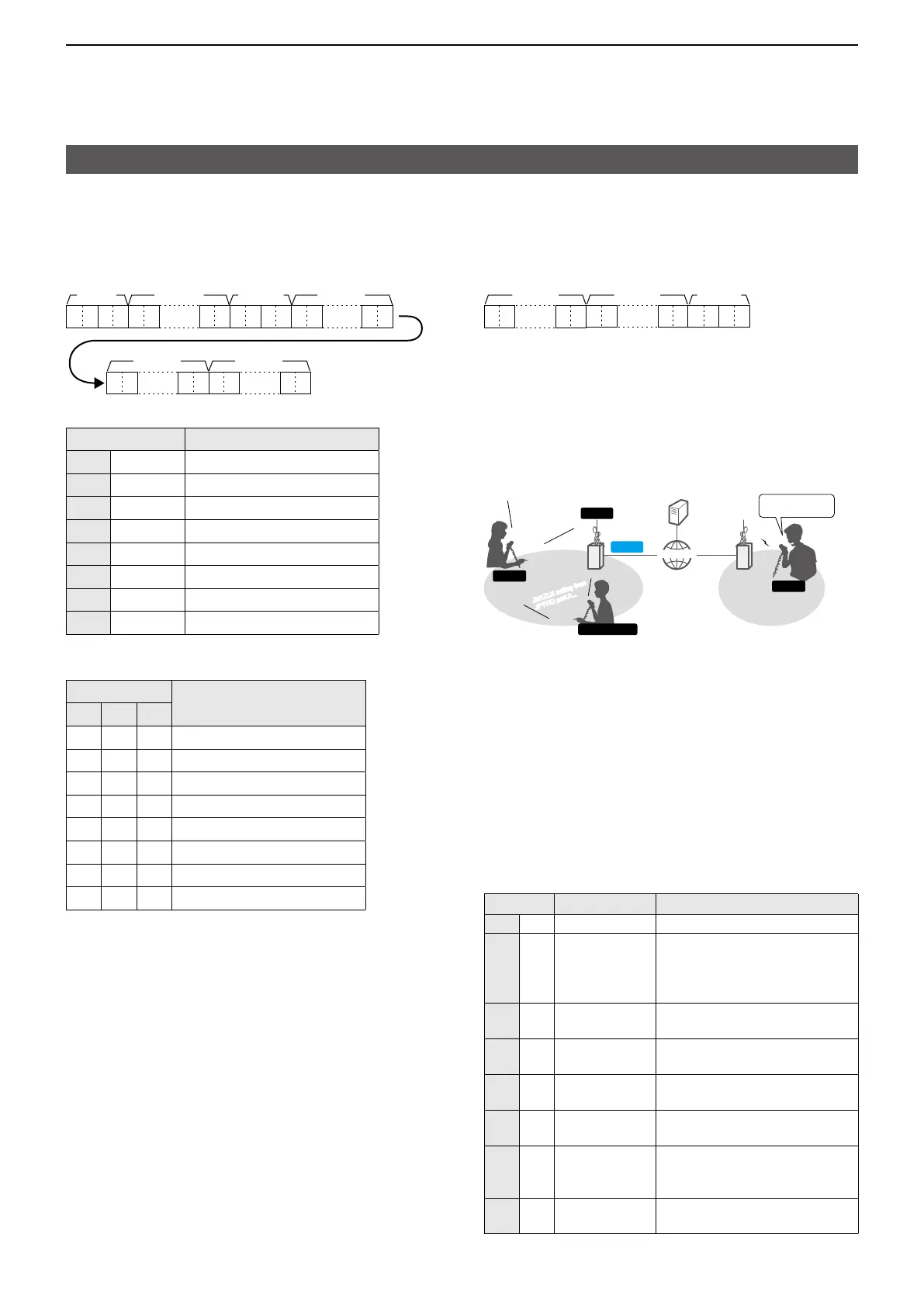

24
REMOTE CONTROL
Remote control (CI-V) information
D Command formats
• DV RX call sign data
Command: 20 00 01, 00 02
X X X X X XXX X X X X
∙∙∙∙∙∙
X XXX
∙∙∙∙∙∙
X X
∙∙∙∙∙∙
X X X X
∙∙∙∙∙∙
X X
1, 2 3 ~ ~ ~
~ ~
1: Header flag data (First byte)
Data Description
bit7 (0: Fixed) —
bit6 (0: Fixed) —
bit5 (0: Fixed) —
bit4 0/1 0=Voice, 1=Data
bit3 0/1 0=Direct, 1=Through repeater
bit2 0/1 0=No Break-in, 1=Break-in
bit1 0/1 0=Data, 1=Control
bit0 0/1 0=Normal, 1=EMR
2: Header flag data (Second byte)
Data
Description
bit2 bit1 bit0
1 1 1 Repeater control
1 1 0 Send auto acknowledge
1 0 1 (Not used)
1 0 0 Request to re-transmit
0 1 1 Send acknowledge
0 1 0 Receive no reply
0 0 1 Repeater disabled
0 0 0 NULL
3 ~ : Call sign of the caller station
(8 characters, fixed)
~ : Note of the caller station
(4 characters, fixed)
~ : Call sign of the called station
(8 characters, fixed)
~ :
Call sign of the access/area repeater (R1)
(8 characters, fixed)
~ :
Call sign of the link/gateway repeater (R2)
(8 characters, fixed)
See “Codes for character entries�” (p� 19)
L FF: When no call sign is received since the transceiver
power was turned ON�
• DV RX message
Command: 20 01 01, 01 02
X X X XXX X X
∙∙∙∙∙∙
X X
∙∙∙∙∙∙
X X
1 ~ ~ ~
1 ~ : Message (20 characters)
~ :
Call sign of the caller station (8 characters)
~ : Note of the caller station (4 characters)
See “Codes for character entries�” (p� 19)
L FF: When no call sign is received since the transceiver
power was turned ON�
Example: When a Gateway call is received
JM1ZLK calling from
JP1YIU port A...
JM1ZLK calling from
JP1YIU port A...
JM1ZLK calling from
JP1YIU port A...
JM1ZLK calling from
JP1YIU port A...
RXRPT2
RXRPT1
JM1ZLK calling from
JP1YIU port A...
JM1ZLK calling from
JP1YIU port A...
CALLER
GW
INTERNET
INTERNET
CALLED
YOUR STATION
CALLER: Caller’s call sign
CALLED: Called station call sign
RXRPT1: Call sign of the repeater that was accessed
by the caller station
L If it was a call through a gateway and the
internet, this item displays the gateway
call sign of the repeater you received the
call from�
RXRPT2: Call sign of the repeater you received the
call from
• DV RX Status setting
Command: 20 02 01, 02 02
Data Function Description
bit7 0 (Fixed) —
bit6 0/1
Receiving a
voice call
While receiving a digital voice
signal, select “1�”
( Regardless of DSQL and
CSQL setting)
bit5 0/1
Last call
finisher
When the last call was finished
by you, select “1�”
bit4 0/1
Receiving a
signal
When the audio tone can be
heard, select “1�”
bit3 0/1
Receiving a
BK call
While receiving a BK call,
select “1�”
bit2 0/1
Receiving a
EMR call
While receiving a EMR call,
select “1�”
bit1 0/1
Receiving a
signal other
than DV
When “DV” and “FM” are
blinking, select “1�”
bit0 0/1
Packet loss
status
While displaying packet loss,
“1” is returned�
To Next Page
