■ Installing the MBA-7/MBF-1 on a flat surface
1. Clean the surface where the MBF-1 is attached to.
LTo install the MBF-1, approximately 90 mm
2
of at surface is necessary.

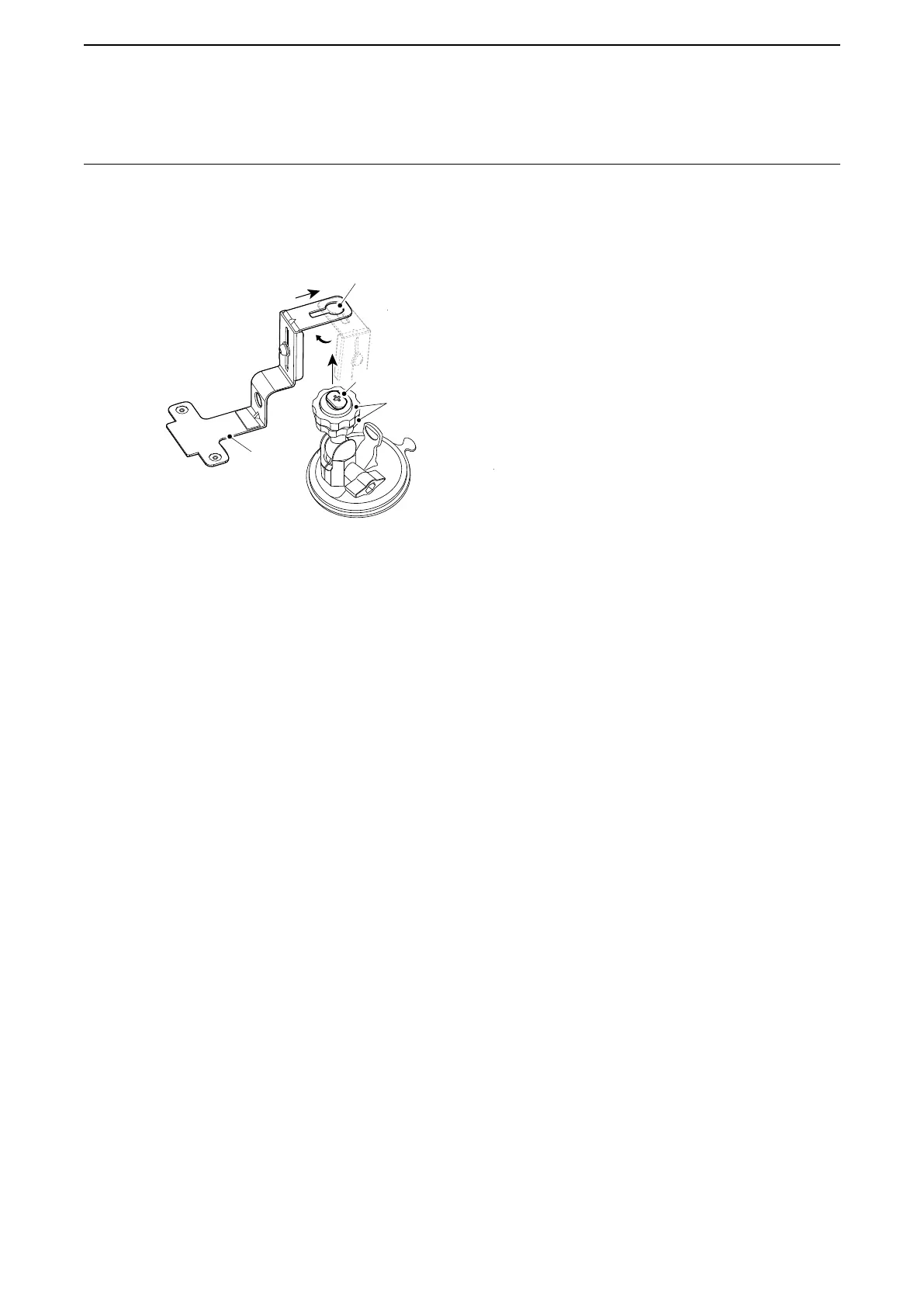

2. Attach the MBA-7 to the MBF-1.
Locking headLocking head
Slot
Holder
Lock knob
Turn the Holder so the slot can be placed over the locking head.
Turn the holder back forward, and slide the slot's guide under the MBF-1's locking head.
Move the holder left or right to
the best viewing position,
then tighten the lock knob.
MBF-1
MBA-7
w
e
q
Loosen the lock knob
