■ Specifications
D General
• Frequency coverage : 161.975, 162.025 MHz (default)
156.025–162.025 MHz
• Type of emission :
16K0GXW (GMSK)
• Current drain (at 12 V nominal) : TX: 1.5 A, RX: 0.7 A
• Power supply requirement : 9.6 to 15.6 V DC
(negative ground)
• Operating temperature range :
–20°C to +60°C; –4°F to +140°F
• Antenna impedance : 50 ø nominal
• Intermediate frequency
AIS1 :
1st: 21.700 MHz, 2nd: 450 kHz
AIS2 :
1st: 30.875 MHz, 2nd: 450 kHz
• Dimensions : 165(W) × 110(H) × 123(D) mm,
(Projections not included) 6.5(W) × 4.33(H) × 4.84 (D) in
• Weight : Approximately 1.0 kg; 2 lb 20 oz
• I/O connector : High-density D-sub 15 pin
D Transmitter
• Output power : 2 W
• Modulation system : GMSK
•
Conducted
Spurious emissions : Less than –36 dBm
D Receiver
• Sensitivity (20% Packet Error Rate) : –110 dBm
• Intermodulation rejection ratio : More than 65 dB
•
Spurious response rejection ratio
: More than 74 dB (AIS)
More than 70 dB (DSC)
• Adjacent channel selectivity : More than 70 dB
•
Conducted spurious emission
: Less than –57 dBm (AIS)
This equipment meets IEC 62287-1 specifications.

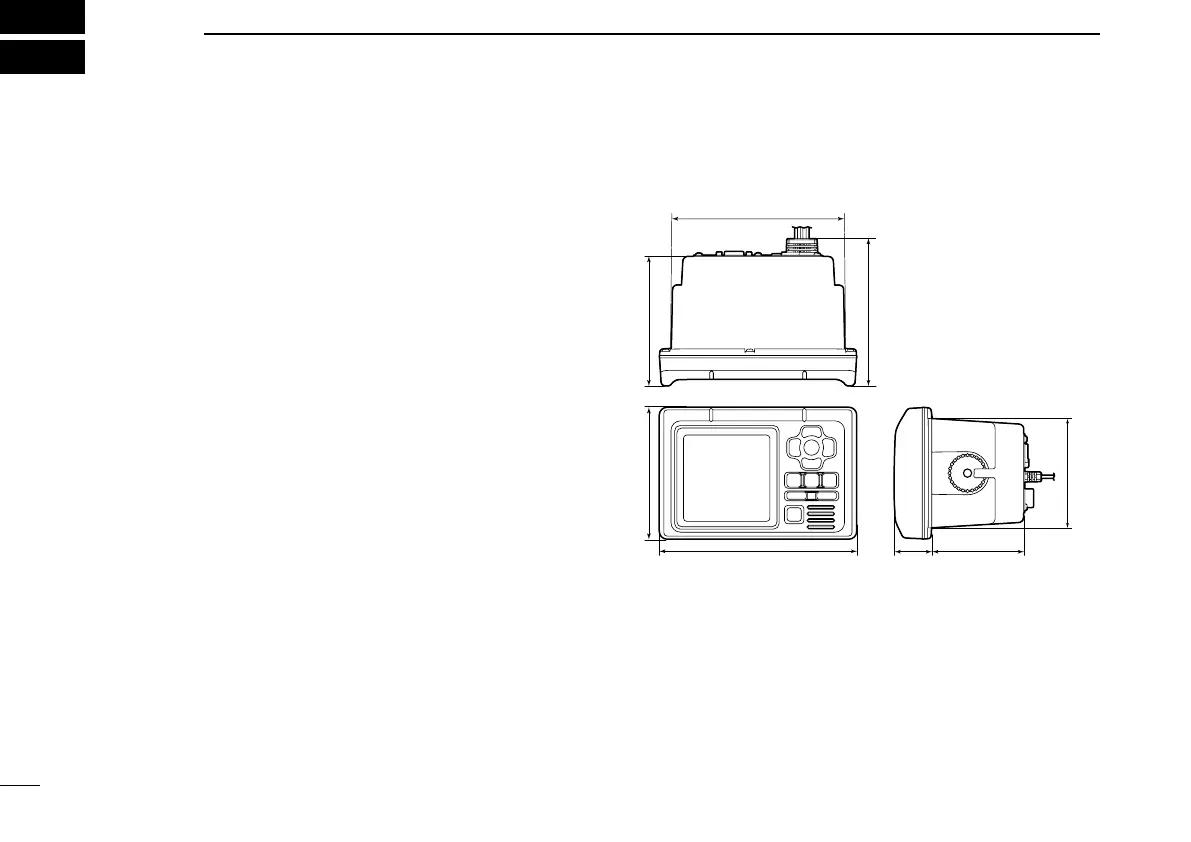

D Dimensions
Unit: mm (inch)
110 (4.33) 108.4 (4.27)
165 (6.5)
145 (5.71)
31.4
(1.24)
91.4 (3.6)
77 (3.03)
123 (4.84)
All stated specifications are subject to change without notice or obligation.
■ Option
• MB-75 f l u s h m o u n t k i t
Used to mount the transponder to a panel.
