User

Interface

Spark

Generator

X12

Gas Valve

Blower

CH1 Thermostat

ModBus

Outdoor Sensor

0-10V Input

CH2 Thermostat

Return

Temperature

Sensor

Flue

Temperature

Sensor

Diverter

Valve

Supply

Temperature

Sensor

Water

Pressure

Sensor

Manual Reset Limit

Auto Reset Limit

P13

6 3 1

DHW

Turbine

Electrode

Power

Supply

DHW

Pump

Flame

P14 4

1 X9 6 1

X10

1 6 X5 1 4 X6 1 3

X16

X15

X11

GND

DHW

Sensor

Pump

~2.5A

Output 110V

222496 A05

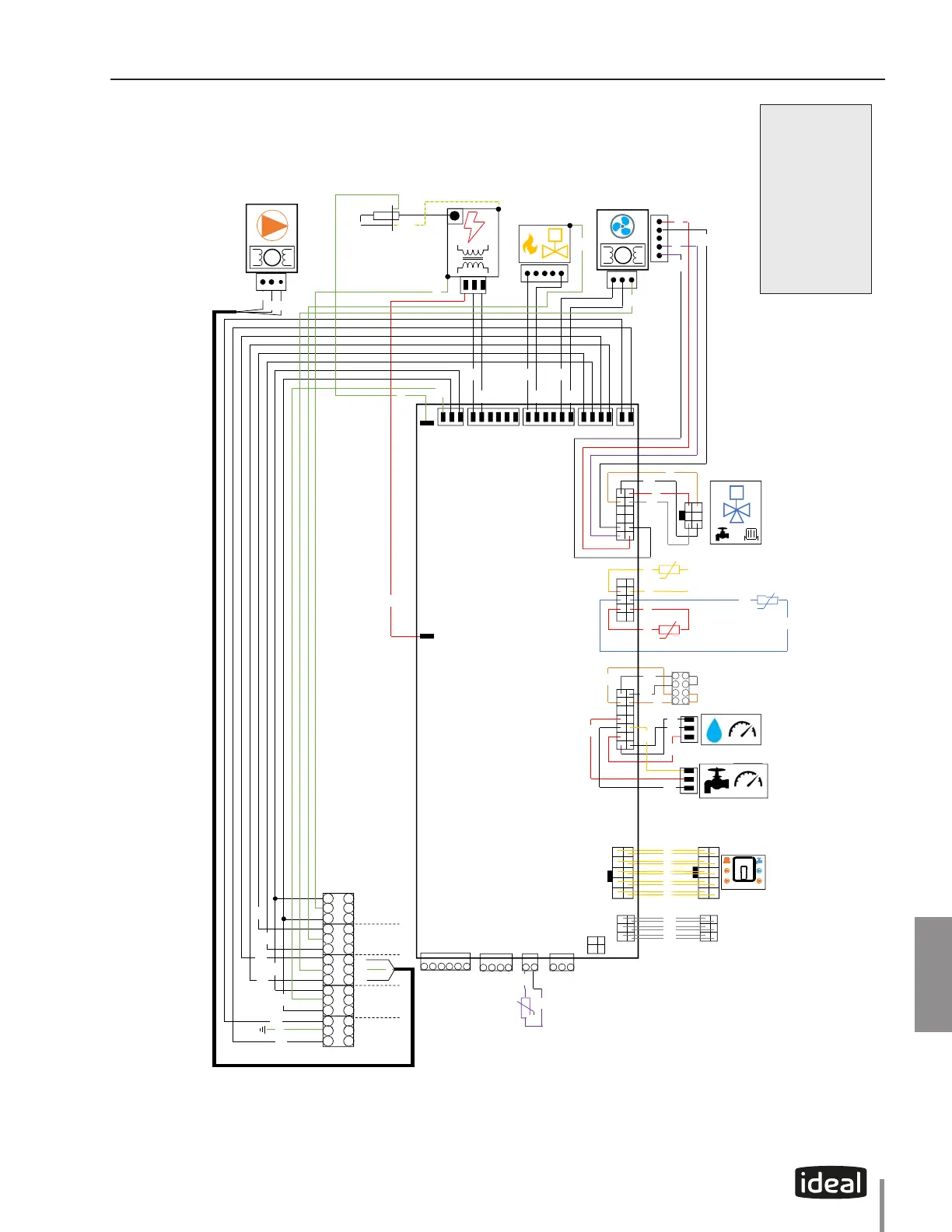

Combi Wiring Diagram

G/Y

CHAPTER 8

CHAPTER 8 - WIRING

Fig. 31 - EXALT Combi Boiler Factory Wiring

Key

W = White

BK = Black

R = Red

G= Green

O = Orange

Y = Yellow

BL = Blue

G/Y = Green / Yellow

GY = Grey

V = Violet
