IDEAL Vogue System Gen 2 S32 User Manual

13
Installation and Servicing
SECTION 1 - GENERAL
33.5 88.5 130.593.5 56.5 42.5
445
450
330
2.5
2.5
from case
740
Side flue
dim. A
Cond. Drain
CH Flow CH Return PRV Outlet Gas Inlet

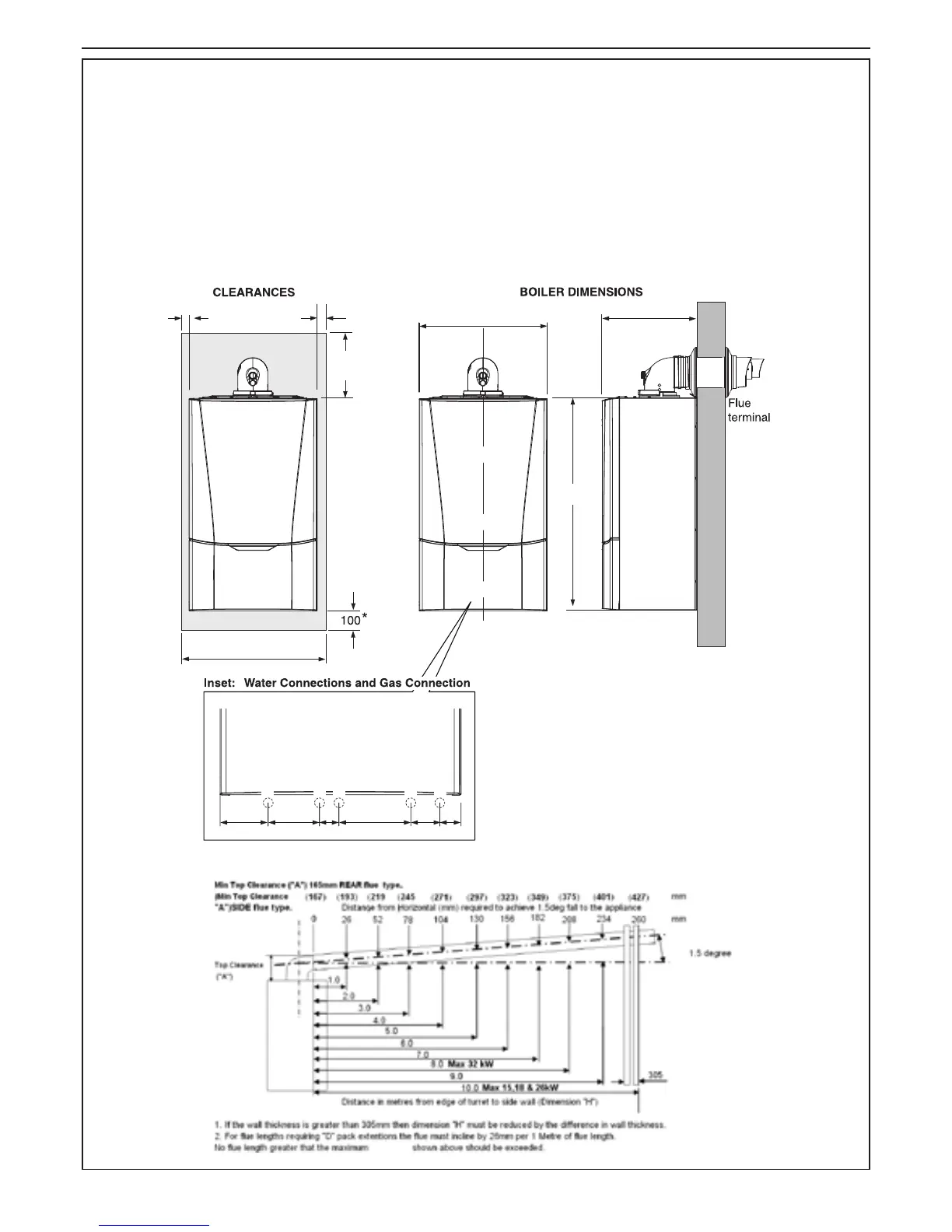

1.16 BOILER DIMENSIONS, SERVICES & CLEARANCES
all dimensions in mm
The boiler connections are made on the boiler connection tails.
Refer to Section 2.15.
The following minimum clearances must be maintained for
operation and servicing.
Additional space will be required for installation, depending
upon site conditions.
Side and Rear Flue
a. Provided that the ue hole is cut accurately, e.g. with a core
drill, the ue can be installed from inside the building where
wall thicknesses do not exceed 600mm. Where the space
Front clearance
The minimum front clearance when built in to a
cupboard is 5mm from the cupboard door but 450mm
overall clearance is still required, with the cupboard
door open, to allow for servicing.
* Bottom clearance
Bottom clearance after installation can be reduced
to 5mm.
This must be obtained with an easily removable
panel, to enable the consumer to access the
lling loop, and to provide the 100mm clearance
required for servicing.
into which the boiler is going to be installed is less than
the length of ue required the ue must be tted from the
outside.
Installation from inside ONLY
b. If a core boring tool is to be used inside the building the
space in which the boiler is to be installed must be at least
wide enough to accommodate the tool.
extensions
